1994 Kawasaki Vulcan 500 Footrests Diagram

← All diagrams

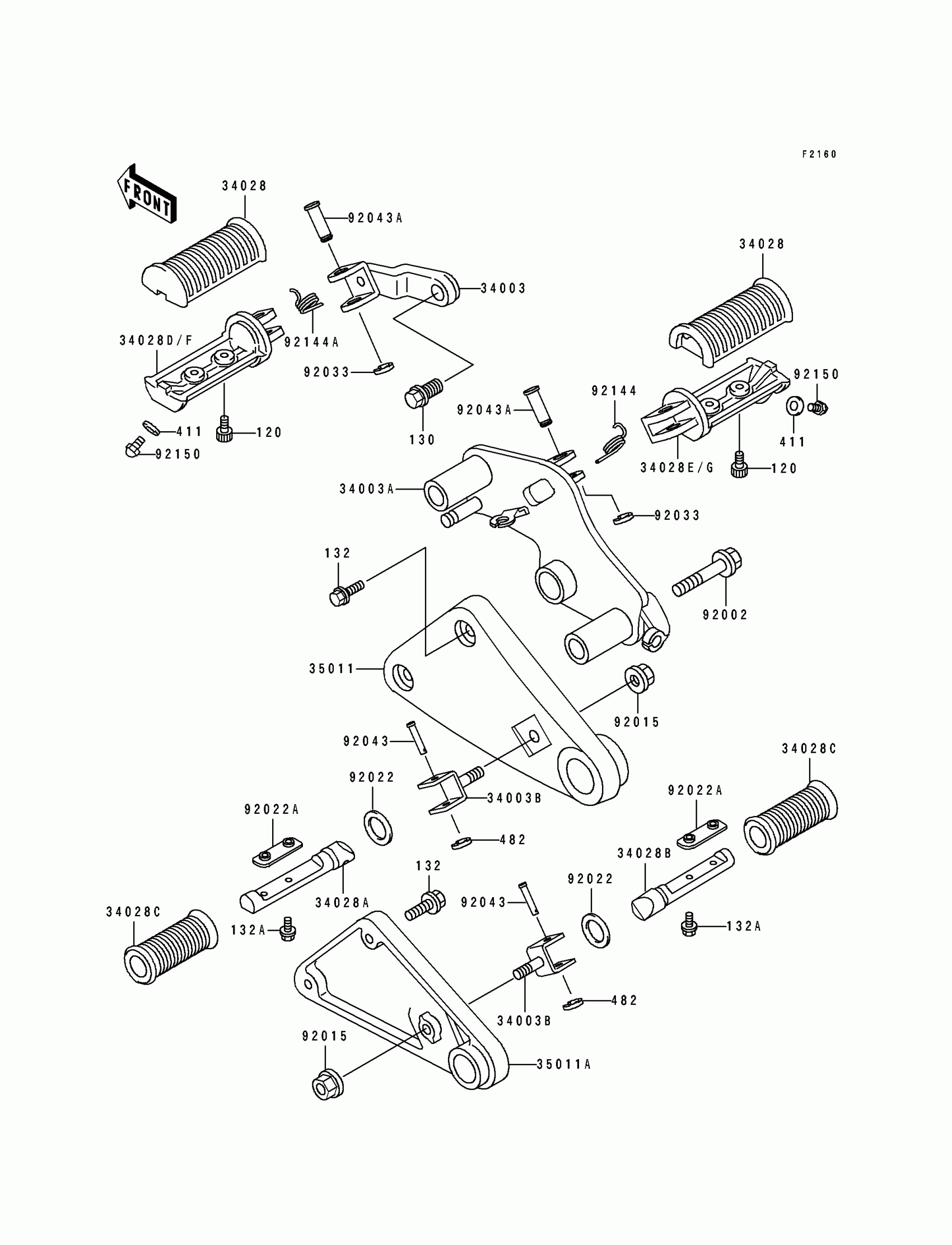

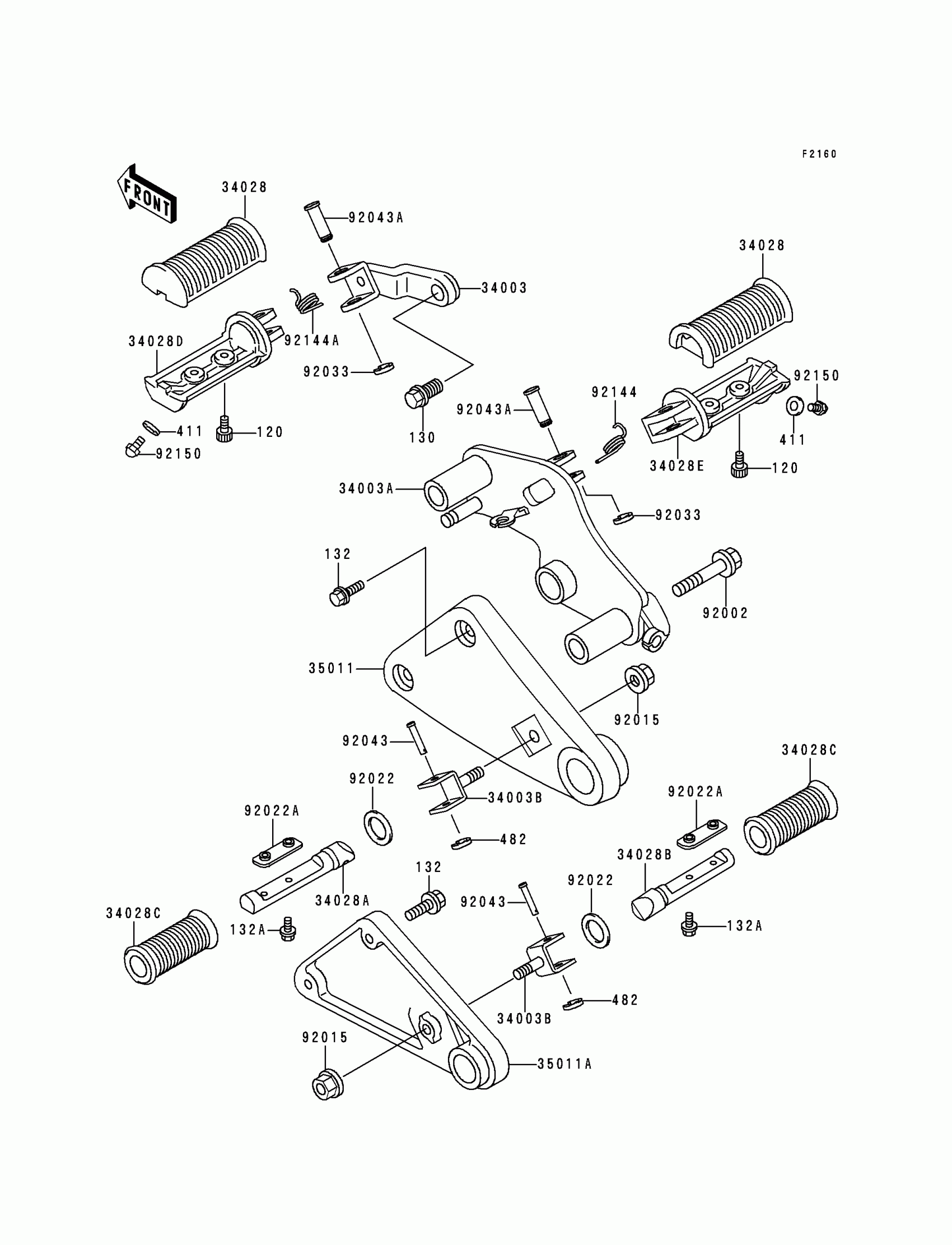

Find the part on the Footrests diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

130

BOLT-FLANGED

130J1230

1
Out of stock

132

1

$4.16

In stock

132A

BOLT-FLANGED-SMALL,5X10

132J0510

1
Out of stock

411

WASHER PLAIN

411F0600

1

$1.08

In stock

482

CIRCLIP-TYPE-E

482L7000

1

$3.12

In stock

34003

HOLDER-STEP,FR,LH

34003-1337

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1338

1

$134.86

In stock

34003B

HOLDER-STEP,RR

34003-1347

1
Out of stock

34028

STEP,FR,RUBBER

34028-1217

1

$23.19

In stock

34028A

STEP,RR,LH

34028-1219

1
Out of stock

34028B

STEP,RR,RH

34028-1220

1

$49.59

In stock

34028C

STEP,RR,RUBBER

34028-1221

1
Out of stock

34028D

STEP,FR,LH

34028-1245

1
Out of stock

34028E

STEP,FR,RH

34028-1246

1

$54.34

In stock

35011

STAY,REAR STEP,LH

35011-1523

1
Out of stock

35011A

STAY,REAR STEP,RH

35011-1524

1

$56.19

In stock

92002

1

$8.20

In stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

WASHER,20X30X2.3

92022-1568

1

$3.85

In stock

92022A

WASHER,STEP

92022-1874

1
Out of stock

92033

RING-SNAP,10MM

92033-1166

1

$3.10

In stock

92043

PIN,8X36.5

92043-1339

1

$7.71

In stock

92043A

PIN,12X37

92043-1358

1

$6.44

In stock

92144

SPRING,STEP RETURN

92144-1126

1

$4.88

In stock

92144A

SPRING,STEP RETURN

92144-1210

1
Out of stock

92150

BOLT,BANK SENSOR

92150-1114

1

$10.93

In stock
