1994 Kawasaki Vulcan 500 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

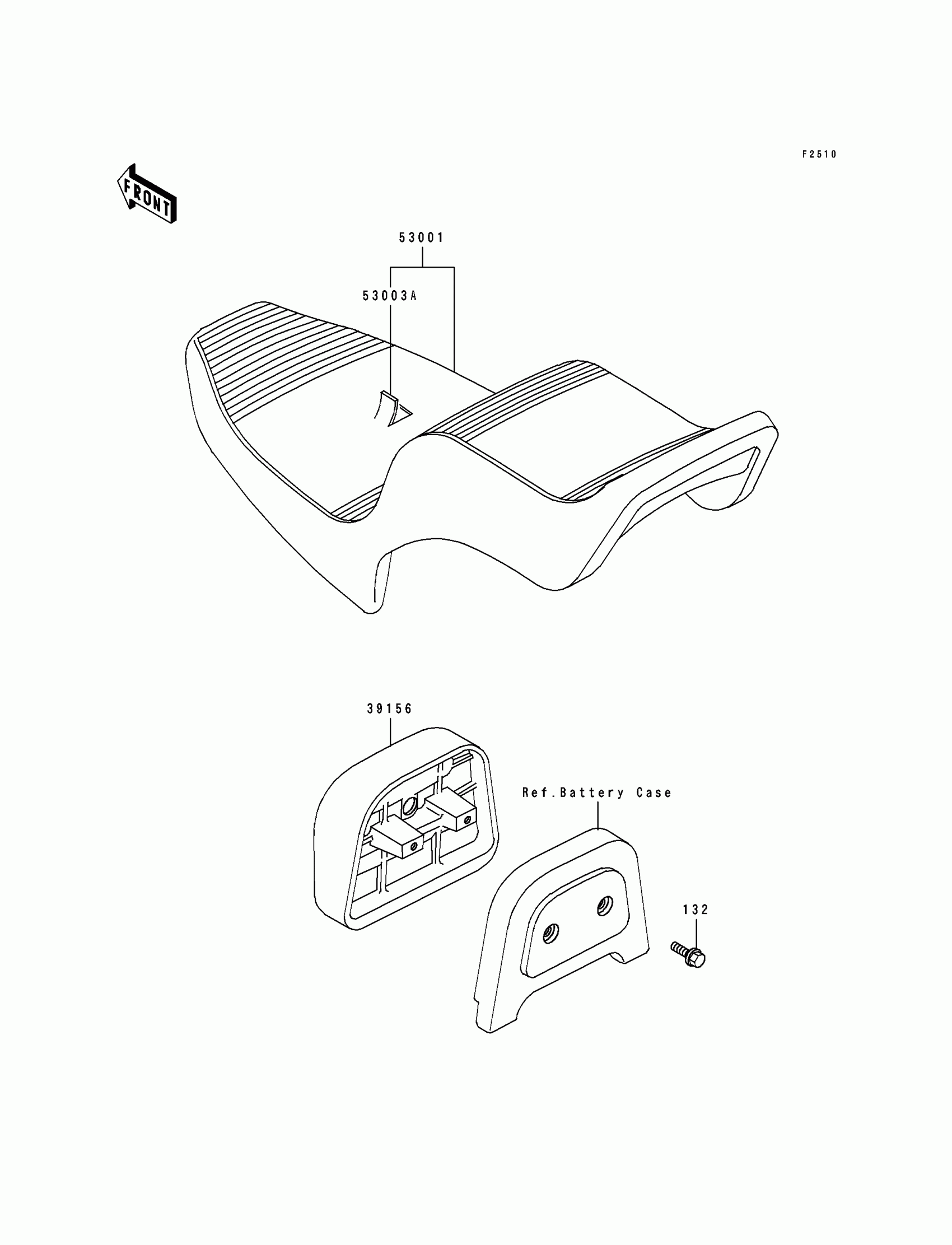

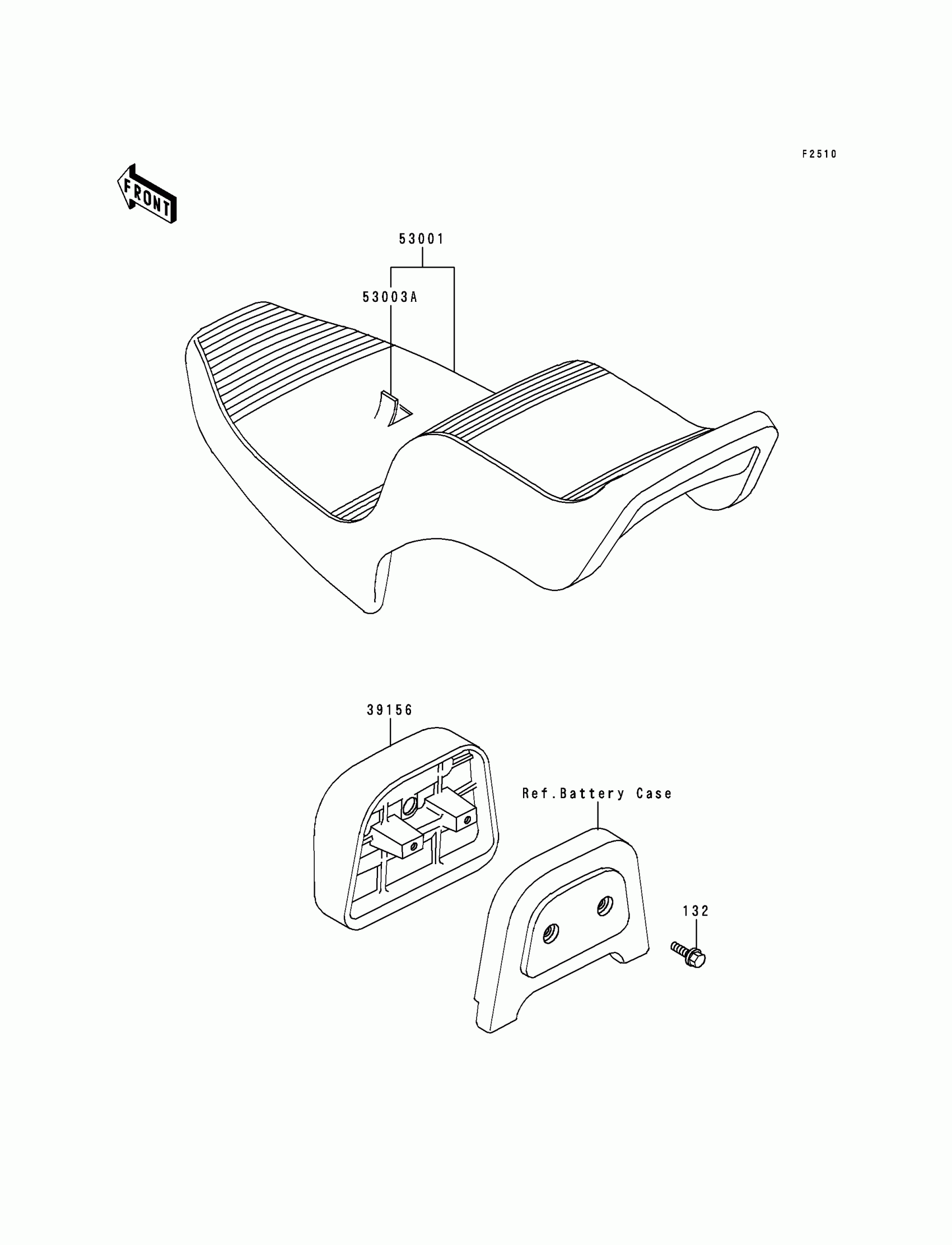

1994 Kawasaki Vulcan 500 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132H0616

1
Out of stock

39156

PAD,BACK REST,BLACK

39156-1154-MA

1
Out of stock

53001

SEAT-ASSY,DUAL,BLACK

53001-1597-MA

1

$525.75

In stock

53003A

LEATHER,SEAT,BLACK

53003-1241-MA

1

$170.90

In stock
