1994 Kawasaki Vulcan 500 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

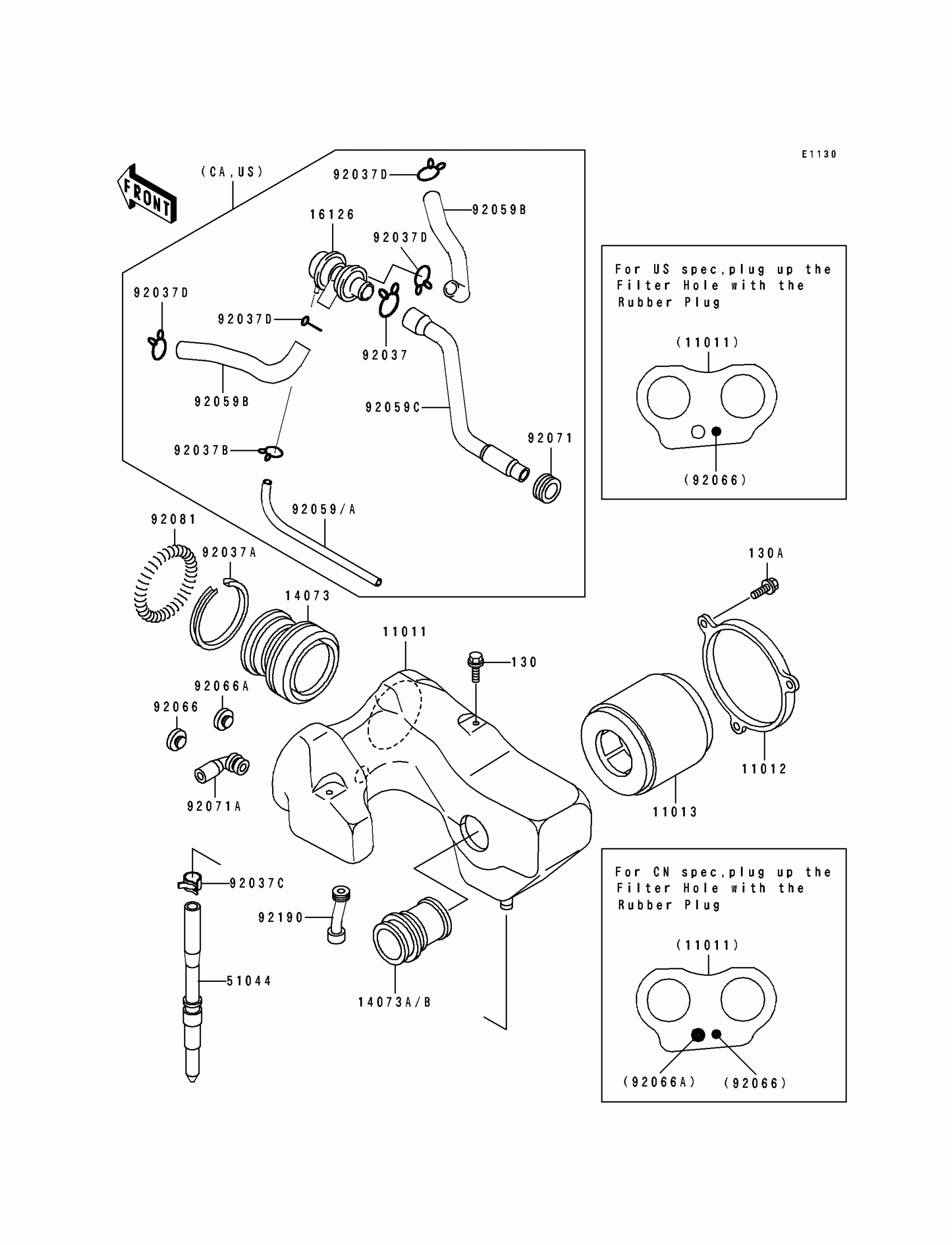

1994 Kawasaki Vulcan 500 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130D0610

1
Out of stock

130A

BOLT-FLANGED

130D0612

1
Out of stock

11011

CASE-AIR FILTER

11011-1331

1
Out of stock

11012

CAP,AIR FILTER

11012-1727

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1185

1

$42.28

In stock

14073

DUCT,CARBURETOR

14073-1413

1

$24.20

In stock

51044

TUBE-ASSY,DRAIN

51044-1084

1
Out of stock

92037A

CLAMP,69MM

92037-1631

1

$12.08

In stock

92037C

CLAMP

92037-1861

1

$8.95

In stock

92081

SPRING,COIL,BLACK

92081-1457

1

$9.04

In stock

92190

TUBE,BREATHER

92190-1071

1
Out of stock

14073A

DUCT,AIR INTAKE

14073-1425

1
Out of stock

14073B

DUCT,AIR INTAKE

14073-1439

1

$17.39

In stock

16126

VALVE,AIR SWITCH

16126-1014

1

$210.09

In stock

92037

CLAMP,TUBE

92037-1076

1

$7.14

In stock

92037B

CLAMP

92037-1712

1

$3.97

In stock

92037D

CLAMP,TUBE

92037-213

1

$3.43

In stock

92059

TUBE,4X9X220

92059-1040

1

$9.85

In stock

92059A

TUBE,4X9X290

92059-1043

1

$9.85

In stock

92059B

1

$14.36

In stock

92059C

1

$25.56

In stock

92066

PLUG,17MM

92066-1320

1

$3.83

In stock

92066A

PLUG,25MM

92066-1321

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1028

1

$5.78

In stock

92071A

GROMMET,AIR FILTER

92071-1114

1
Out of stock
