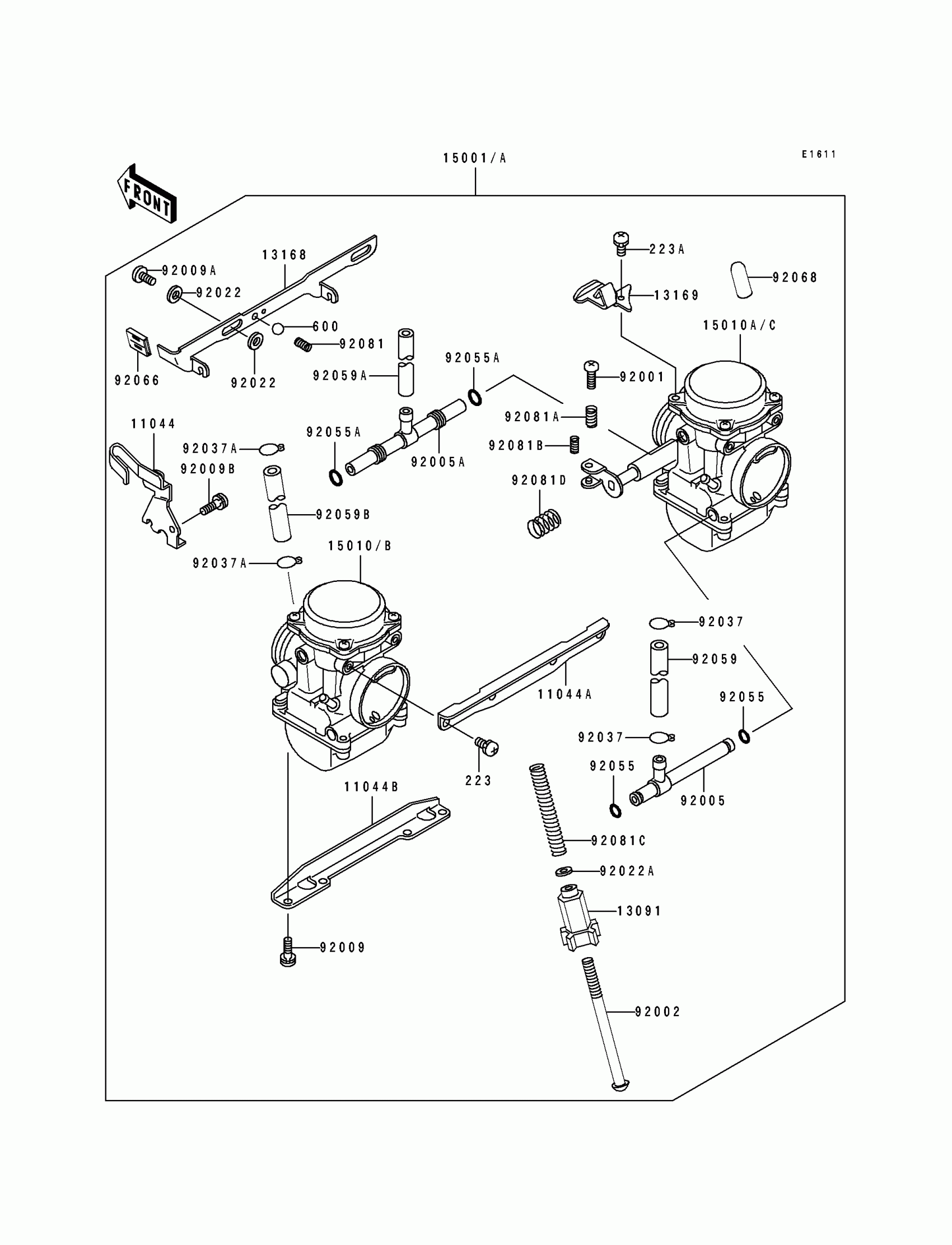

Find the part on the Carburetor diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,THROTTLE CABLE

11044-1312

1
Out of stock

11044A

1

$68.87

In stock

11044B

1

$73.73

In stock

13091

1

$16.31

In stock

13168

LEVER,STARTER

13168-1444

1

$83.77

In stock

92001

1

$15.88

In stock

92002

BOLT,THROTTLE STOP SCREW

92002-1552

1
Out of stock

92005

FITTING

92005-1133

1
Out of stock

92005A

FITTING

92005-1134

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92055

RING-O

92055-1004

1

$3.43

In stock

92055A

RING-O

92055-1223

1

$4.37

In stock

92059

TUBE,7.3X12.5X180

92059-1597

1

$22.88

In stock

92059A

TUBE,6.5X9.5X260

92059-1598

1

$34.01

In stock

92059B

TUBE,5X9X75

92059-1599

1

$24.51

In stock

92066

PLUG,STARTER LEVER

92066-1157

1

$17.44

In stock

92081

SPRING,SHAFT STOP

92081-1619

1
Out of stock

92081A

SPRING

92081-1620

1

$3.94

In stock

92081B

1

$4.12

In stock

223

1

$3.28

In stock

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock

92081C

SPRING,THROTTLE STOP SCREW

92081-1875

1
Out of stock

92081D

SPRING

92081-1876

1

$10.93

In stock

13169

PLATE

13169-1955

1
Out of stock

15001

CARBURETOR-ASSY

15001-1568

1

$1,273.62

In stock

15001A

CARBURETOR-ASSY

15001-1573

1
Out of stock

15010

CARBURETOR,LH

15010-1053

1
Out of stock

15010A

CARBURETOR,RH

15010-1054

1
Out of stock

15010B

CARBURETOR,LH

15010-1055

1

$673.29

In stock

15010C

CARBURETOR,RH

15010-1056

1

$705.05

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock

223A

SCREW-PAN-WS-CROS,4X10

223D0410

1
Out of stock
