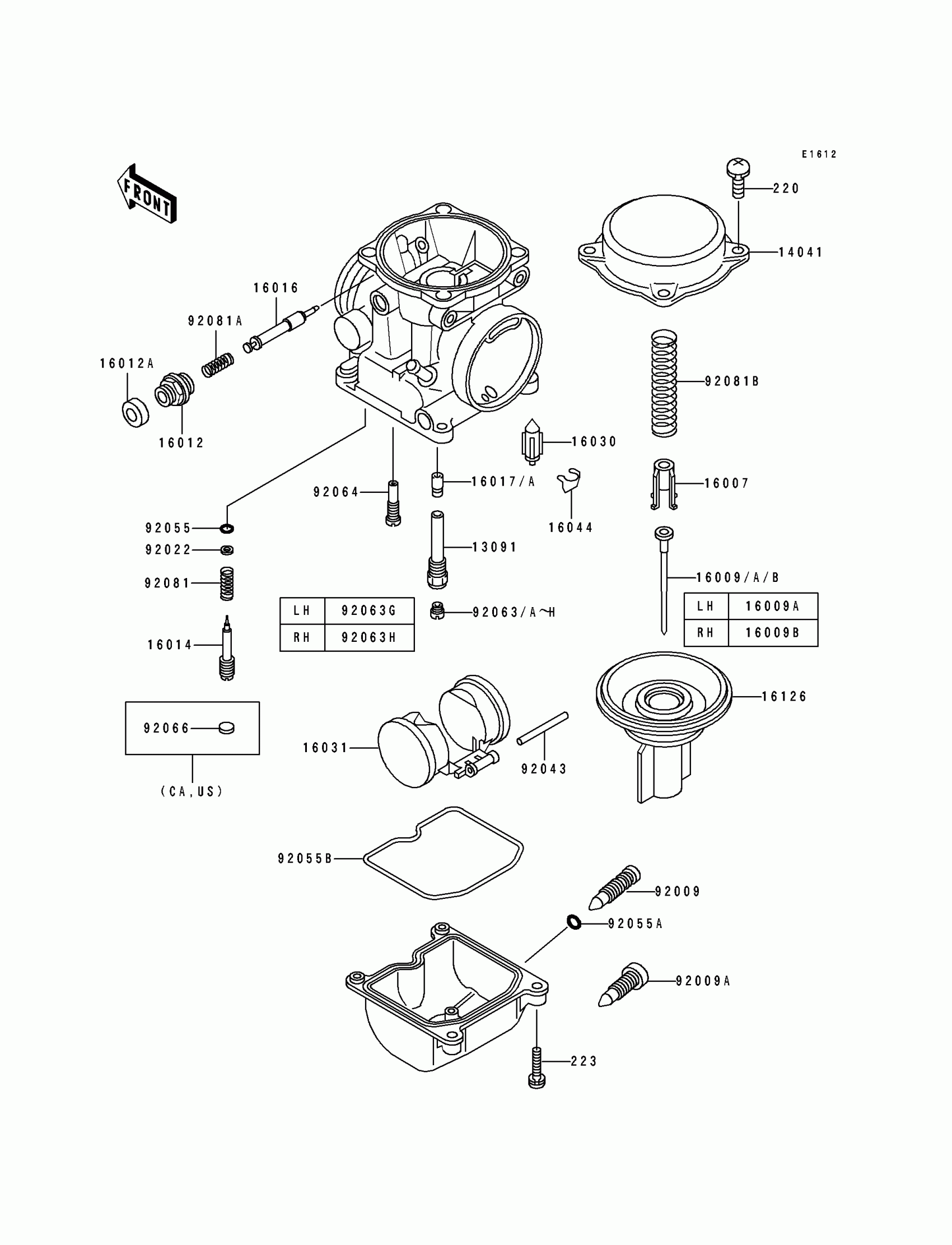

Kawasaki Vulcan 500 Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1425

$26.26

14041

COVER-COMP,MIXING CHAMBER

14041-1065

$73.52

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER,STARTER

16016-1077

$46.37

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1173

$204.57

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN

92022-1003

$3.29

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O

92055-1053

$3.24

92055B

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063D

JET-MAIN,#110

92063-1114

$14.02

223

SCREW-PAN-WS-CROS,4X16

223C0416

$3.14

92063F

JET-MAIN,#108

92063-1116

$14.02

92064

JET-PILOT,#35

92064-1101

$12.84

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,STARTER PLUNGER

92081-1618

$8.88

92081B

SPRING,VACUUM VALVE

92081-1874

Unavailable

16009

NEEDLE-JET,N60Q

16009-1615

$33.21

16009A

NEEDLE-JET,N60T

16009-1616

$29.85

16009B

NEEDLE-JET,N60S

16009-1617

Unavailable

16017

JET-NEEDLE

16017-1059

$43.46

16017A

JET-NEEDLE,#6

16017-1208

$52.49

92063

JET-MAIN,#100

92063-1008

$14.59

92063A

JET-MAIN,#105

92063-1009

$14.90

92063B

JET-MAIN,#118

92063-1071

$14.02

92063C

JET-MAIN,#120

92063-1072

$14.02

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

482

CIRCLIP-TYPE-E,4MM

482L4000

Unavailable

92063E

JET-MAIN,#102

92063-1115

$14.59

92063G

JET-MAIN,#112

92063-1117

$14.02

92063H

JET-MAIN,#115

92063-1118

$14.02

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85
