1994 Kawasaki Vulcan 500 Water Pump Diagram

← All diagrams

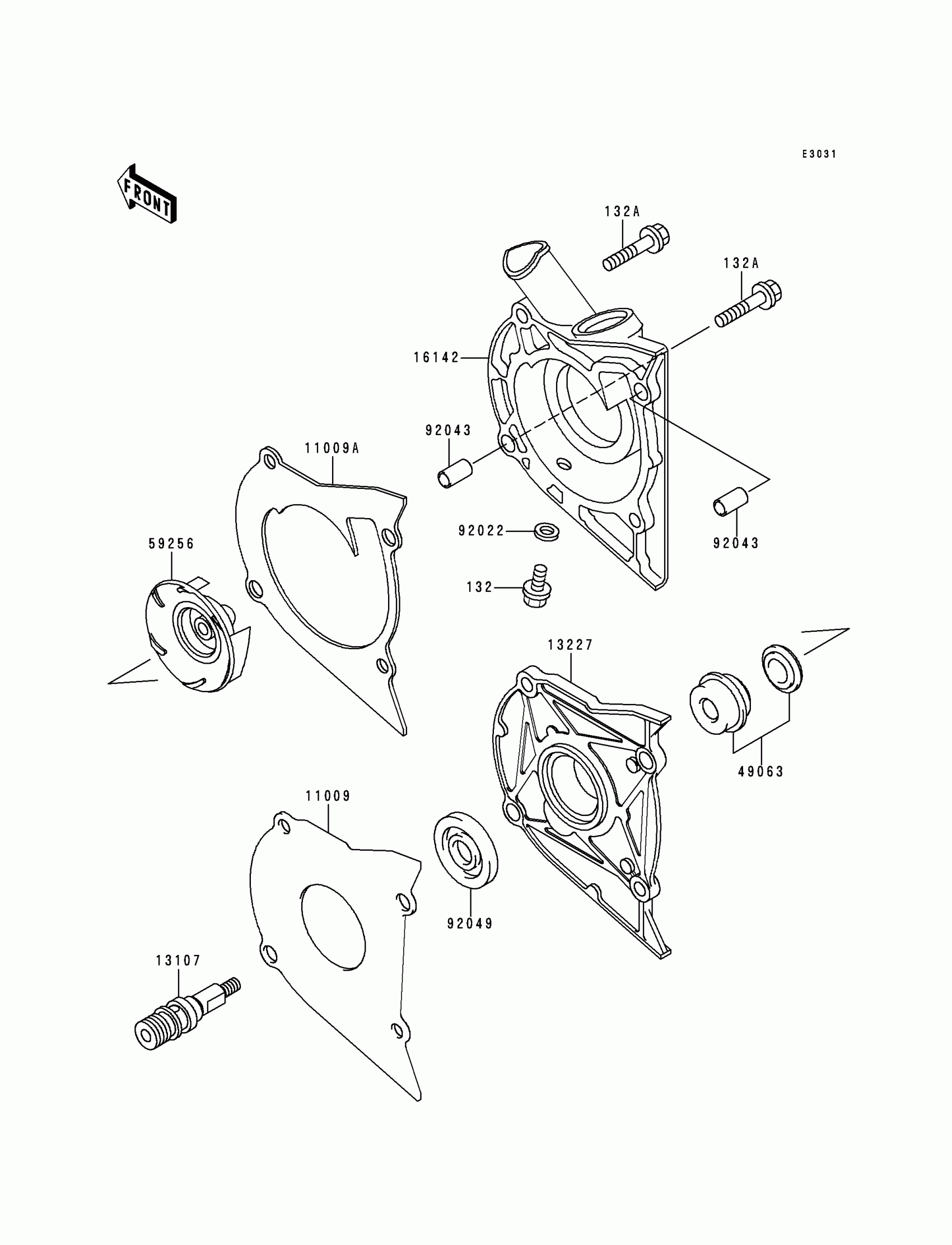

Find the part on the Water Pump diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

132A

1

$4.61

In stock

11009

GASKET,PUMP HOUSING

11009-1838

1
Out of stock

11009A

GASKET,PUMP COVER

11009-1839

1
Out of stock

13107

SHAFT,IMPELLER

13107-1203

1

$51.13

In stock

13227

HOUSING,WATER PUMP

13227-1055

1
Out of stock

16142

COVER-PUMP

16142-1099

1

$171.59

In stock

49063

SEAL-MECHANICAL

49063-1054

1

$13.09

In stock

59256

IMPELLER

59256-1060

1

$33.53

In stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92049

SEAL-OIL,SC12365

92049-1215

1
Out of stock
