2000 Kawasaki Vulcan Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

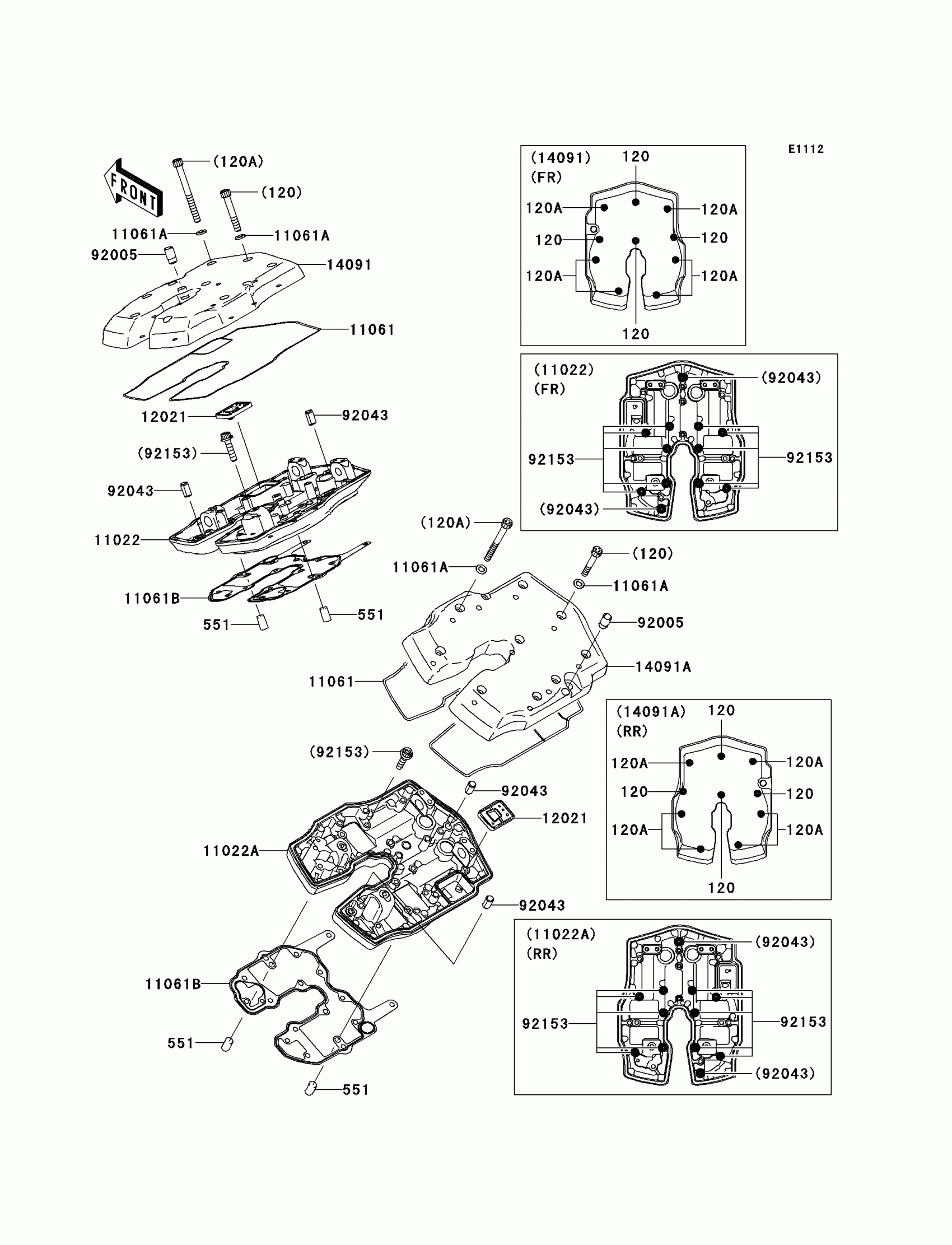

2000 Kawasaki Vulcan Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X40

120R0640

1
Out of stock

120A

BOLT-SOCKET,6X65

120R0665

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

11022

CASE-ROCKER,FR

11022-0005

1
Out of stock

11022A

CASE-ROCKER,RR

11022-0006

1
Out of stock

11061

GASKET,ROCKER CASE COVER

11061-0007

1
Out of stock

11061A

GASKET

11061-0107

1
Out of stock

11061B

GASKET,ROCKER CASE

11061-0108

1
Out of stock

12021

VALVE-ASSY-REED

12021-1102

1
Out of stock

14091

COVER,HEAD,FR

14091-0029

1
Out of stock

14091A

COVER,HEAD,RR

14091-0030

1
Out of stock

92005

FITTING

92005-0002

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92153

BOLT,6X25

92153-0312

1
Out of stock
