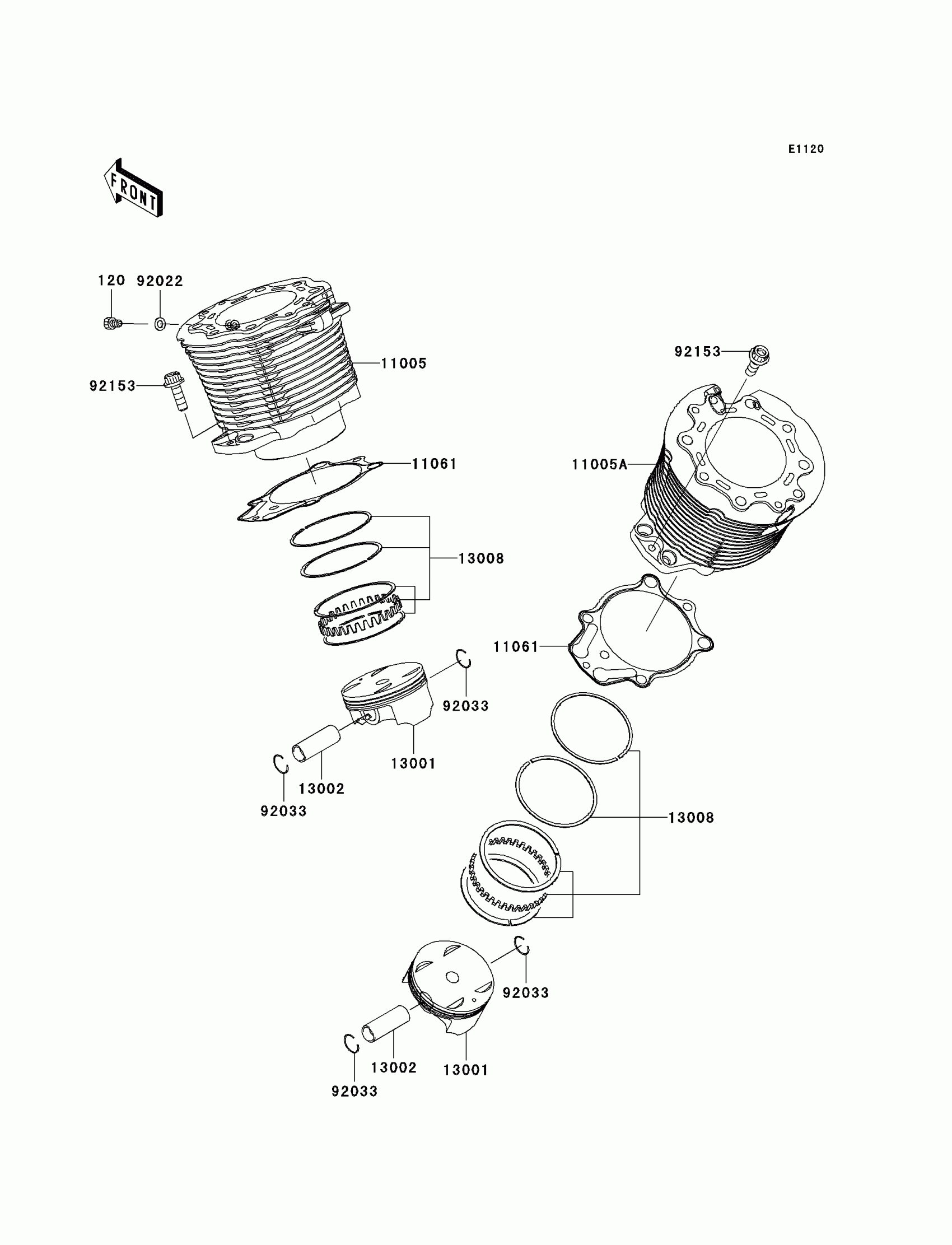

Kawasaki Vulcan 2000 Cylinder/Piston(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120R0610

$1.76

11005

CYLINDER-ENGINE,FR

11005-0040

$1,096.57

11005A

CYLINDER-ENGINE,RR

11005-0041

$1,096.57

11061

GASKET,CYLINDER BASE

11061-0010

$25.01

13001

PISTON-ENGINE

13001-0003

$275.91

13002

PIN-PISTON

13002-0001

$40.56

13008

RING-SET-PISTON

13008-0001

$87.04

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-3721

$1.95

92153

BOLT,8X25

92153-0313

$3.78
