2000 Kawasaki Vulcan OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

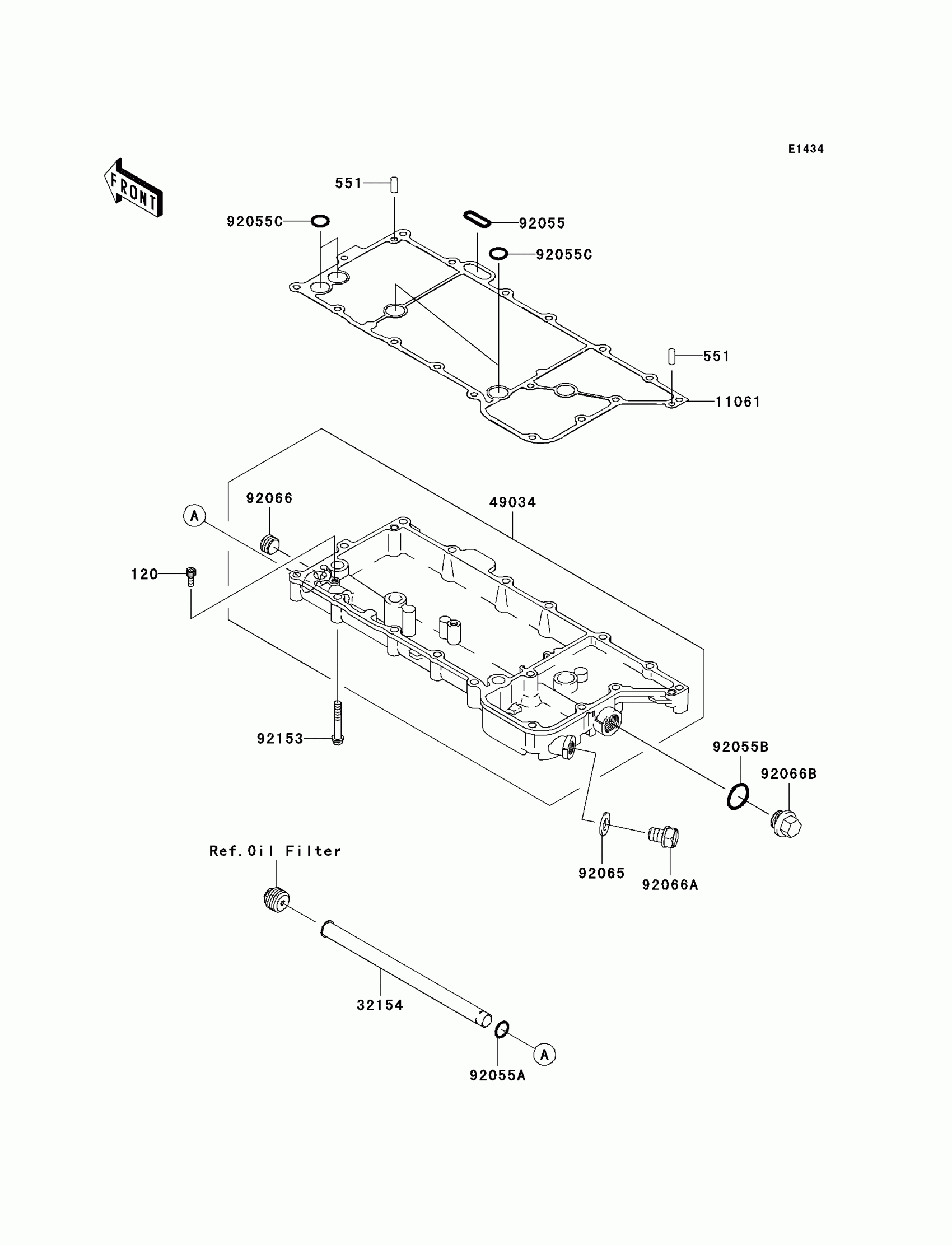

2000 Kawasaki Vulcan OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

551

PIN-DOWEL,6X14

551A0614

1

$3.53

In stock

11061

GASKET,OIL PAN

11061-0021

1

$61.52

In stock

32154

PIPE

32154-0065

1

$11.86

In stock

49034

PAN-OIL

49034-0012

1

$254.48

In stock

92055

RING-O

92055-0009

1
Out of stock

92055A

RING-O,ID=13.8

92055-1141

1

$3.12

In stock

92055B

RING-O,20X2

92055-1146

1

$6.82

In stock

92055C

RING-O,13.2X2.4

92055-1373

1

$3.74

In stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

PLUG

92066-0042

1

$7.80

In stock

92066A

1

$4.88

In stock

92066B

1

$8.69

In stock

92153

BOLT,6X40

92153-0710

1
Out of stock
