2000 Kawasaki Vulcan OIL Filter Diagram

← All diagrams

Find the part on the OIL Filter diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

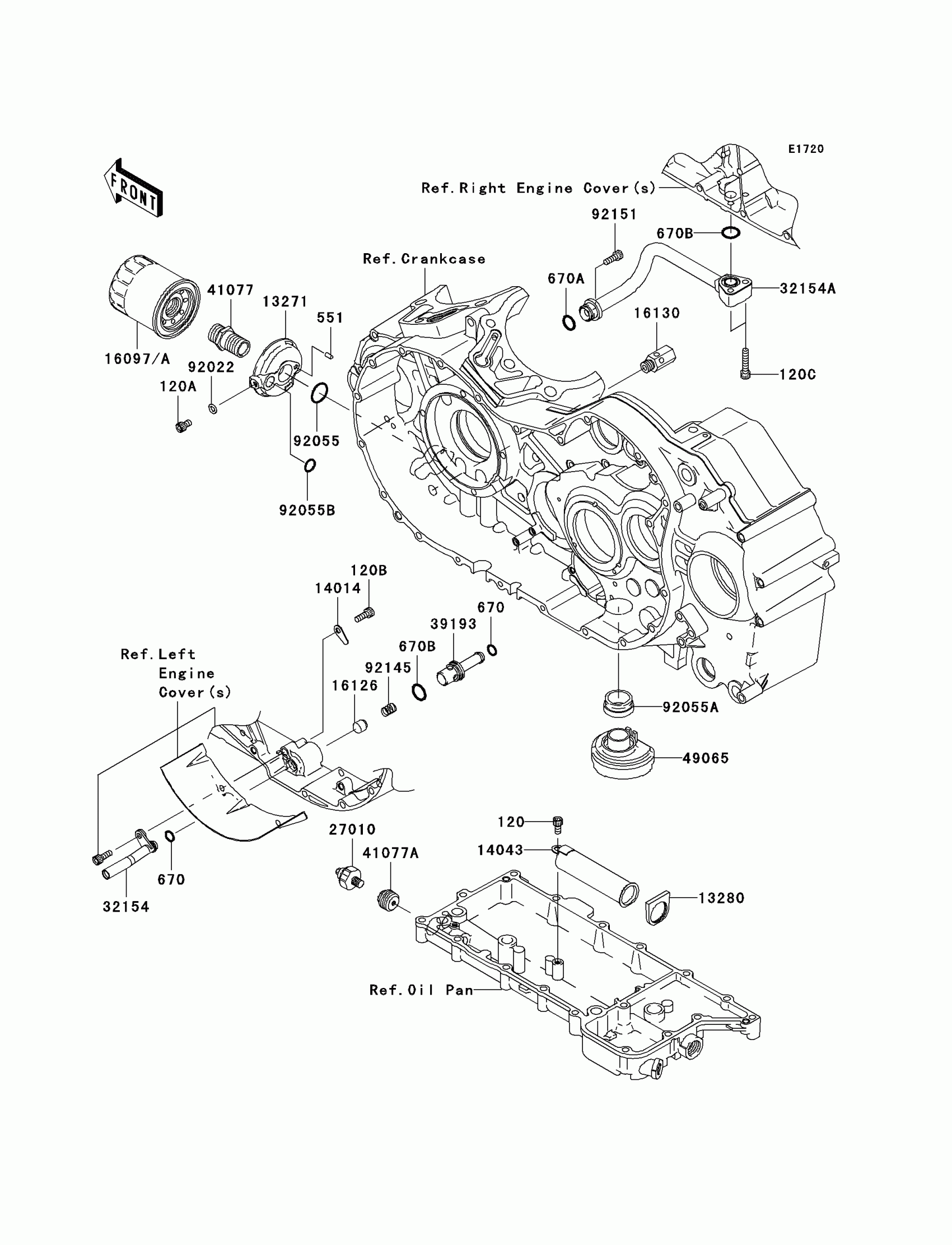

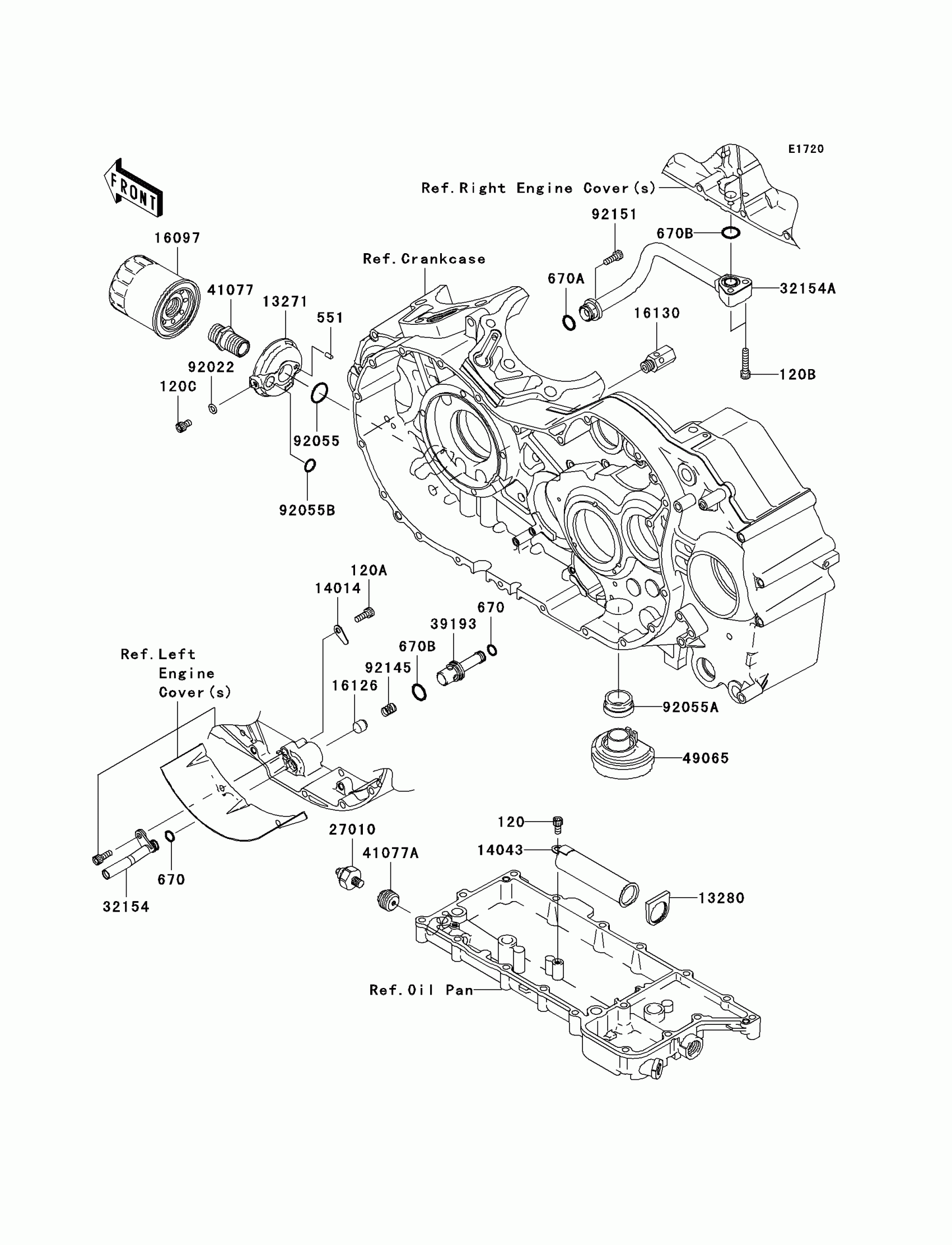

2000 Kawasaki Vulcan OIL Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120P0612

1
Out of stock

120A

BOLT-SOCKET,6X10

120R0610

1
Out of stock

120B

BOLT-SOCKET,6X16

120T0616

1
Out of stock

120C

BOLT-SOCKET,6X30

120W0630

1
Out of stock

551

PIN-DOWEL

551R0408

1
Out of stock

670

O RING,10MM

670D1510

1
Out of stock

670A

O RING,14MM

670D2014

1
Out of stock

670B

O RING,16MM

670D2016

1
Out of stock

13271

PLATE,FILTER BASE

13271-0413

1

$86.31

In stock

13280

HOLDER

13280-0008

1

$8.51

In stock

14014

PLATE-POSITION

14014-0013

1

$1.97

In stock

14043

FILTER

14043-0004

1

$48.79

In stock

16097

FILTER-ASSY-OIL

16097-0004

1
Out of stock

16126

VALVE,CHECK

16126-0009

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32154

PIPE

32154-0077

1
Out of stock

32154A

PIPE,CRANKCASE-MISSION COVER

32154-0427

1
Out of stock

39193

1

$35.12

In stock

41077

ADAPTER

41077-0003

1
Out of stock

41077A

ADAPTER

41077-0010

1
Out of stock

49065

FILTER-OIL

49065-0001

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92055

RING-O,20.8X1.9

92055-1259

1
Out of stock

92055A

RING-O,OIL FILTER

92055-1503

1
Out of stock

92055B

RING-O,12.3X1.9

92055-1594

1
Out of stock

92145

SPRING

92145-0134

1
Out of stock

92151

BOLT,SOCKET,6X16

92151-3770

1
Out of stock
