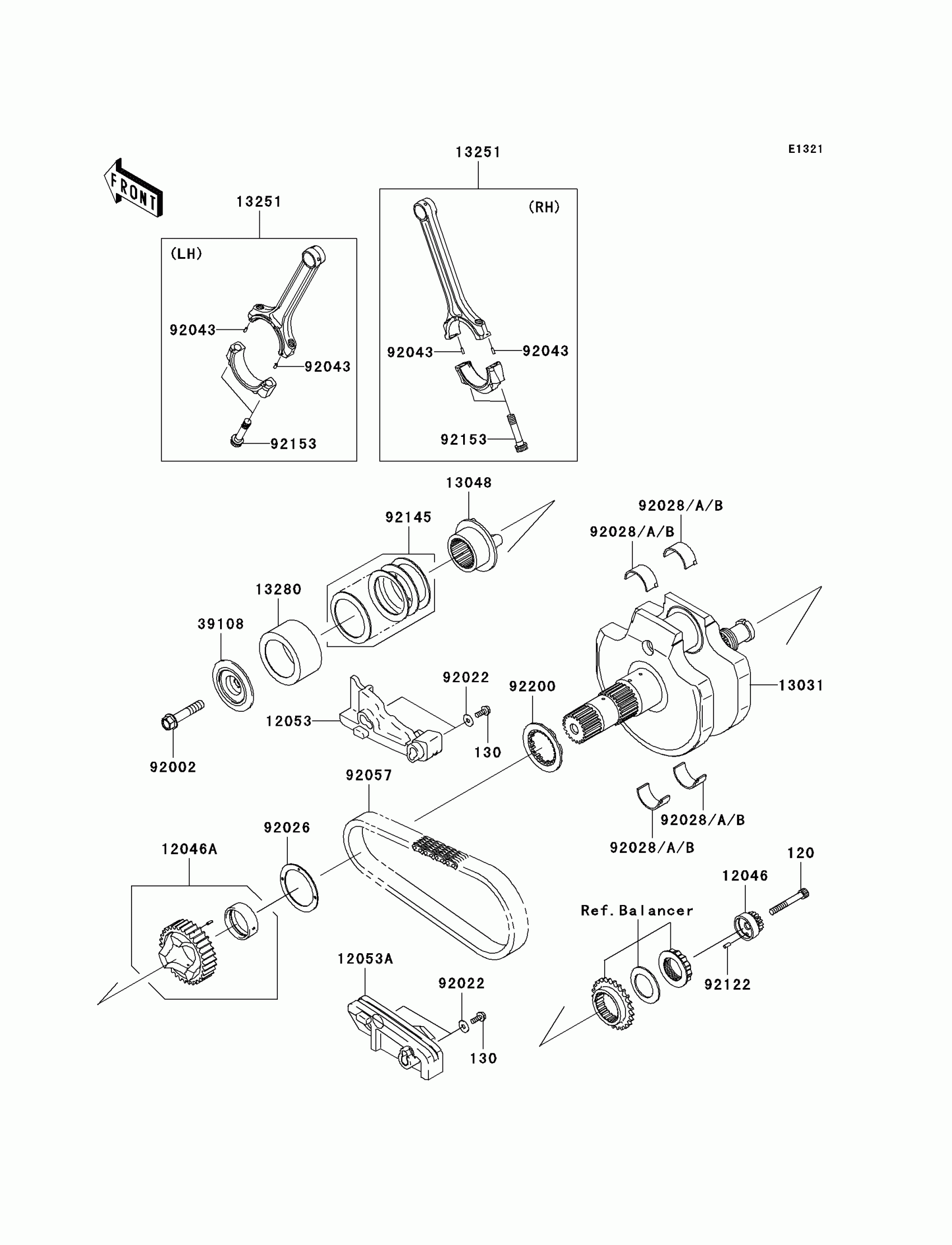

2000 Kawasaki Vulcan Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X60

120Q0860

1
Out of stock

130

BOLT-FLANGED,6X16

130P0616

1
Out of stock

12046

SPROCKET,CAM

12046-0005

1
Out of stock

12046A

SPROCKET

12046-0022

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-0026

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-0037

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0031

1
Out of stock

13048

CAM-DAMPER

13048-0001

1
Out of stock

13251

ROD-ASSY-CONNECTING

13251-0001

1
Out of stock

13280

HOLDER

13280-0027

1

$18.02

In stock

39108

RETAINER-SPRING

39108-0002

1

$42.03

In stock

92002

BOLT,FLANGED,12X60

92002-1464

1
Out of stock

92022

WASHER,6.2X18X1.2

92022-1369

1
Out of stock

92026

SPACER,57X74X1.97

92026-0041

1
Out of stock

92028

BUSHING,CONNECTING ROD,BLUE

92028-1474

1
Out of stock

92028A

BUSHING,CONNECTING ROD,BLACK

92028-1475

—
Out of stock

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1476

—
Out of stock

92043

PIN,3X8.5

92043-0033

1
Out of stock

92057

CHAIN,89HV304CF-88

92057-0027

1
Out of stock

92122

ROLLER,4X9.8

92122-1197

1
Out of stock

92145

SPRING

92145-0031

1
Out of stock

92153

BOLT,CONNECTING ROD

92153-0314

1
Out of stock

92200

WASHER

92200-0013

1
Out of stock
