2000 Kawasaki Vulcan Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

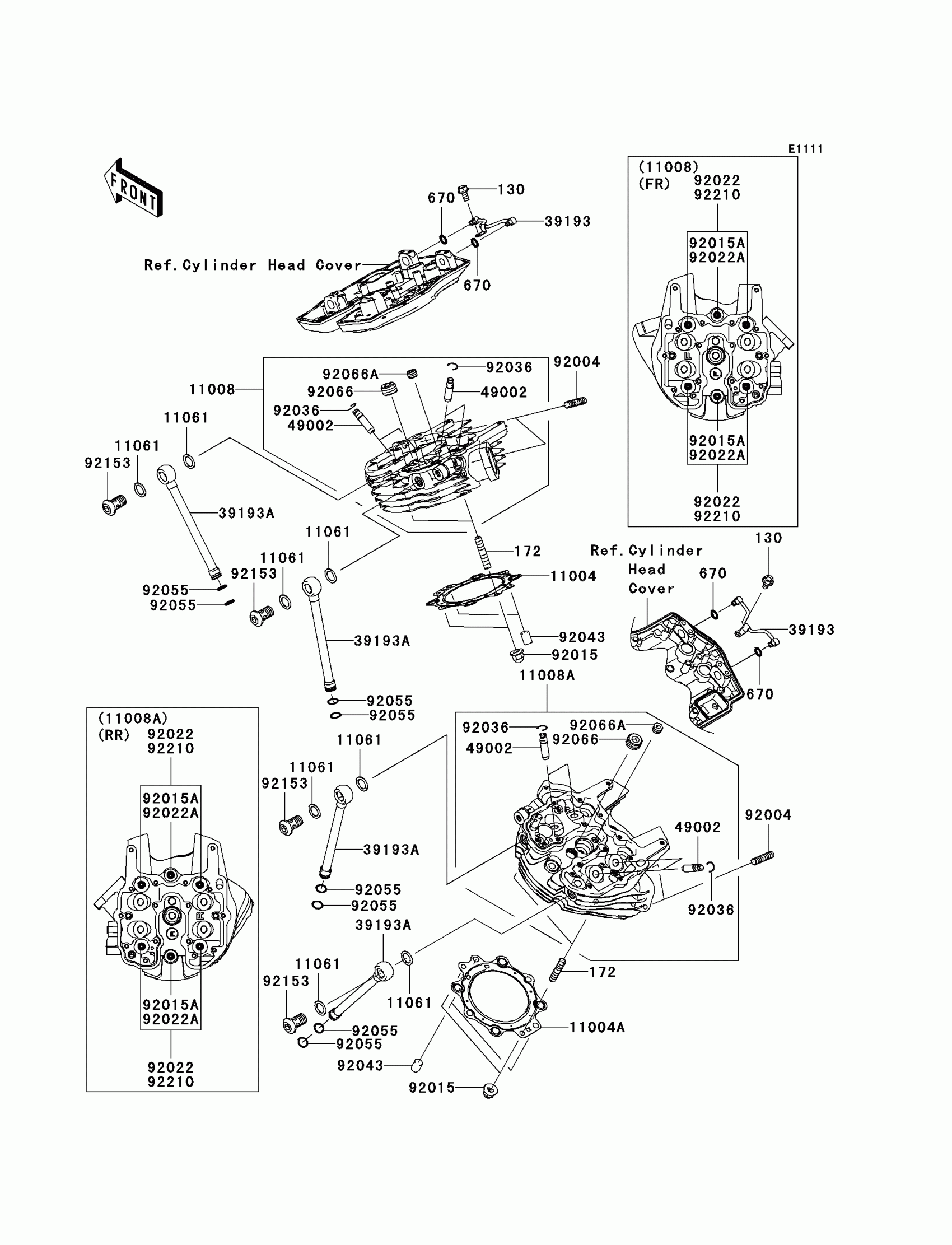

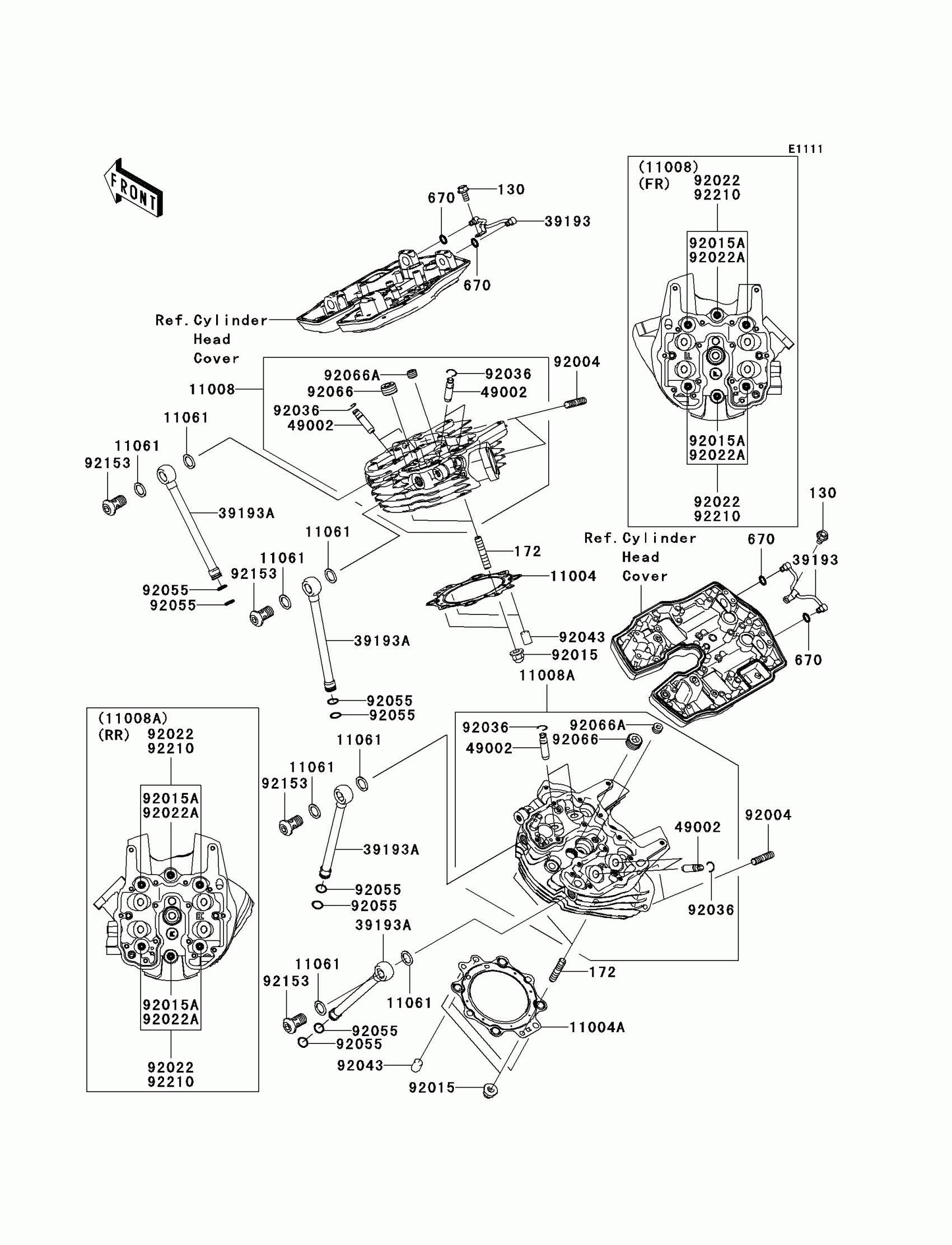

2000 Kawasaki Vulcan Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130H0612

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1

$2.56

In stock

670

O RING

670D1505

1

$3.43

In stock

11004

GASKET-HEAD,FR

11004-0001

1
Out of stock

11004A

GASKET-HEAD,RR

11004-0002

1

$70.76

In stock

11008

1

$1,457.82

In stock

11008A

1

$1,528.09

In stock

11061

GASKET,OIL PIPE

11061-0110

1

$1.68

In stock

39193

1

$47.13

In stock

39193A

1

$73.41

In stock

49002

GUIDE-VALVE

49002-0008

—
Out of stock

92004

STUD,8X22

92004-1249

1
Out of stock

92015

NUT,CAP,8MM

92015-1370

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1727

1

$3.85

In stock

92022

WASHER,12.3X25X3.2

92022-1293

1

$5.75

In stock

92022A

WASHER,10.2X20X1.5

92022-3742

1
Out of stock

92036

1

$0.53

In stock

92043

PIN,10X14

92043-1506

1

$2.66

In stock

92055

RING-O,14.8X1.9

92055-0005

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92066A

PLUG,PT1/4X8.9

92066-1260

1

$3.81

In stock

92153

BOLT

92153-0363

1
Out of stock

92210

NUT,12MM

92210-0115

1
Out of stock
