2000 Kawasaki Vulcan® OIL Pump Diagram

← All diagrams

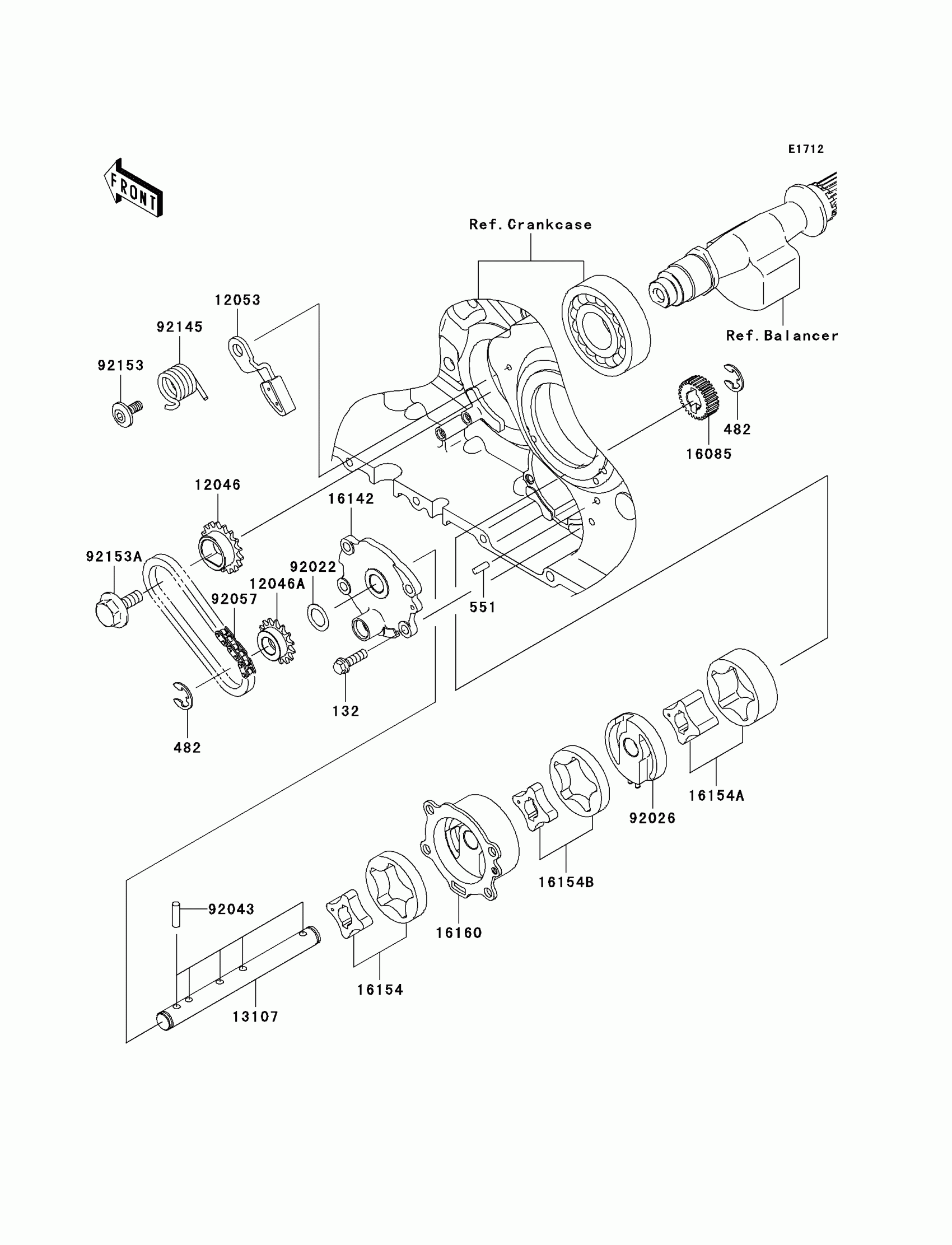

Find the part on the OIL Pump diagram for your 2000 Kawasaki Vulcan®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan® OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

551

PIN-DOWEL

551A0412

1
Out of stock

12046

SPROCKET,DRIVE,17T

12046-0010

1
Out of stock

12046A

SPROCKET,15T

12046-0011

1
Out of stock

12053

GUIDE-CHAIN

12053-0005

1
Out of stock

13107

SHAFT

13107-0007

1
Out of stock

16085

GEAR,OIL PUMP,27T

16085-0006

1
Out of stock

16142

COVER-PUMP

16142-0014

1
Out of stock

16154

ROTOR-PUMP,FEED

16154-0001

1
Out of stock

16154A

ROTOR-PUMP,SCAVENGE OILPAN

16154-0004

1
Out of stock

16154B

ROTOR-PUMP,SCAVENGE CLUTCH

16154-0013

1
Out of stock

16160

BODY,OIL PUMP

16160-0002

1
Out of stock

92022

WASHER,13.2X20X0.5

92022-1224

1
Out of stock

92026

SPACER

92026-0039

1
Out of stock

92043

PIN,17.9X5.0

92043-1444

1
Out of stock

92057

CHAIN,DID25FH

92057-0029

1
Out of stock

92145

SPRING

92145-0036

1
Out of stock

92153

BOLT,6X15.4

92153-0322

1
Out of stock

92153A

BOLT,FLANGED,8X23

92153-0549

1
Out of stock
