2025 Kawasaki Vulcan 1700 Voyager ABS Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2025 Kawasaki Vulcan 1700 Voyager ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

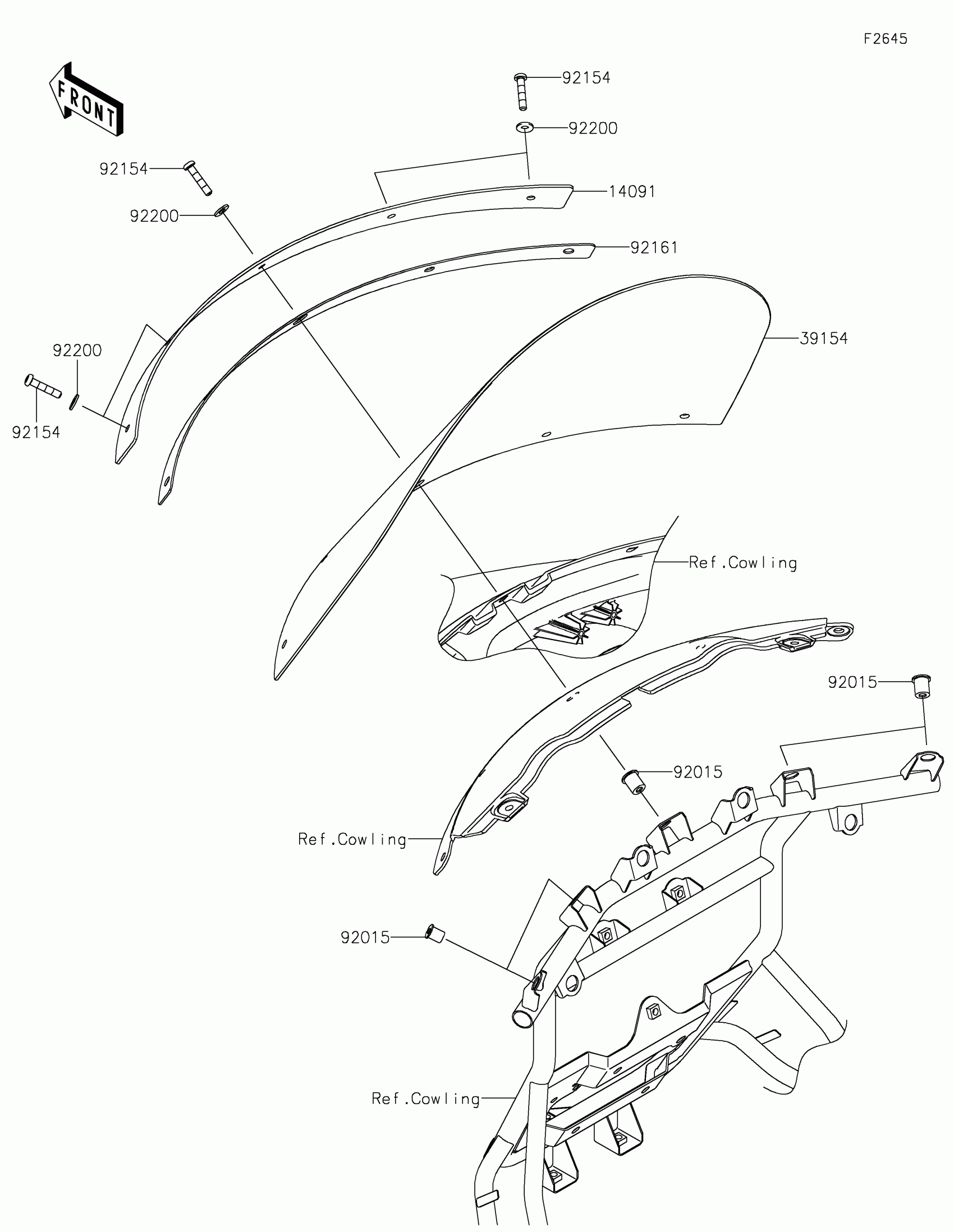

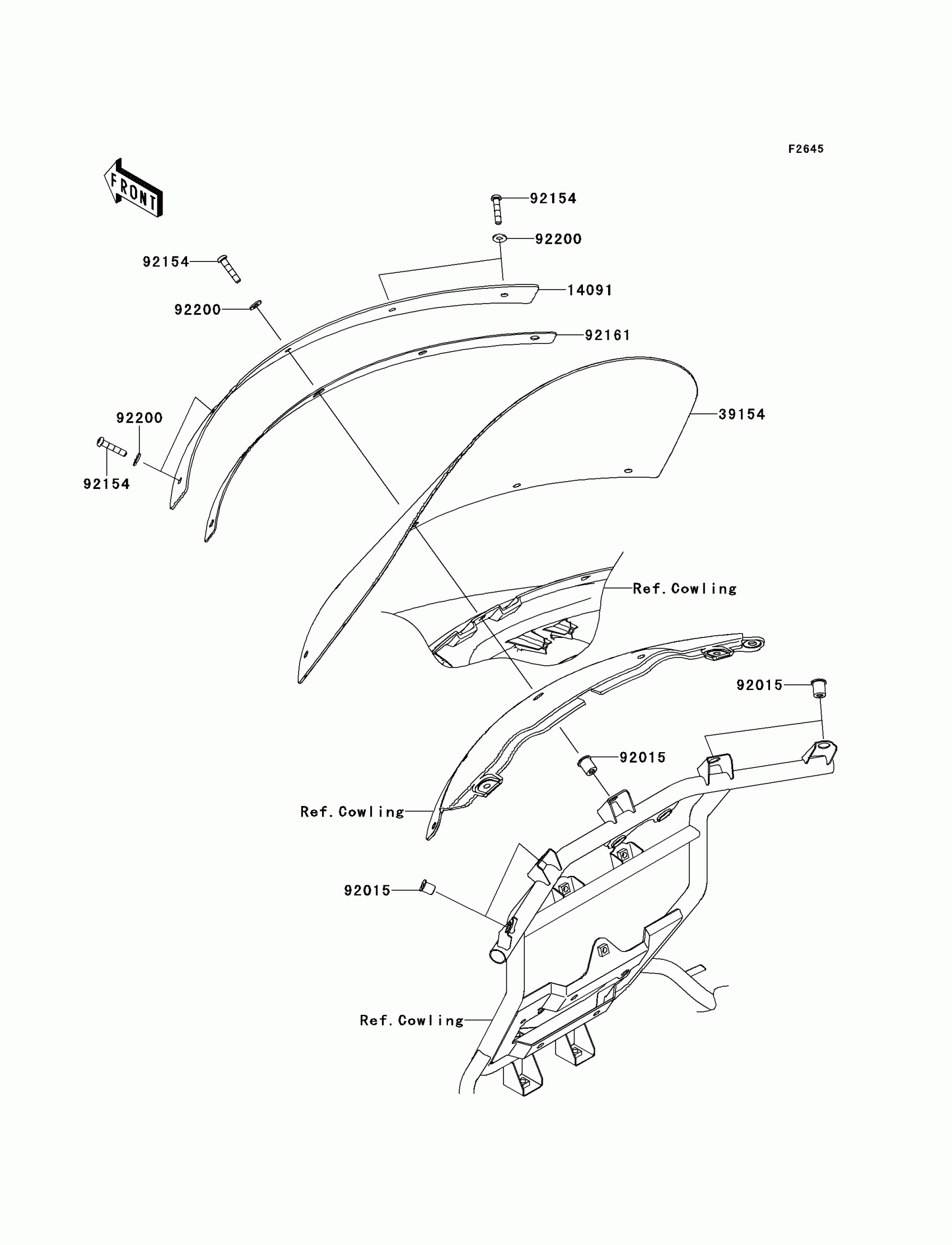

2025 Kawasaki Vulcan 1700 Voyager ABS Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,WINDSHIELD

14091-0949

1
Out of stock

39154

WINDSHIELD

39154-0324

1

$249.58

In stock

92015

NUT

92015-1700

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0206

1
Out of stock

92161

DAMPER,WINDSHIELD

92161-0656

1
Out of stock

92200

WASHER,6.5X14.5X1.5

92200-3775

1
Out of stock
