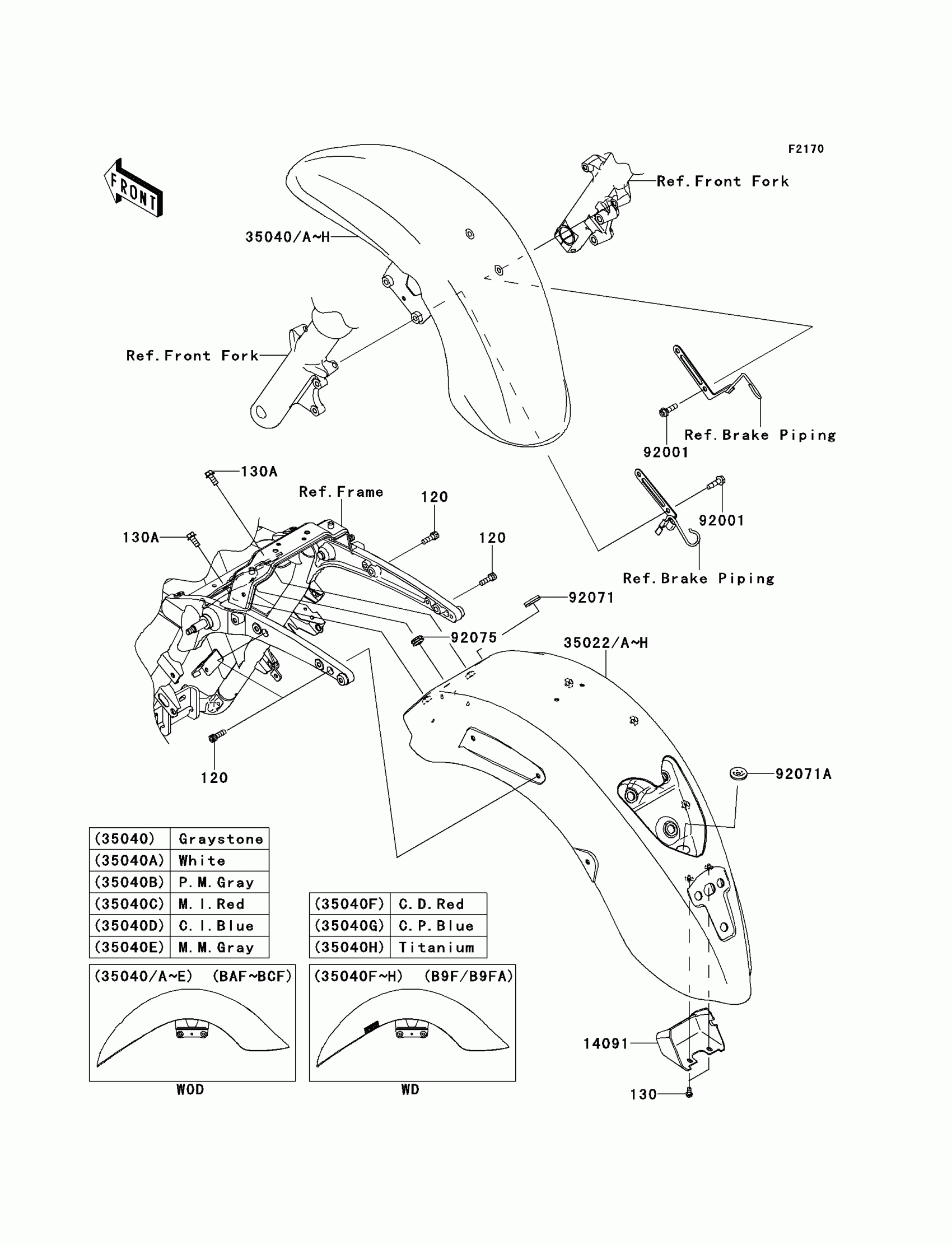

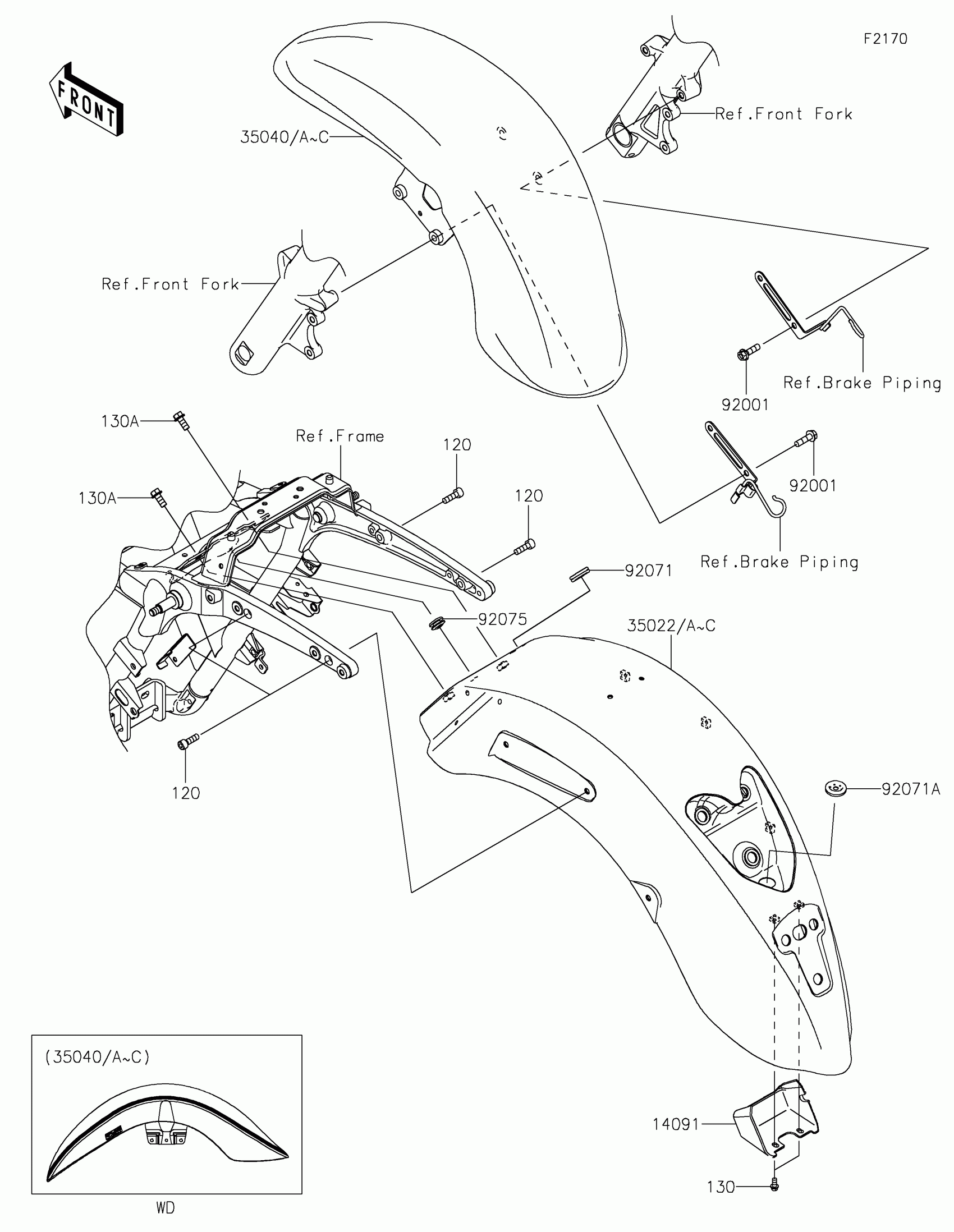

Kawasaki VULCAN® 1700 VOYAGER® ABS Fenders Diagram

Description

Price

120

BOLT-SOCKET,8X25

120CA0825

$1.49

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X16

130BA0816

$0.89

14091

COVER,HARNESS CONNECTOR

14091-1630

$9.63

35022

FENDER-COMP-REAR,M.GRAYSTONE

35022-0066-C4

$1,152.39

35040

FENDER-COMP-FRONT,M.GRAYSTONE

35040-0017-C4

$793.15

92001

BOLT,FLANGED,8X28

92001-1095

$5.71

92071

GROMMET

92071-1228

$5.66

92071A

GROMMET

92071-1265

$4.12

92075

DAMPER

92075-1067

$3.57

35022A

FENDER-COMP-REAR,P.A.WHITE

35022-0066-R1

$1,152.39

35040A

FENDER-COMP-FRONT,P.A.WHITE

35040-0017-R1

$850.34
