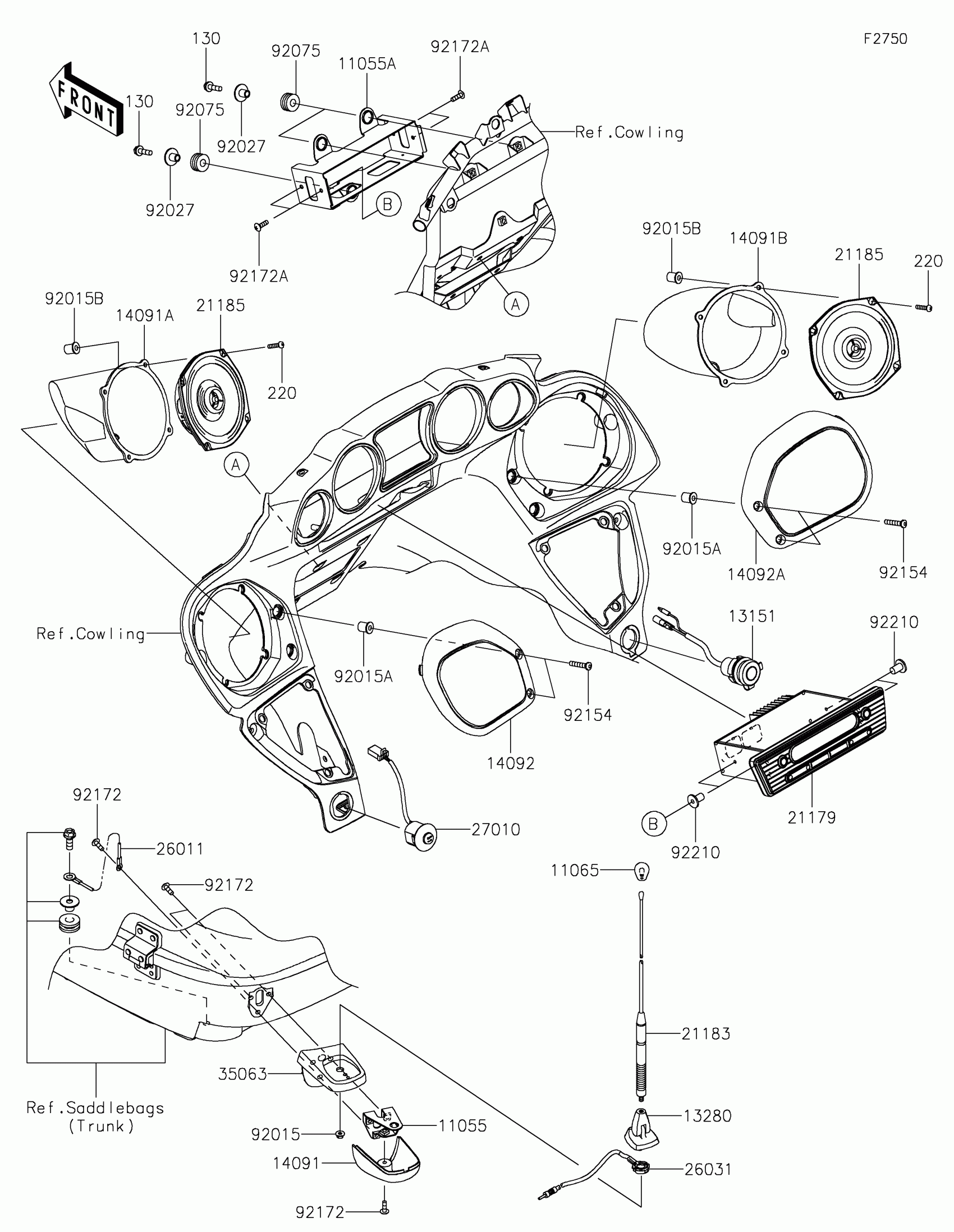

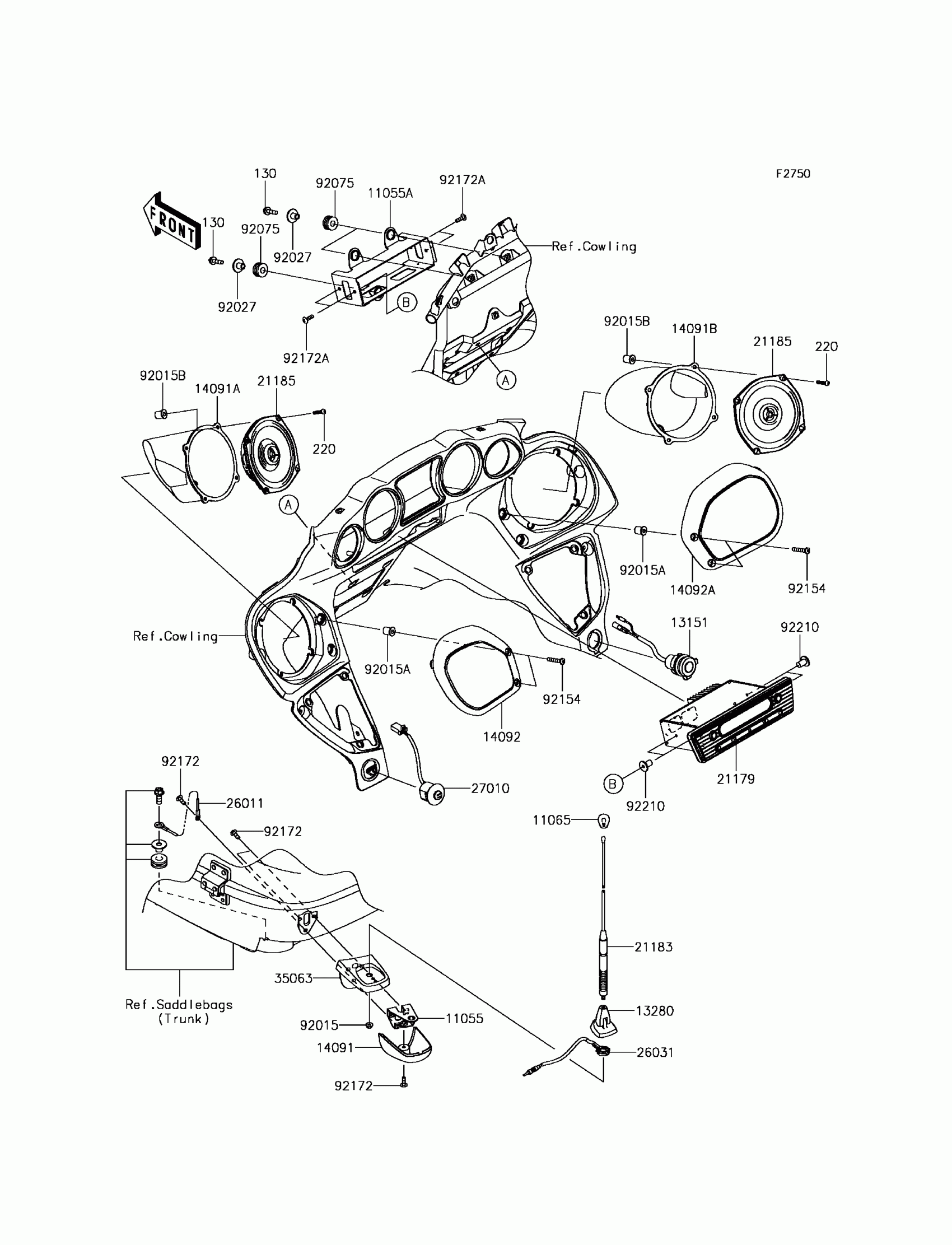

Kawasaki Vulcan 1700 Voyager ABS Other Diagram

#

Description
Price

130

BOLT-FLANGED,6X22

130BA0622

$1.00

220

SCREW-PAN-CROS,5X20

220AB0520

$1.36

11055

BRACKET,ANTENNA STAY

11055-0683

$13.66

11055A

BRACKET,AUDIO

11055-1510

$29.34

11065

CAP,ANTENNA

11065-0305

$3.78

13151

SWITCH-COMP

13151-0040

$144.21

13280

HOLDER,ANTENNA

13280-0285

$103.93

14091

COVER,ANTENNA STAY

14091-1576

$7.88

14091A

COVER,SPEAKER BOX,LH

14091-1773

$29.08

14091B

COVER,SPEAKER BOX,RH

14091-1774

Unavailable

14092

COVER,SPEAKER,LH

14092-0811

$114.52

14092A

COVER,SPEAKER,RH

14092-0812

$114.52

21179

RADIO-TUNER

21179-0059

$2,124.42

21183

ANTENNA

21183-0006

$162.45

21185

SPEAKER

21185-0001

$214.47

26011

WIRE-LEAD,ANTENNA

26011-0287

$5.76

26031

HARNESS,ANTENNA

26031-0735

$200.90

27010

SWITCH,SUB LAMP

27010-0107

$99.33

35063

STAY,ANTENNA

35063-0519

Unavailable

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT

92015-1700

$6.55

92015B

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92075

DAMPER,10X24X12

92075-1690

$3.81

92154

BOLT,SOCKET,6X30

92154-0206

$1.95

92172

SCREW,5X16

92172-0322

$1.57

92172A

SCREW,5X18

92172-0428

$0.86

92210

NUT,WELL,5MM

92210-0532

$7.93
