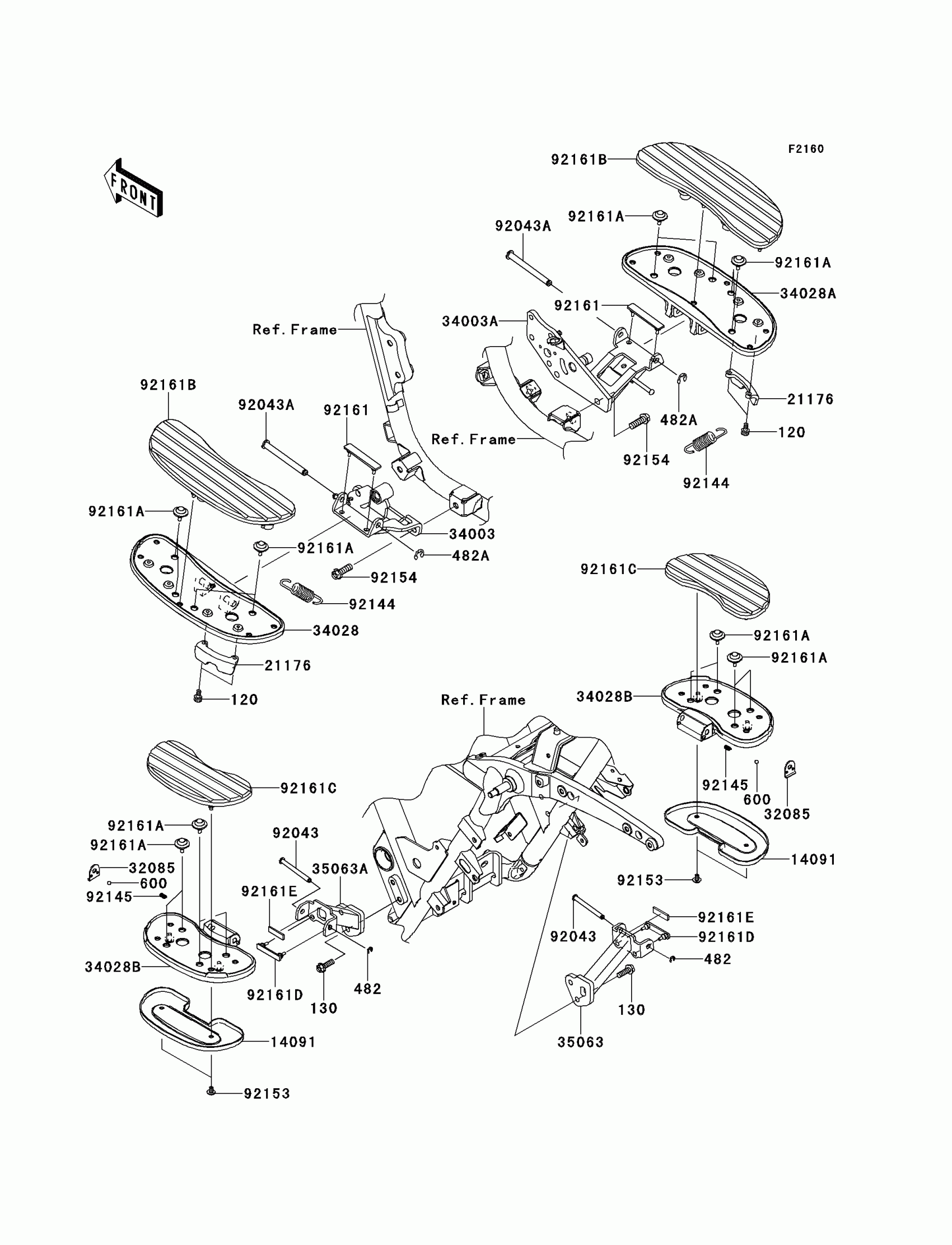

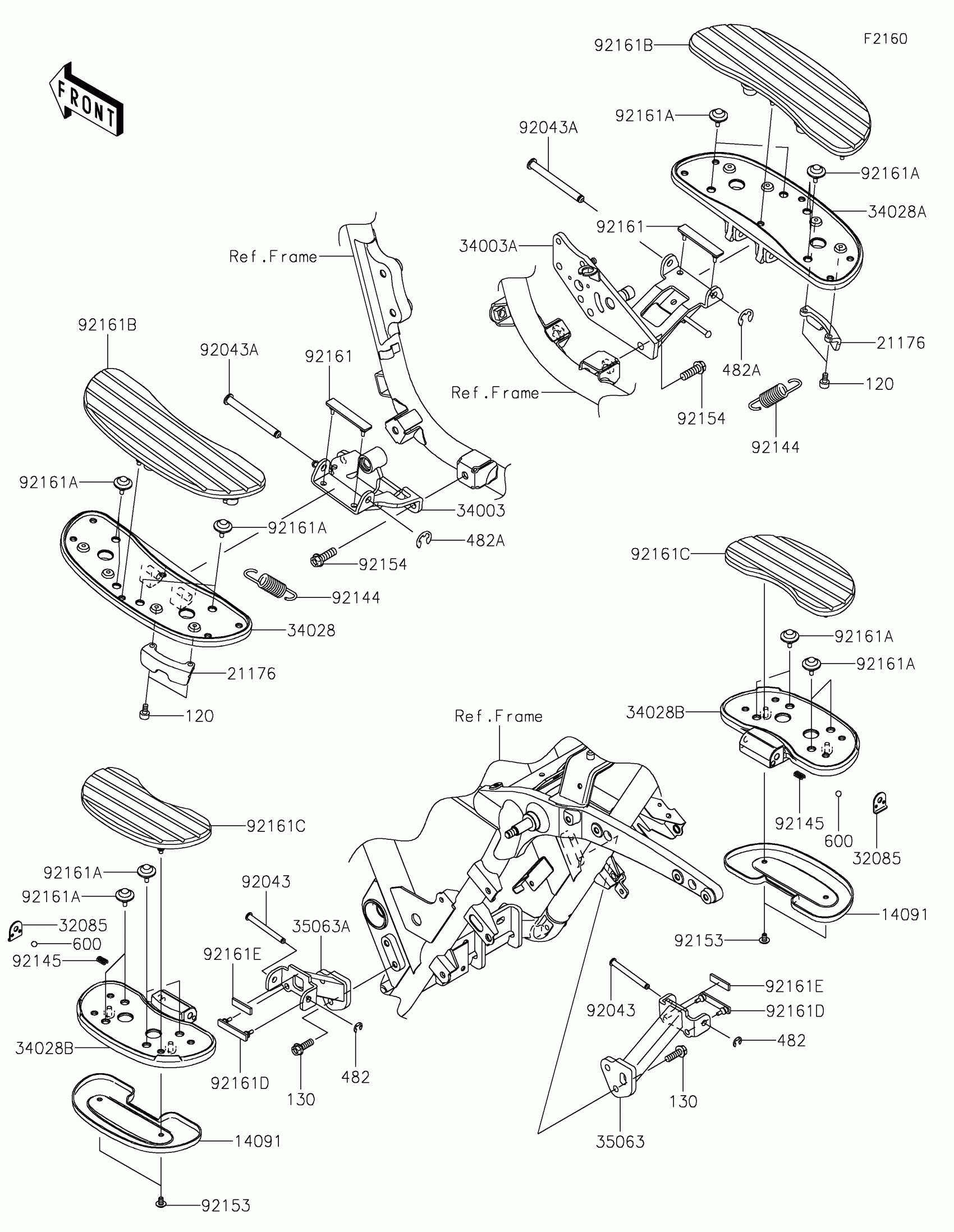

Kawasaki VULCAN® 1700 VOYAGER® ABS Footrests Diagram

Description

Price

120

BOLT-SOCKET,6X16

120CB0616

$1.00

130

BOLT-FLANGED,8X25

130BB0825

$3.39

482

CIRCLIP-TYPE-E

482EA7000

$2.99

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

600

BALL-STEEL,1/4

600A0800

$0.59

14091

COVER,REAR STEP

14091-1808

$29.03

21176

SENSOR,BANK

21176-0123

$20.69

32085

STOPPER,REAR STEP

32085-0045

$2.64

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0102-18R

$122.22

34003A

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0103-18R

$127.48

34028

STEP,FR,LH

34028-0124

$112.75

34028A

STEP,FR,RH

34028-0125

Unavailable

34028B

STEP,RR

34028-0131

$67.85

35063

STAY,RR,RH,F.S.BLACK

35063-0649-18R

$82.32

35063A

STAY,RR,LH,F.S.BLACK

35063-0669-18R

$82.32

92043

PIN,8X76.5

92043-0054

$2.36

92043A

PIN,10X98.5

92043-1707

$10.10

92144

SPRING

92144-1266

$6.70

92145

SPRING

92145-1319

$1.33

92153

BOLT,SOCKET,6X10

92153-1096

$1.98

92154

BOLT,FLANGED,10X30

92154-0284

$2.69

92161

DAMPER,STEP HOLDER

92161-0746

$5.80

92161A

DAMPER,STEP

92161-0766

$4.66

92161B

DAMPER,FOOT BOARD

92161-0770

$70.14

92161C

DAMPER,REAR STEP

92161-0771

$55.52

92161D

DAMPER,REAR STEP

92161-0772

$5.53

92161E

DAMPER,10X35X3

92161-0840

$1.47
