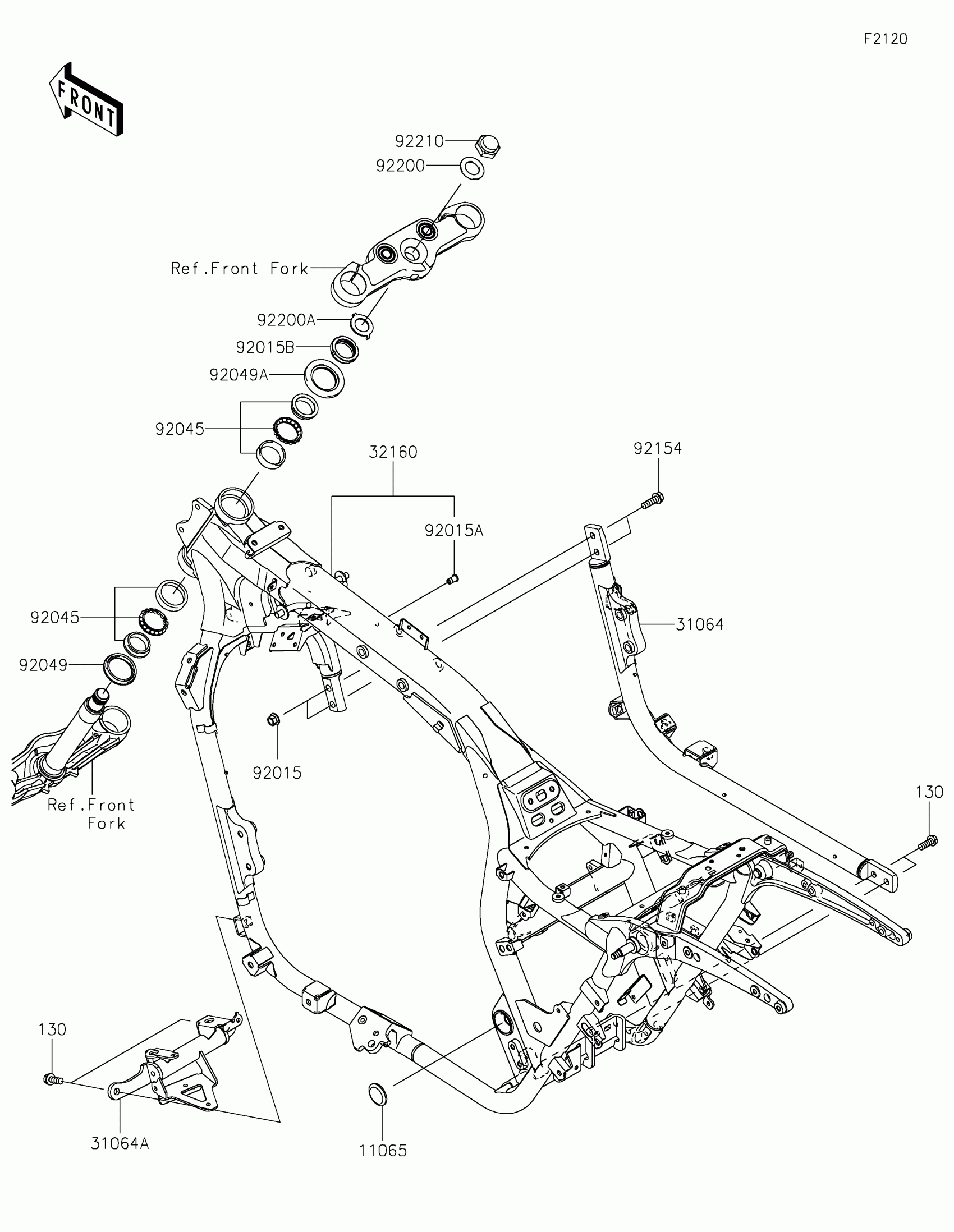

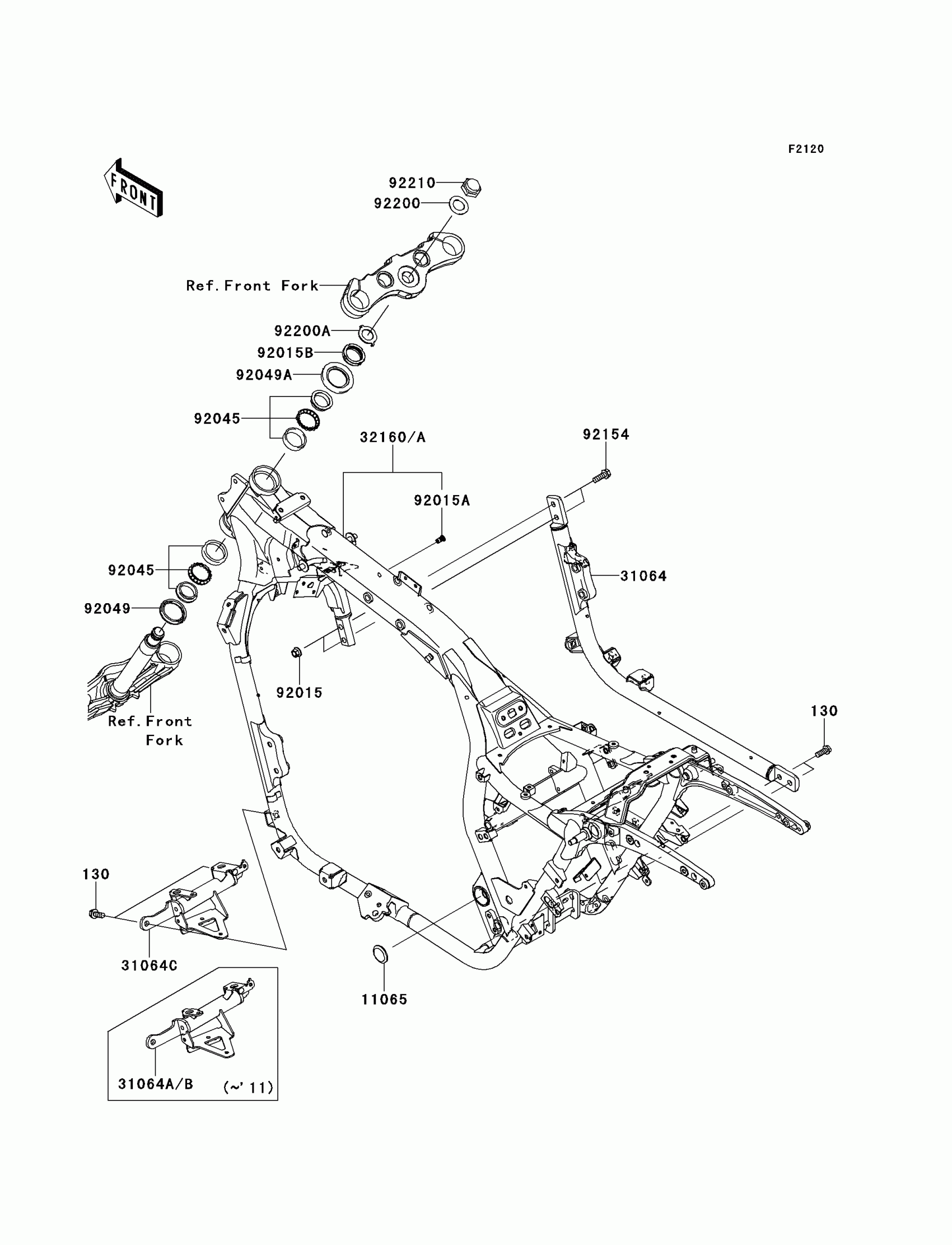

Find the part on the Frame diagram for your 2012 Kawasaki Vulcan® 1700 Voyager® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X25

130BB1025

1

$4.63

In stock

11065

CAP

11065-0320

1
Out of stock

31064

PIPE-COMP,DOWNTUBE,RH,BLACK

31064-0129-18R

1
Out of stock

31064C

PIPE-COMP,FRONT CROSS,BLACK

31064-0599-18R

1
Out of stock

32160A

FRAME-COMP,F.S.BLACK

32160-0478-18R

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1727

1
Out of stock

92015A

NUT,POP,6MM,L=16.5

92015-1792

1
Out of stock

92015B

NUT,STEERING STEM,35MM

92015-1848

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92049A

SEAL-OIL,MX043N2

92049-1483

1
Out of stock

92154

BOLT,FLANGED,10X30

92154-0156

1
Out of stock

92200

WASHER,25.5X42X2.3

92200-0105

1
Out of stock

92200A

WASHER,CLAW,25.5X40X2.3

92200-1083

1
Out of stock

92210

NUT,CAP,25MM

92210-1166

1
Out of stock
