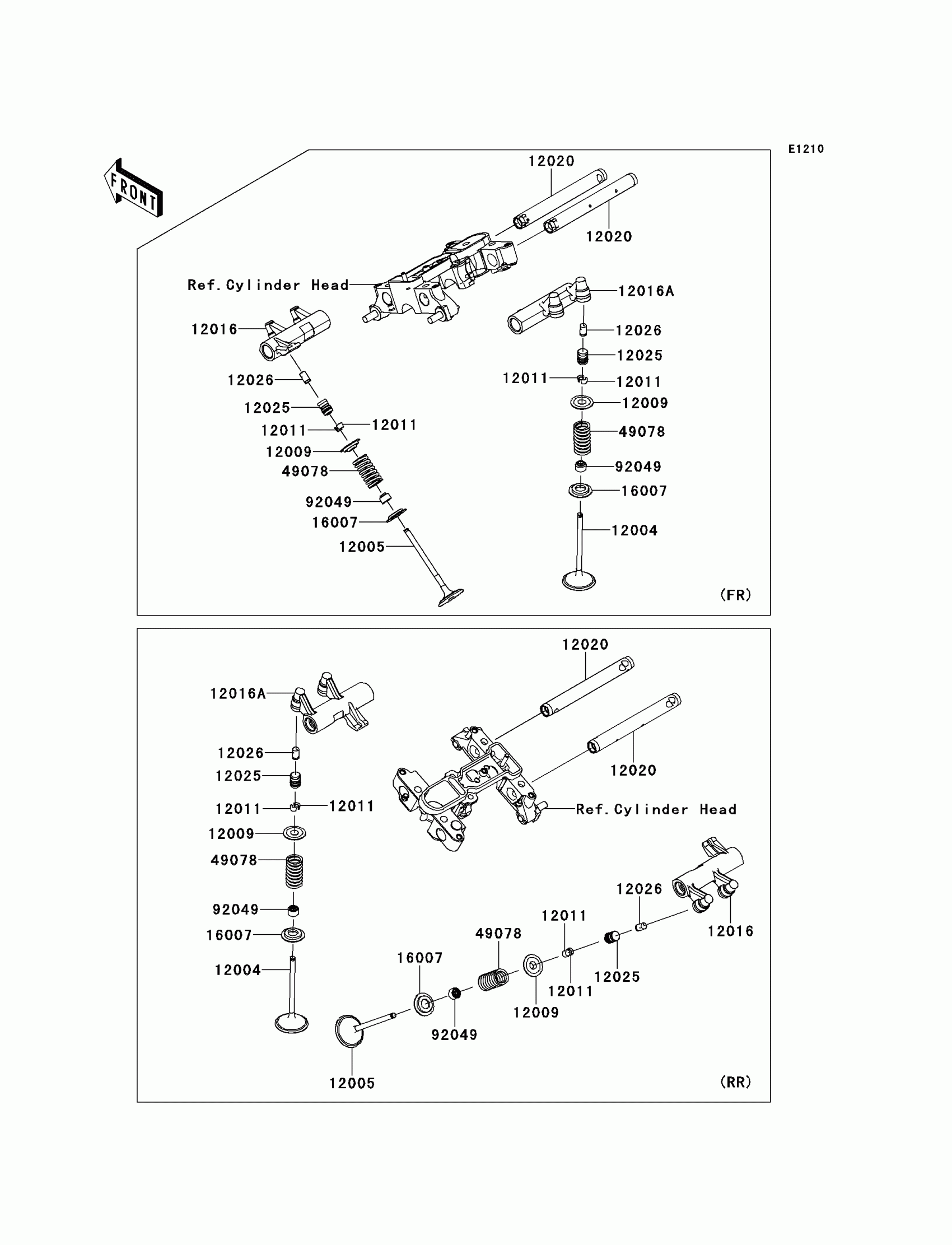

Kawasaki VULCAN® 1700 NOMAD™ Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0001

$72.66

12005

VALVE-EXHAUST

12005-0001

$79.77

12009

RETAINER-VALVE SPRING

12009-0002

$13.54

12011

COLLET

12011-0001

$4.61

12016

ARM-ROCKER

12016-0027

$176.63

12016A

ARM-ROCKER

12016-0028

$176.63

12020

SHAFT-ROCKER

12020-0008

$58.53

12025

ADJUSTER-LASH

12025-1053

$105.34

12026

CHAMBER,OIL

12026-1001

$6.70

16007

SEAT-SPRING

16007-0001

$4.14

49078

SPRING-ENGINE VALVE

49078-0001

$15.20

92049

SEAL-OIL,RVC2 6 10.5 9.4

92049-0009

$11.73
