2012 Kawasaki Vulcan® 1700 Nomad™ Right Engine Cover Diagram

← All diagrams

Find the part on the Right Engine Cover diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

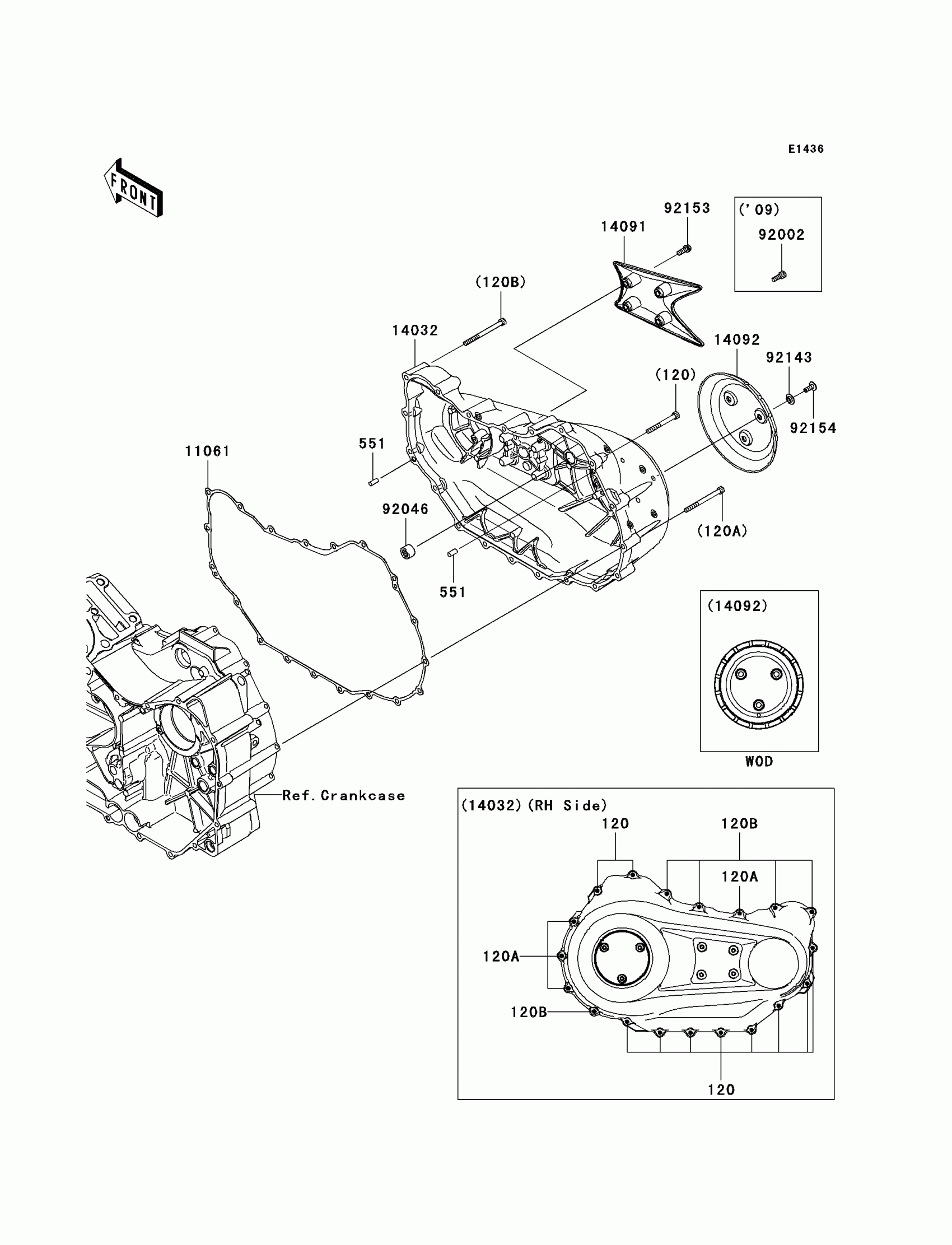

2012 Kawasaki Vulcan® 1700 Nomad™ Right Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X50

120CC0650

1
Out of stock

120A

BOLT-SOCKET,6X65

120CC0665

1
Out of stock

120B

BOLT-SOCKET,6X75

120CC0675

1
Out of stock

551

PIN-DOWEL,6X14

551A0614

1
Out of stock

11061

GASKET,CLUTCH COVER

11061-0337

1
Out of stock

14032

COVER-CLUTCH

14032-0141

1

$678.78

In stock

14091

COVER,CLUTCH,OUTER

14091-0995

1
Out of stock

14092

COVER,CLUTCH OUTER

14092-0033

1
Out of stock

92046

BEARING-NEEDLE,HK1212V11

92046-1292

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92153

BOLT,6X16

92153-0825

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-0257

1
Out of stock
