2005 Kawasaki Vulcan 1600 Nomad Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2005 Kawasaki Vulcan 1600 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

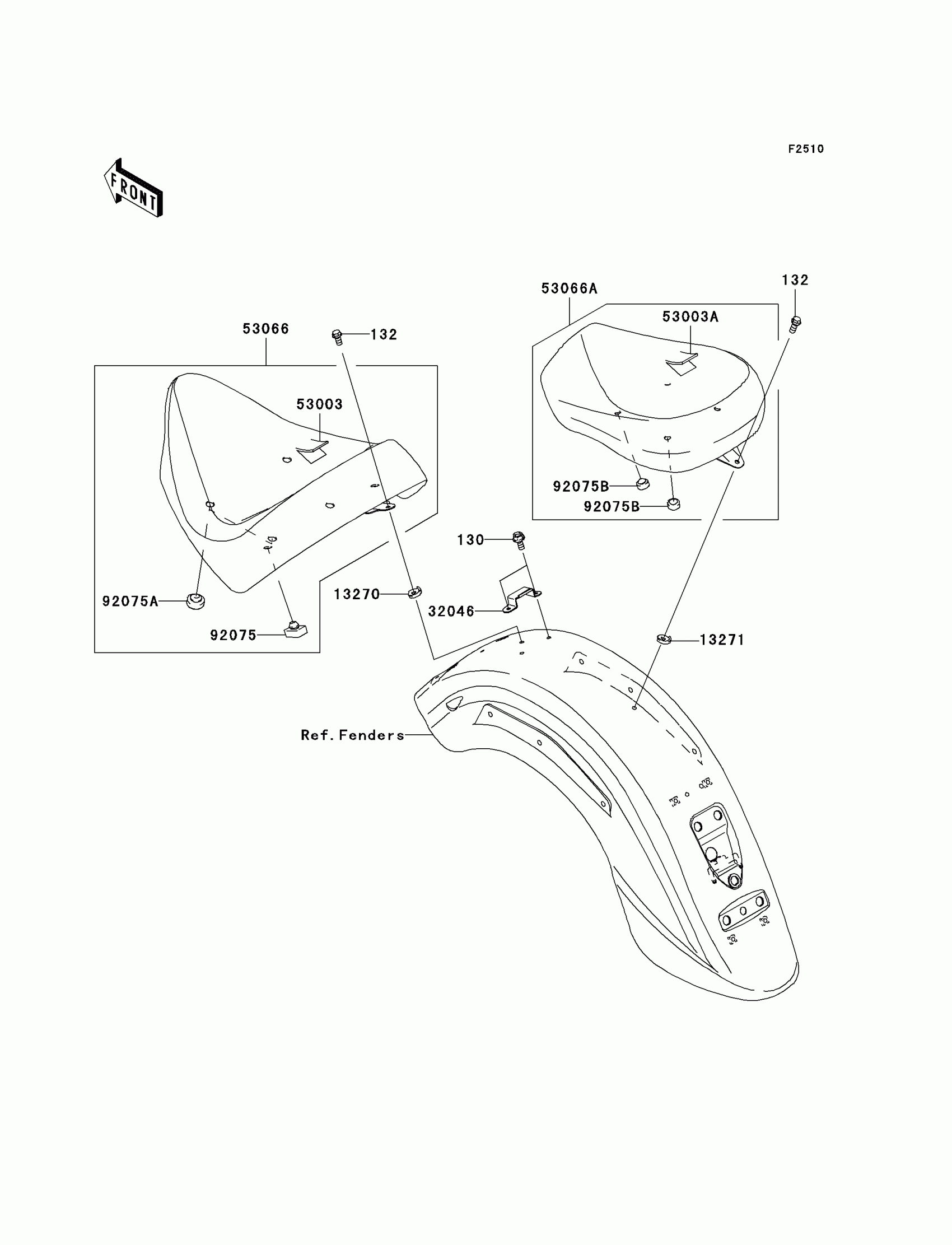

2005 Kawasaki Vulcan 1600 Nomad Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

132

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

13270

PLATE,SEAT

13270-1484

1
Out of stock

13271

PLATE,RR SEAT,RR

13271-0558

1
Out of stock

32046

BRACKET-SEAT

32046-1537

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-0029-MA

1

$261.05

In stock

53003A

LEATHER,REAR SEAT,BLACK

53003-0030-MA

1

$233.75

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0054-MA

1

$785.85

In stock

53066A

SEAT-ASSY,RR,BLACK

53066-0090-MA

1

$559.22

In stock

92075

DAMPER

92075-099

1

$4.37

In stock

92075A

DAMPER

92075-1045

1

$7.04

In stock

92075B

DAMPER,10X20X8

92075-1927

1

$3.49

In stock
