2005 Kawasaki Vulcan 1600 Nomad Saddlebags Diagram

← All diagrams

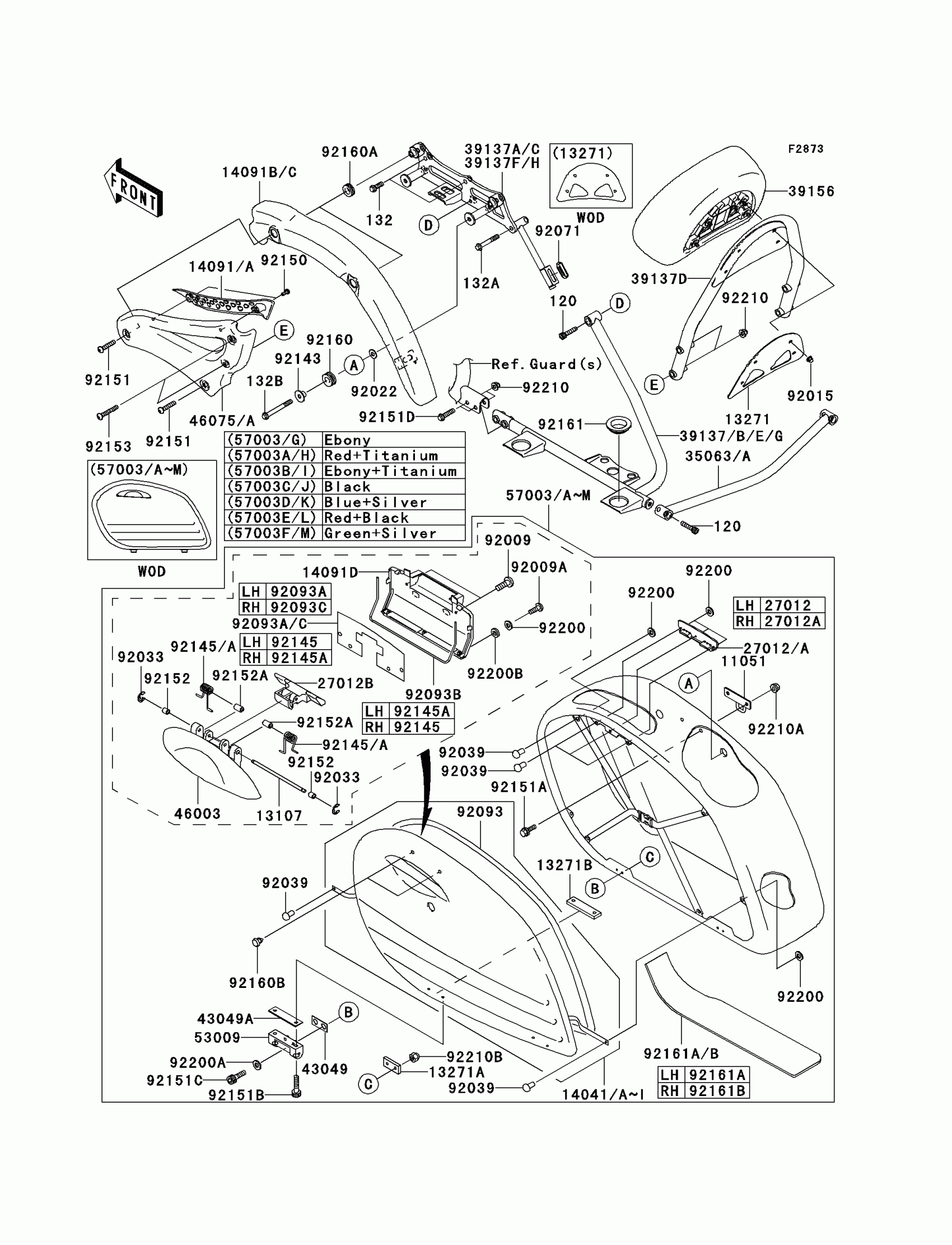

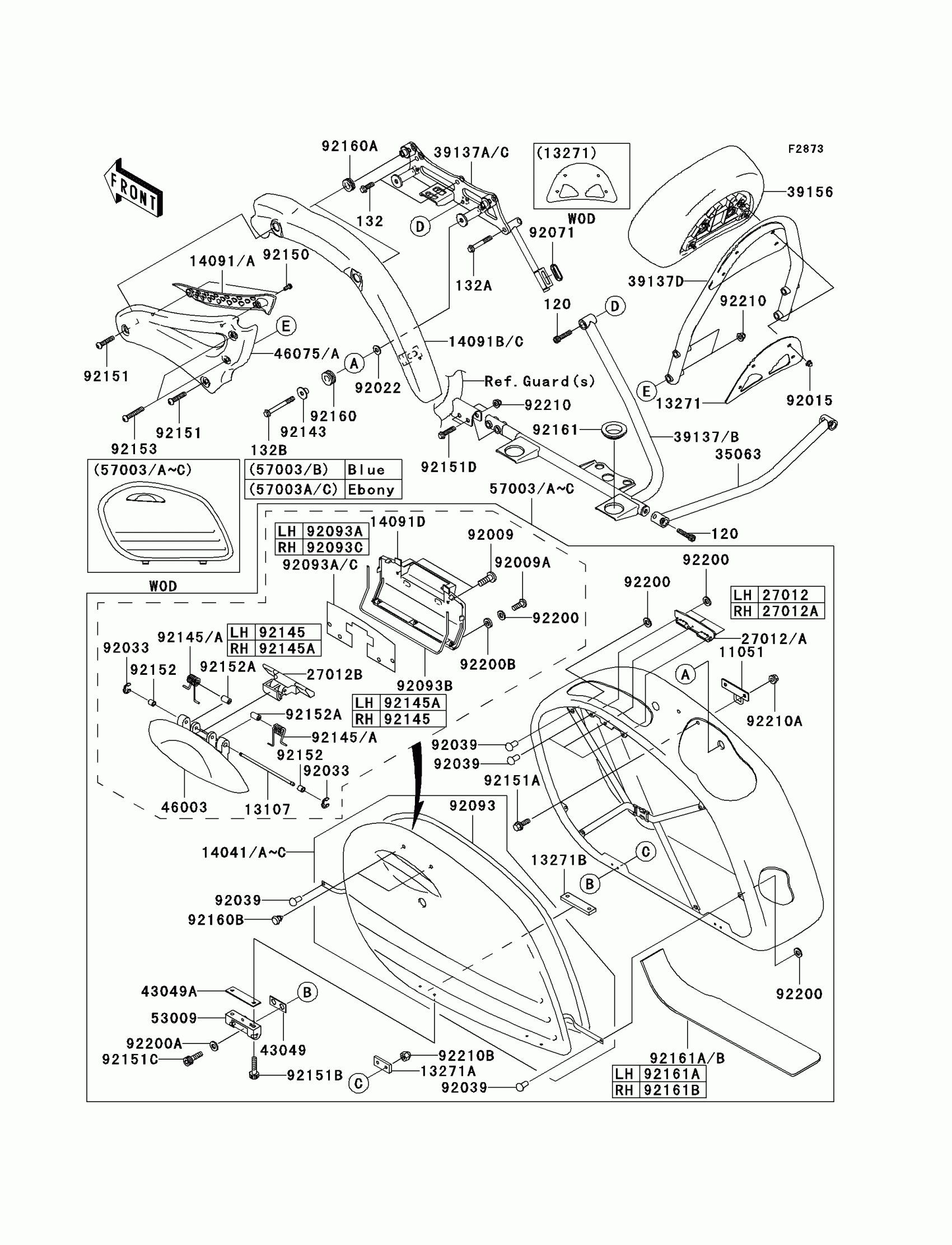

Find the part on the Saddlebags diagram for your 2005 Kawasaki Vulcan 1600 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Nomad Saddlebags Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,SIDE BAG BODY

11051-1104

1
Out of stock

13107

SHAFT

13107-1403

1
Out of stock

13271

PLATE,BACKREST

13271-0404

1
Out of stock

13271A

PLATE

13271-1146

1
Out of stock

13271B

PLATE

13271-1147

1
Out of stock

14041

COVER-COMP,SIDE BAG,LH,SILVER

14041-1130-GU

1
Out of stock

14041A

COVER-COMP,SIDE BAG,LH,SILVER

14041-1130-474

1
Out of stock

14041B

COVER-COMP,SIDE BAG,RH,SILVER

14041-1131-GU

1
Out of stock

14041C

COVER-COMP,SIDE BAG,RH,SILVER

14041-1131-474

1
Out of stock

14091

COVER,GRIP,LH

14091-0346

1
Out of stock

14091A

COVER,GRIP,RH

14091-0347

1
Out of stock

14091B

COVER,SIDE BAG STAY,LH

14091-0438

1
Out of stock

14091C

COVER,SIDE BAG STAY,RH

14091-0440

1
Out of stock

14091D

COVER,LID MAINTENANCE

14091-1069

1
Out of stock

27012

HOOK,LOCK PLATE,LH

27012-1571

1
Out of stock

27012A

HOOK,LOCK PLATE,RH

27012-1572

1
Out of stock

27012B

HOOK,HANDLE

27012-1575

1
Out of stock

35063

STAY,SIDE BAG,CNT

35063-0155

1
Out of stock

39137

STAY-COMP,SIDE BAG,LH,LWR

39137-0005

1
Out of stock

39137A

STAY-COMP,SIDE BAG,LH,UPP

39137-0006

1
Out of stock

39137B

STAY-COMP,SIDE BAG,RH,LWR

39137-0007

1
Out of stock

39137C

STAY-COMP,SIDE BAG,RH,UPP

39137-0008

1
Out of stock

39137D

STAY-COMP,RR

39137-0009

1
Out of stock

39156

PAD,BACKREST,BLACK

39156-0095-MA

1
Out of stock

43049

PACKING

43049-1084

1
Out of stock

43049A

PACKING

43049-1086

1
Out of stock

46003

HANDLE,SIDE BAG

46003-1505

1
Out of stock

46075

GRIP,LH

46075-0021

1
Out of stock

46075A

GRIP,RH

46075-0022

1
Out of stock

53009

HINGE,SIDE BAG

53009-1104

1
Out of stock

57003

BAG,LH,BODY BLUE+COVER SILVER

57003-1084-729

1
Out of stock

57003A

BAG,LH,BODY EBONY+COVER SILVER

57003-1084-730

1
Out of stock

57003B

BAG,RH,BODY BLUE+COVER SILVER

57003-1085-729

1
Out of stock

57003C

BAG,RH,BODY EBONY+COVER SILVER

57003-1085-730

1
Out of stock

92009

SCREW,TAPPING,4X12

92009-1870

1
Out of stock

92009A

SCREW,TAPPING,3X8

92009-1871

1
Out of stock

92015

NUT,CAP,6MM

92015-1385

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

92033

RING-SNAP

92033-1300

1
Out of stock

92039

RIVET

92039-1236

1
Out of stock

120

BOLT-SOCKET,8X35

120S0835

1
Out of stock

132

BOLT-FLANGED-SMALL,8X25

132J0825

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X55

132J0855

1
Out of stock

132B

BOLT-FLANGED-SMALL,8X75

132J0875

1
Out of stock

92071

GROMMET

92071-0013

1
Out of stock

92093

SEAL,SIDE BAG COVER

92093-1486

1
Out of stock

92093A

SEAL,SIDE BAG,LH

92093-1487

1
Out of stock

92093B

SEAL

92093-1488

1
Out of stock

92093C

SEAL,SIDE BAG,RH

92093-1489

1
Out of stock

92143

COLLAR

92143-1450

1
Out of stock

92145

SPRING

92145-1175

1
Out of stock

92145A

SPRING

92145-1200

1
Out of stock

92150

BOLT,SOCKET,6X14

92150-1836

1
Out of stock

92151

BOLT,SOCKET,8X40

92151-1205

1
Out of stock

92151A

BOLT,FLANGED,6X16

92151-1435

1
Out of stock

92151B

BOLT,SOCKET,4X22

92151-1436

1
Out of stock

92151C

BOLT,SOCKET,4X18

92151-1437

1
Out of stock

92151D

BOLT,FLANGED,8X35

92151-1537

1
Out of stock

92152

COLLAR

92152-1121

1
Out of stock

92152A

COLLAR

92152-1122

1
Out of stock

92153

BOLT,SOCKET,8X50

92153-0420

1
Out of stock

92160

DAMPER

92160-1012

1
Out of stock

92160A

DAMPER

92160-1847

1
Out of stock

92160B

DAMPER

92160-1976

1
Out of stock

92161

DAMPER

92161-0237

1
Out of stock

92161A

DAMPER,SIDE BAG,LH

92161-1171

1
Out of stock

92161B

DAMPER,SIDE BAG,RH

92161-1176

1
Out of stock

92200

WASHER,3MM

92200-1442

1
Out of stock

92200A

WASHER,4MM

92200-1443

1
Out of stock

92200B

WASHER,3MM

92200-1444

1
Out of stock

92210

NUT,CAP,8MM

92210-1161

1
Out of stock

92210A

NUT,CAP,6MM

92210-1167

1
Out of stock

92210B

NUT,CAP,4MM

92210-1168

1
Out of stock
