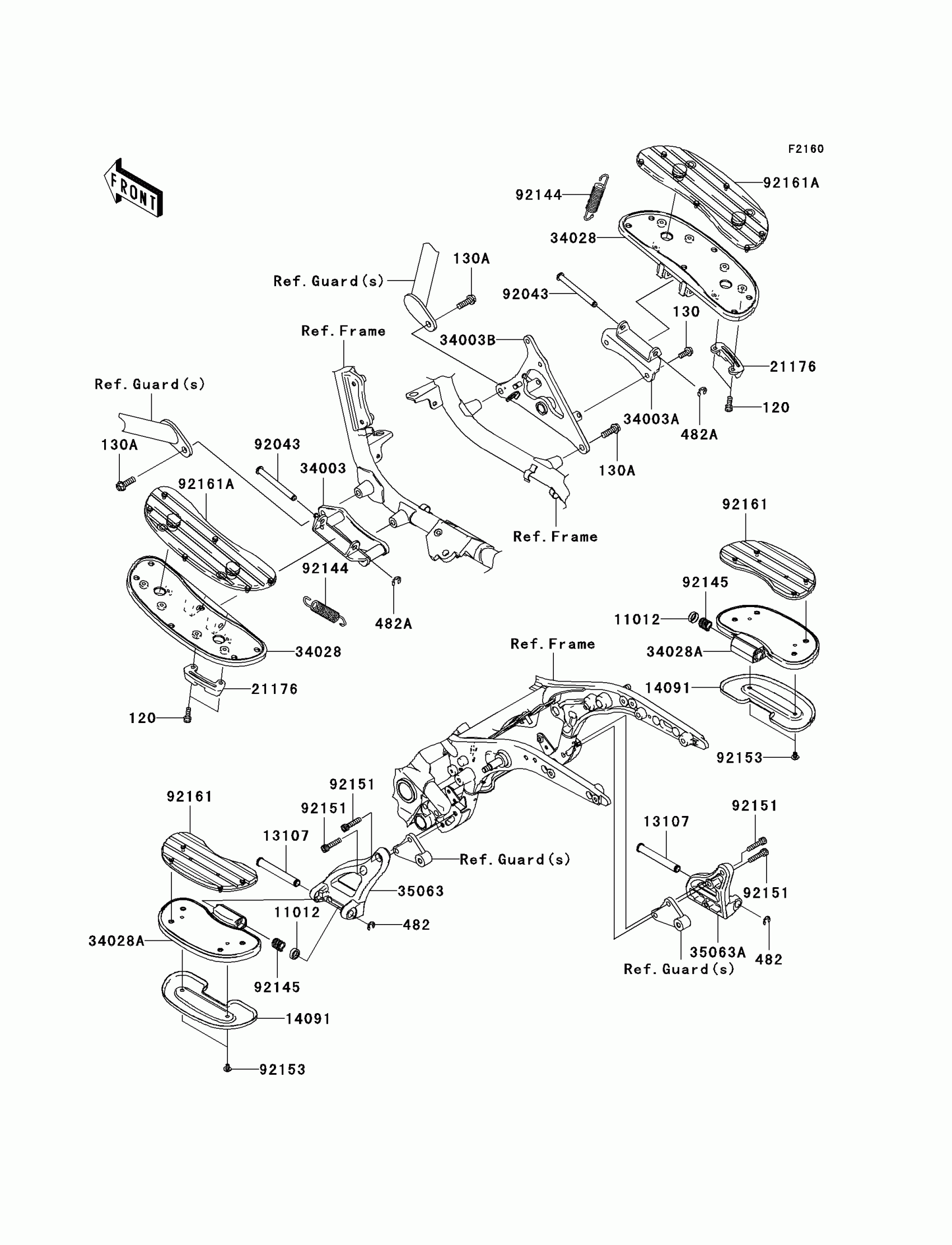

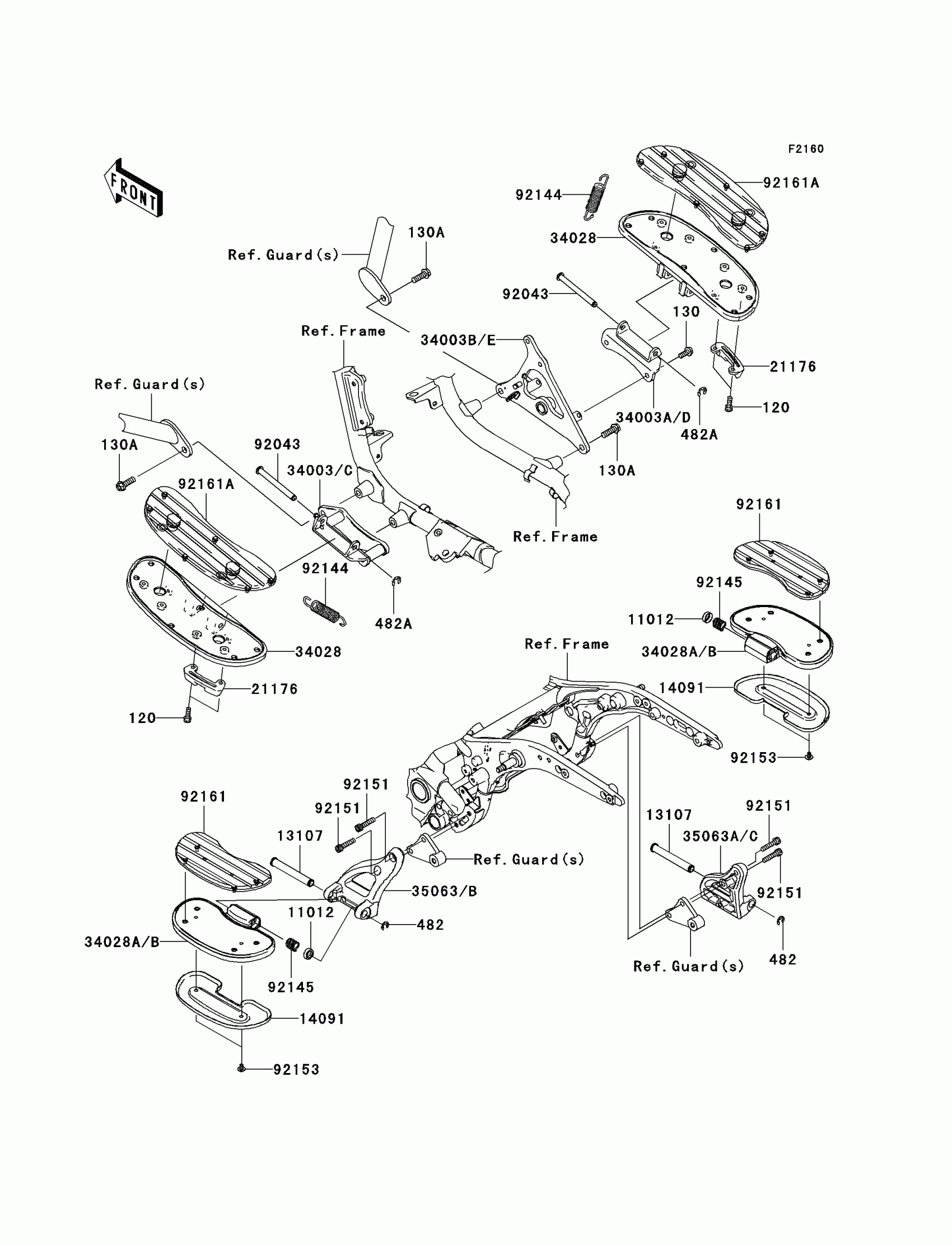

Find the part on the Footrests diagram for your 2005 Kawasaki Vulcan 1600 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Nomad Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130A

BOLT-FLANGED,10X30

130J1030

1
Out of stock

482

CIRCLIP-TYPE-E

482L0200

1
Out of stock

482A

CIRCLIP-TYPE-E,8MM

482L8000

1
Out of stock

11012

CAP

11012-1498

1
Out of stock

13107

SHAFT,REAR STEP

13107-0087

1
Out of stock

14091

COVER,REAR STEP

14091-0229

1
Out of stock

21176

SENSOR,BANK

21176-0021

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-0012

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-0013

1
Out of stock

34003B

HOLDER-STEP,FR,RH

34003-0014

1
Out of stock

34028

STEP,FR

34028-0011

1
Out of stock

34028A

STEP,RR

34028-0028

1
Out of stock

35063

STAY,REAR STEP,LH

35063-0149

1
Out of stock

35063A

STAY,REAR STEP,RH

35063-0150

1
Out of stock

92043

PIN,10X98.5

92043-1707

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92145

SPRING,REAR STEP

92145-1130

1
Out of stock

92151

BOLT,SOCKET,8X35

92151-1535

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1096

1
Out of stock

92161

DAMPER,REAR STEP

92161-0145

1
Out of stock

92161A

DAMPER,FRONT STEP

92161-1325

1
Out of stock
