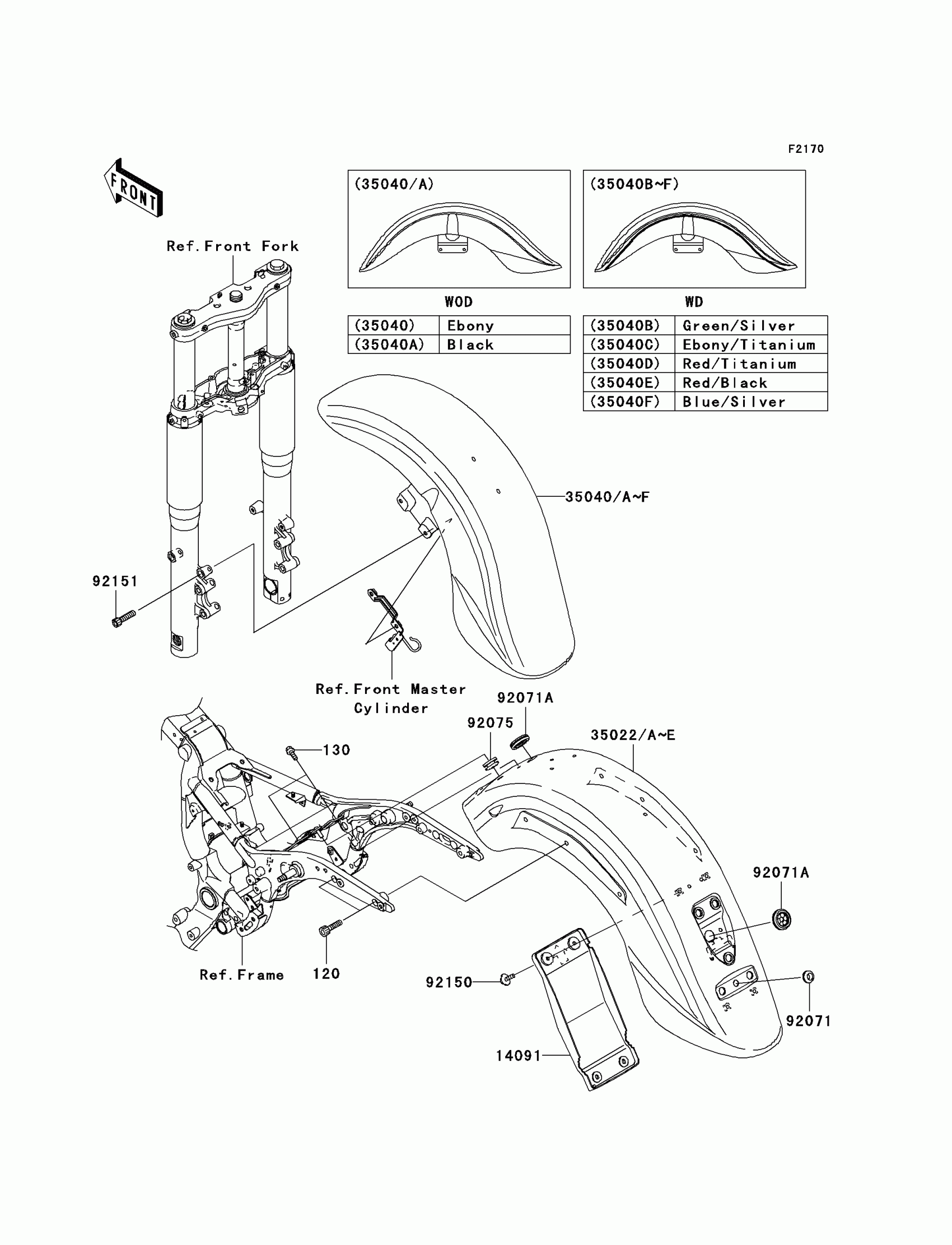

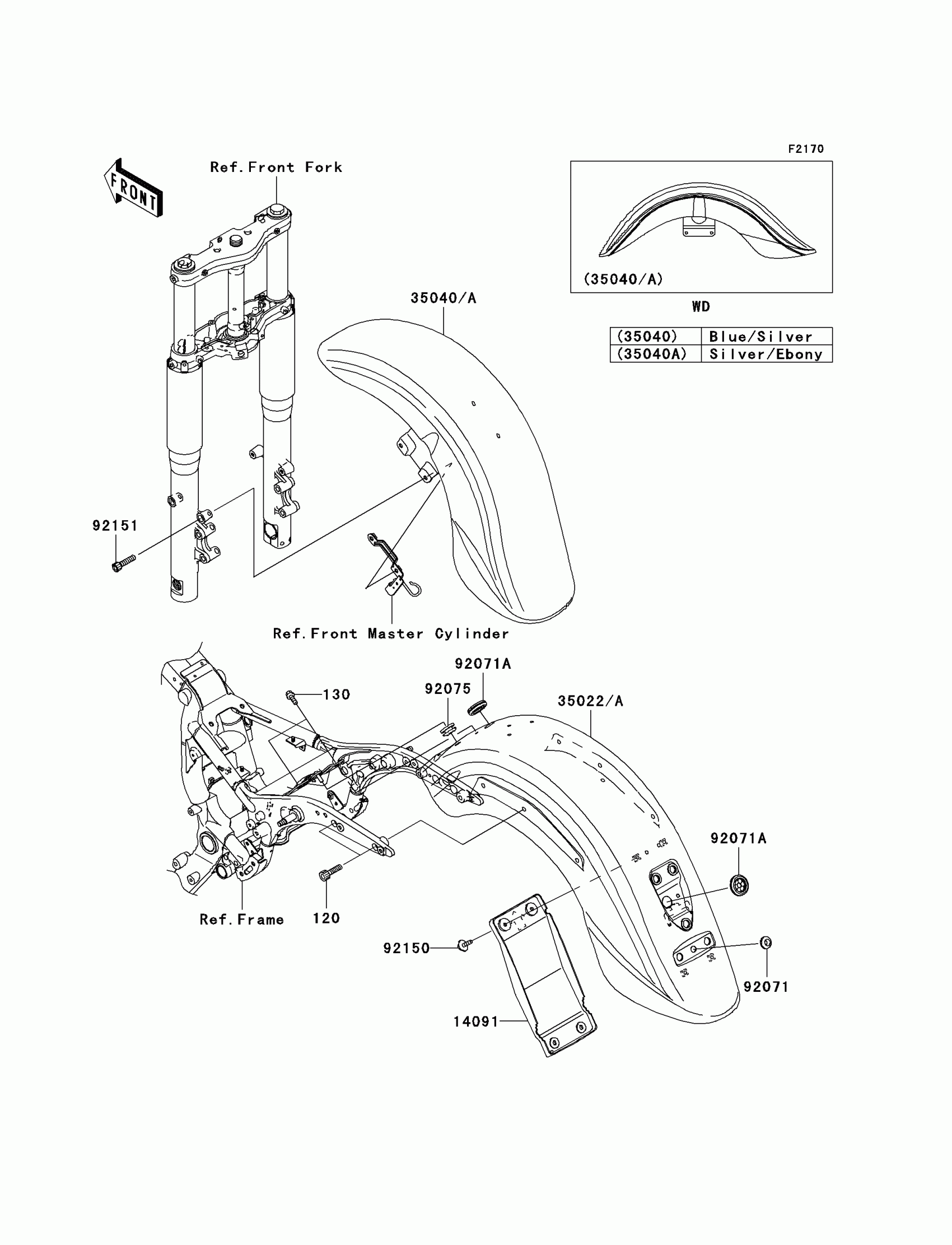

Kawasaki Vulcan 1600 Nomad Fenders Diagram

Description

Price

120

BOLT-SOCKET,8X30

120S0830

Unavailable

130

BOLT-FLANGED,8X16

130J0816

Unavailable

14091

COVER,TAIL LAMP

14091-0370

$24.92

35022

FENDER-COMP-REAR,EBONY

35022-0024-H8

$1,074.96

35022A

FENDER-COMP-REAR,M.O.BLUE

35022-0024-726

$1,151.60

35040

FENDER-COMP-FRONT,BLUE/SILVER

35040-5002-728

$825.22

35040A

FENDER-COMP-FRONT,SILVER/EBONY

35040-5003-686

$765.10

92071

GROMMET,10MM

92071-019

$2.97

92071A

GROMMET

92071-1265

$4.12

92075

DAMPER

92075-1067

$3.57

92150

BOLT,FLANGED,6X14

92150-1689

$3.01

92151

BOLT,SOCKET,8X35

92151-1535

$2.07
