2008 Kawasaki Vulcan® 1600 Classic Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2008 Kawasaki Vulcan® 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

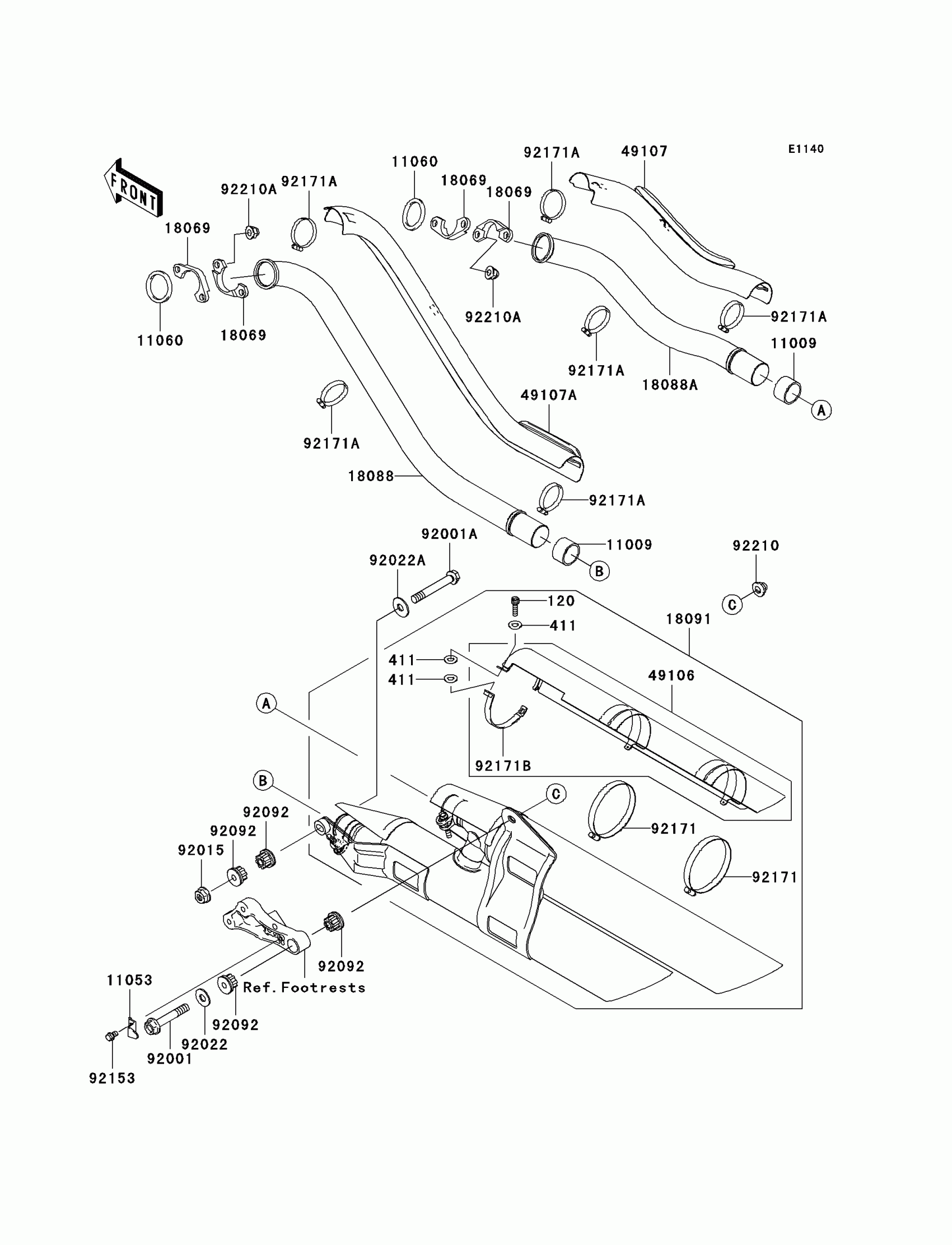

2008 Kawasaki Vulcan® 1600 Classic Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120R0620

1

$2.85

In stock

411

WASHER-PLAIN,6MM

411S0600

1

$1.73

In stock

11009

1

$30.00

In stock

11053

BRACKET

11053-0267

1

$2.51

In stock

11060

GASKET,EXHAUST PIPE

11060-1119

1

$7.60

In stock

18069

HOLDER-EXHAUST PIPE

18069-1161

1

$34.65

In stock

18088

PIPE-EXHAUST,FR

18088-1246

1

$515.36

In stock

18088A

PIPE-EXHAUST,RR

18088-1247

1

$515.36

In stock

18091

BODY-COMP-MUFFLER

18091-0192

1

$1,125.09

In stock

49106

COVER-MUFFLER

49106-0007

1

$196.51

In stock

49107

1

$281.08

In stock

49107A

1

$264.30

In stock

92001

BOLT,FLANGED,10X60

92001-1617

1

$9.95

In stock

92001A

BOLT,FLANGED,10X70

92001-1618

1

$8.23

In stock

92015

NUT,10MM

92015-1356

1

$2.97

In stock

92022

WASHER,10.5X26X2.3

92022-044

1

$3.12

In stock

92022A

1

$7.42

In stock

92092

1

$13.70

In stock

92153

BOLT,6X10

92153-0381

1
Out of stock

92171

CLAMP

92171-0048

1

$22.07

In stock

92171A

CLAMP

92171-0072

1

$9.42

In stock

92171B

CLAMP

92171-0373

1

$22.07

In stock

92210

NUT,CAP,10MM

92210-1121

1
Out of stock

92210A

NUT,CAP,8MM

92210-1132

1
Out of stock
