2008 Kawasaki Vulcan® 1600 Classic Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2008 Kawasaki Vulcan® 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

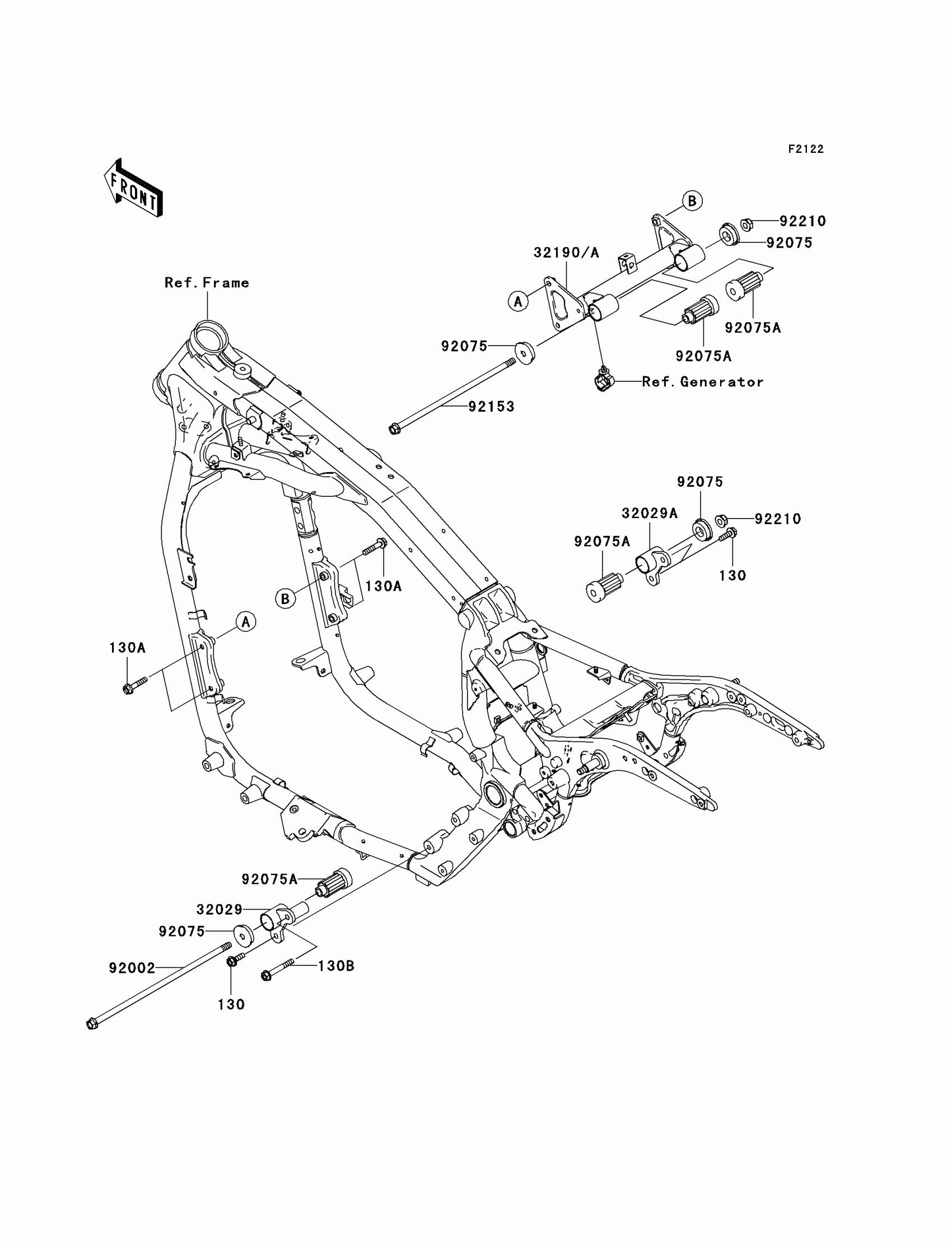

2008 Kawasaki Vulcan® 1600 Classic Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

130A

BOLT-FLANGED,8X40

130J0840

1
Out of stock

130B

BOLT-FLANGED,8X60

130J0860

1
Out of stock

32029

1

$65.97

In stock

32029A

1

$58.07

In stock

32190A

BRACKET-ENGINE,FR

32190-0336

1

$189.97

In stock

92002

BOLT,FLANGED,10X330

92002-1540

1
Out of stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1

$21.76

In stock

92075A

1

$29.30

In stock

92153

BOLT,FLANGED,10X285

92153-1909

1

$21.24

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock
