2008 Kawasaki Vulcan® 1600 Classic Crankcase Bolt Pattern Diagram

← All diagrams

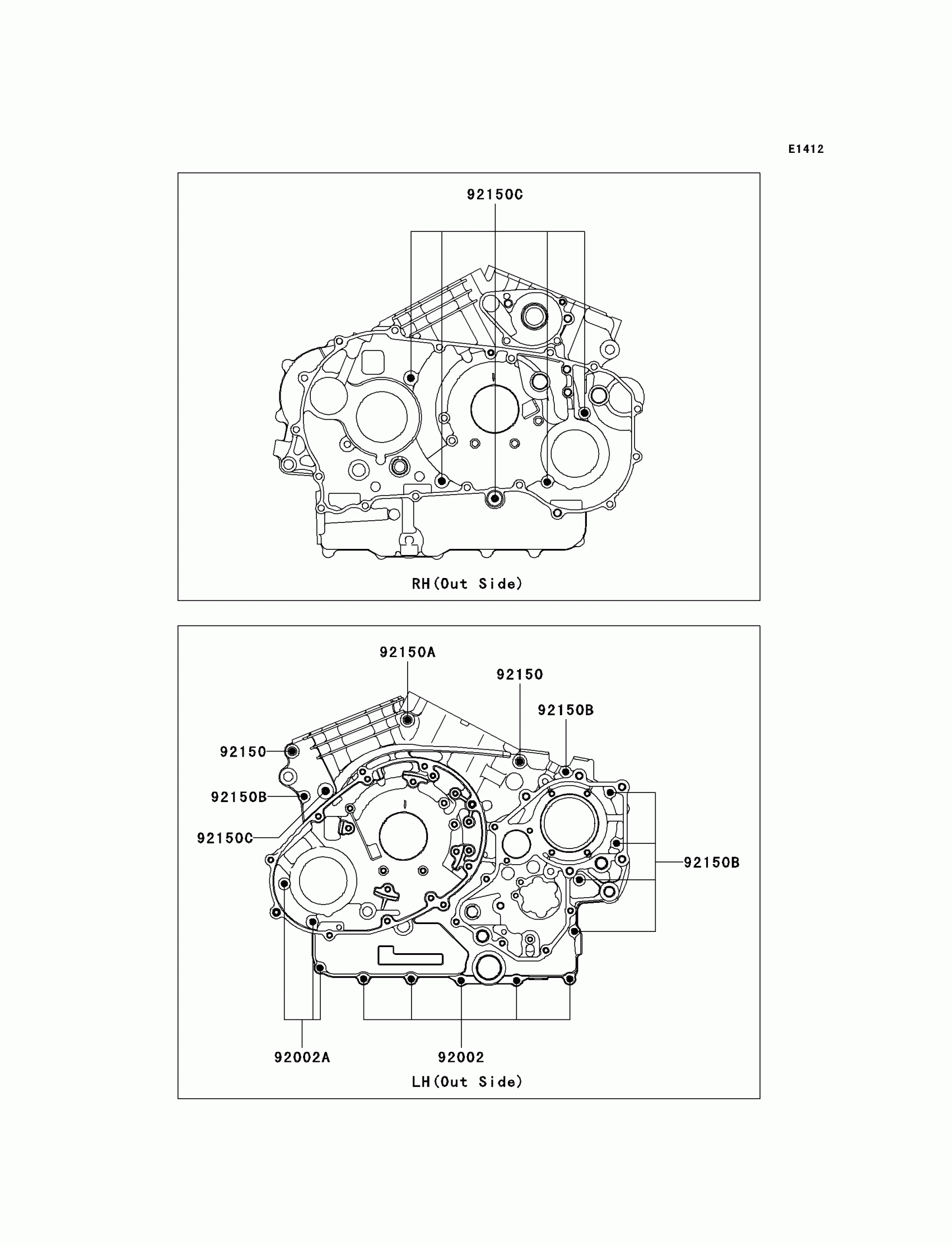

Find the part on the Crankcase Bolt Pattern diagram for your 2008 Kawasaki Vulcan® 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Vulcan® 1600 Classic Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

1
Out of stock

92002A

BOLT,FLANGED,6X80

92002-1568

1
Out of stock

92150

BOLT,10X105

92150-1993

1

$11.86

In stock

92150A

BOLT,10X115

92150-1994

1

$13.00

In stock

92150B

BOLT,6X70

92150-1995

1
Out of stock

92150C

BOLT,8X90

92150-1996

1

$5.00

In stock
