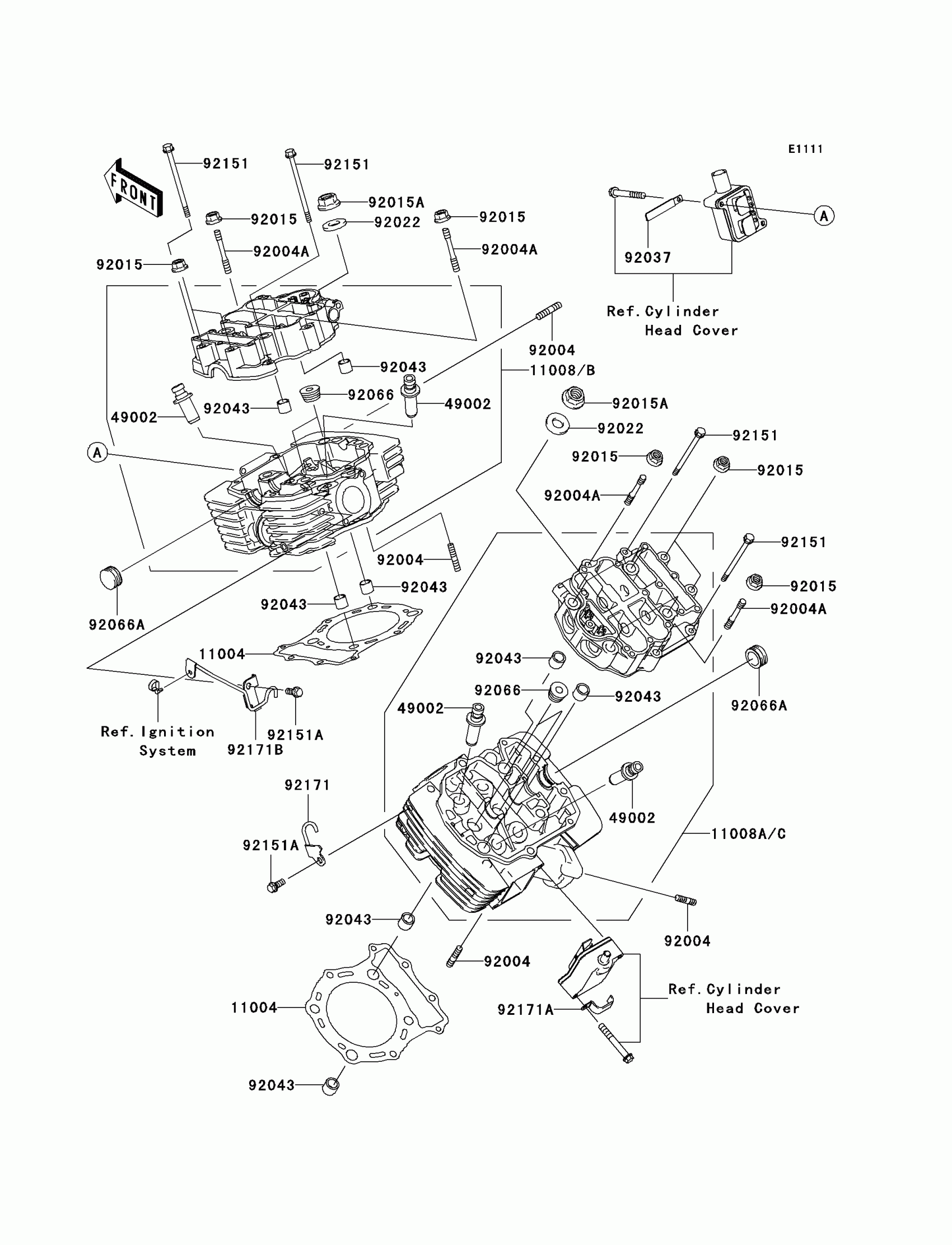

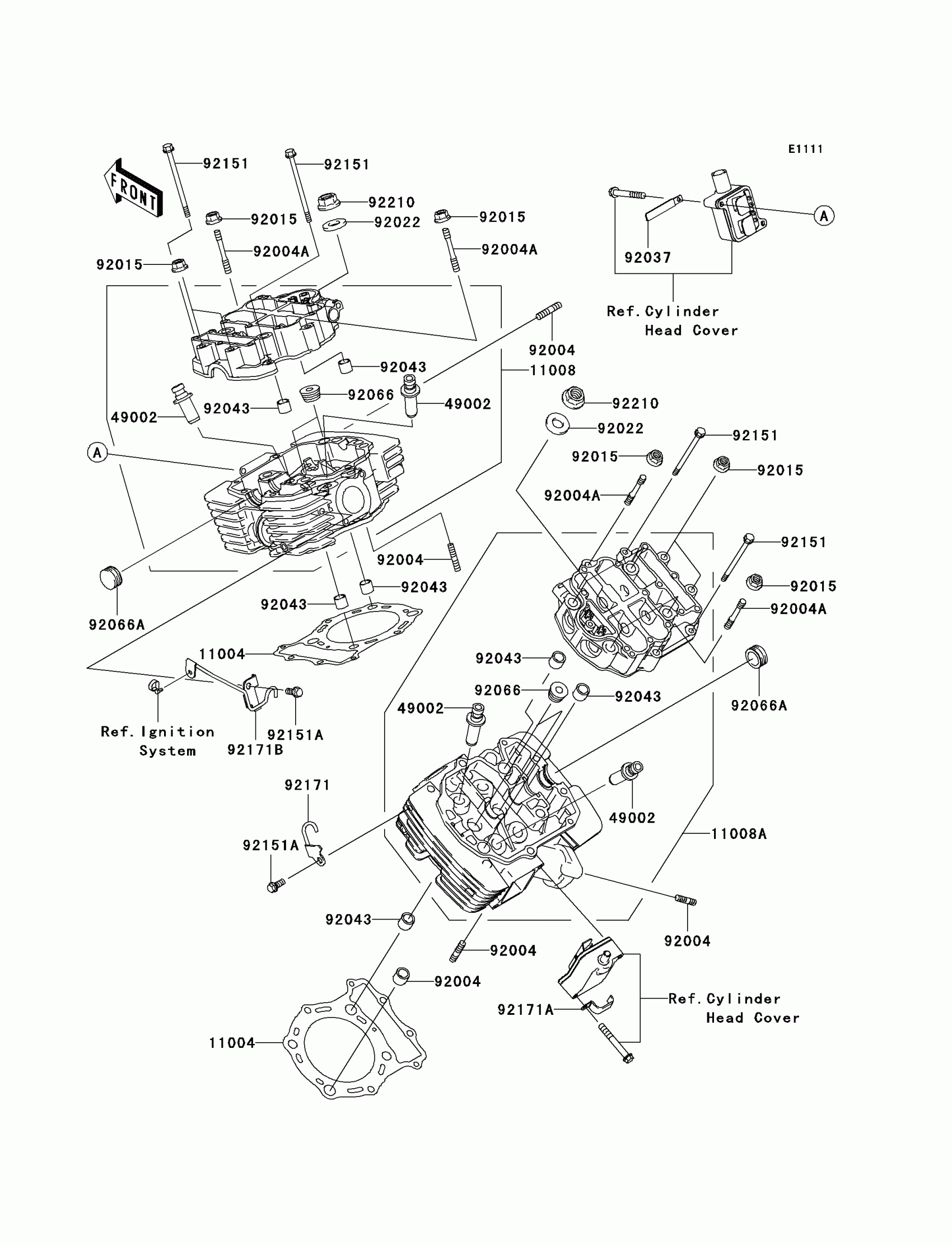

Kawasaki Vulcan 1600 Classic Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1334

$55.28

11008

HEAD-COMP-CYLINDER,FR

11008-0043

$1,567.98

11008A

HEAD-COMP-CYLINDER,RR

11008-0044

$1,567.98

49002

GUIDE-VALVE

49002-1088

Unavailable

92004

STUD,8X25

92004-1214

Unavailable

92004A

STUD,8X46.5

92004-1224

Unavailable

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT,12MM

92015-1991

Unavailable

92022

WASHER,12.3X25X3.2

92022-1862

$4.83

92037

CLAMP,L=45

92037-1539

$4.42

92043

PIN,13X16X14

92043-1608

$3.81

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92066A

PLUG

92066-0031

$7.26

92151

BOLT,6X115

92151-1058

$4.41

92151A

BOLT,6X14

92151-1423

$0.76

92171

CLAMP,HEAD,RR

92171-0005

$7.41

92171A

CLAMP

92171-0011

$5.61

92171B

CLAMP,HEAD,FR

92171-0127

$8.66
