2008 Kawasaki Vulcan® 1600 Classic Crankshaft Diagram

← All diagrams

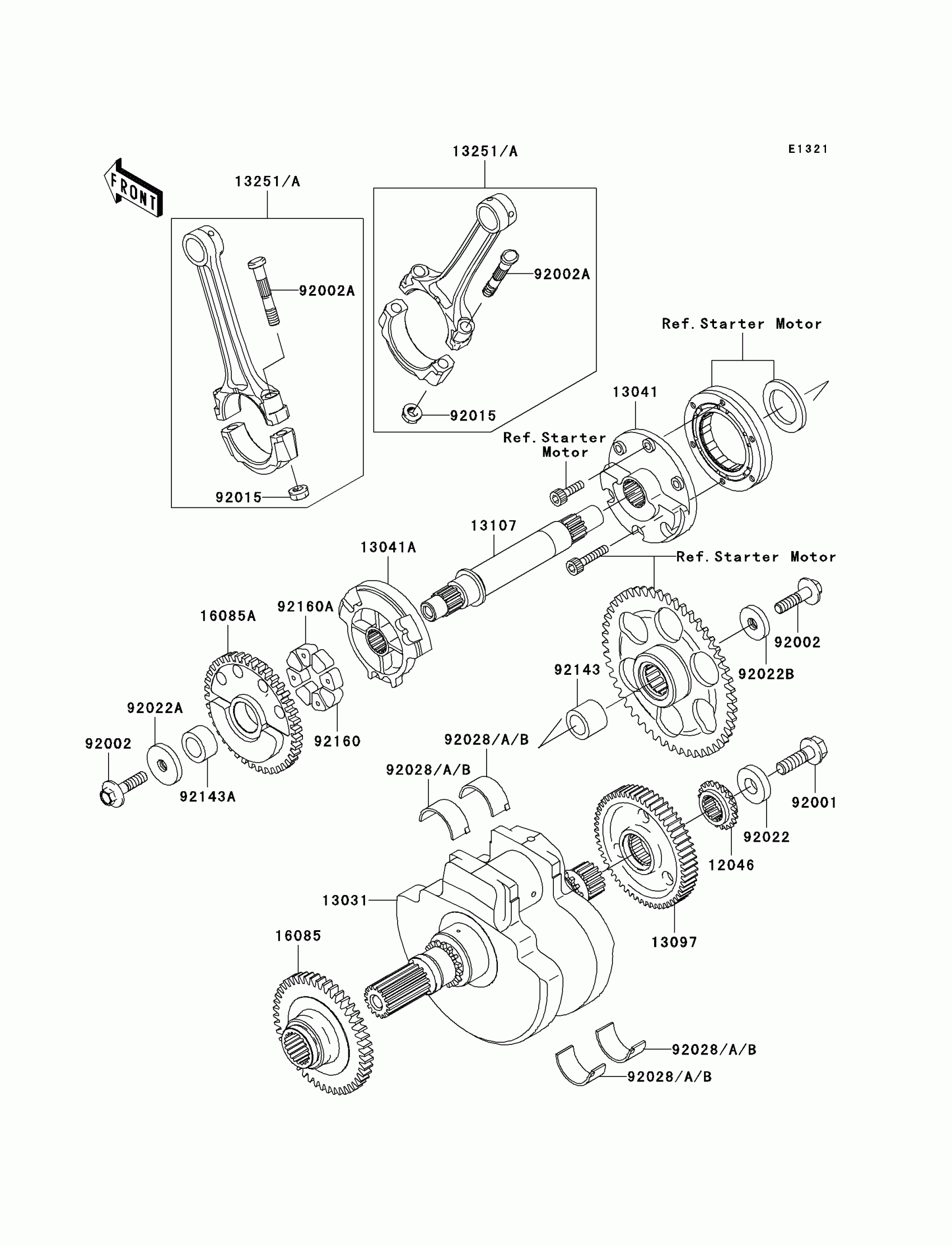

Find the part on the Crankshaft diagram for your 2008 Kawasaki Vulcan® 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Vulcan® 1600 Classic Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,WATER PUMP

12046-1103

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0019

1
Out of stock

13041

BALANCER,RH

13041-1089

1
Out of stock

13041A

BALANCER,LH

13041-1093

1
Out of stock

13097

GEAR-PRIMARY SPUR,56T

13097-1369

1
Out of stock

13107

SHAFT,BALANCER

13107-1524

1
Out of stock

13251

ROD-ASSY-CONNECTING,D

13251-1147-DD

1
Out of stock

13251A

ROD-ASSY-CONNECTING,G

13251-1147-GG

1
Out of stock

16085

GEAR,BALANCER,46T

16085-0023

1
Out of stock

16085A

GEAR,BALANCER,46T

16085-1366

1
Out of stock

92001

BOLT,FLANGED,12X40

92001-1146

1
Out of stock

92002

BOLT,FLANGED,10X40

92002-1296

1
Out of stock

92002A

BOLT,CONNECTING ROD

92002-1896

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1643

1
Out of stock

92022

WASHER,12X40X6

92022-1904

1
Out of stock

92022A

WASHER,10X40X6

92022-1905

1
Out of stock

92022B

WASHER,10X33X6

92022-1906

1
Out of stock

92028

BUSHING,CONNECTING ROD,BLUE

92028-1474

—
Out of stock

92028A

BUSHING,CONNECTING ROD,BLACK

92028-1475

—
Out of stock

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1476

—
Out of stock

92143

COLLAR,20X30X24

92143-1093

1
Out of stock

92143A

COLLAR,20X31X16

92143-1821

1
Out of stock

92160

DAMPER

92160-1725

1
Out of stock

92160A

DAMPER

92160-1726

1
Out of stock
