2003 Kawasaki Vulcan 1500 Mean Streak Meter Diagram

← All diagrams

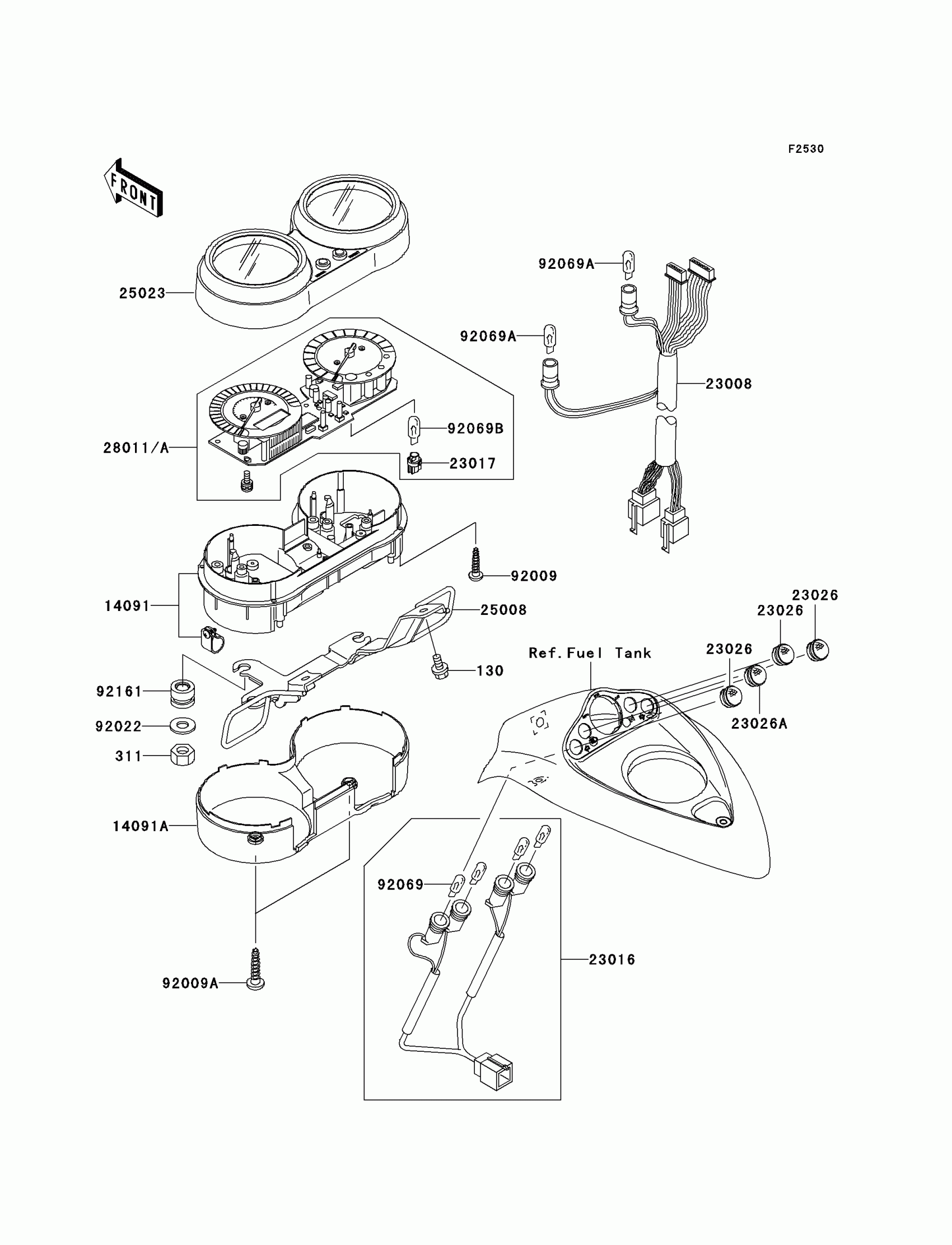

Find the part on the Meter diagram for your 2003 Kawasaki Vulcan 1500 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Vulcan 1500 Mean Streak Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

14091

COVER,METER HOUSING

14091-1370

1
Out of stock

14091A

COVER,METER,LWR

14091-1371

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1655

1
Out of stock

23016

LAMP-ASSY

23016-1192

1
Out of stock

23017

SOCKET

23017-1064

1
Out of stock

23026

LENS,GREEN

23026-1171

1
Out of stock

23026A

LENS,BLUE

23026-1172

1
Out of stock

25008

BRACKET-METER

25008-1230

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1261

1
Out of stock

92009

SCREW,TAPPING,3X14

92009-1592

1
Out of stock

92009A

SCREW,TAPPING,4X16

92009-1601

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92069B

BULB,14V 3W,T6.5

92069-1068

1
Out of stock

92161

DAMPER,METER BRACKET

92161-1247

1
Out of stock

28011

METER,SPEED&TACHO,MPH

28011-1224

1
Out of stock

28011A

METER,SPEED&TACHO,KPH

28011-1225

1
Out of stock
