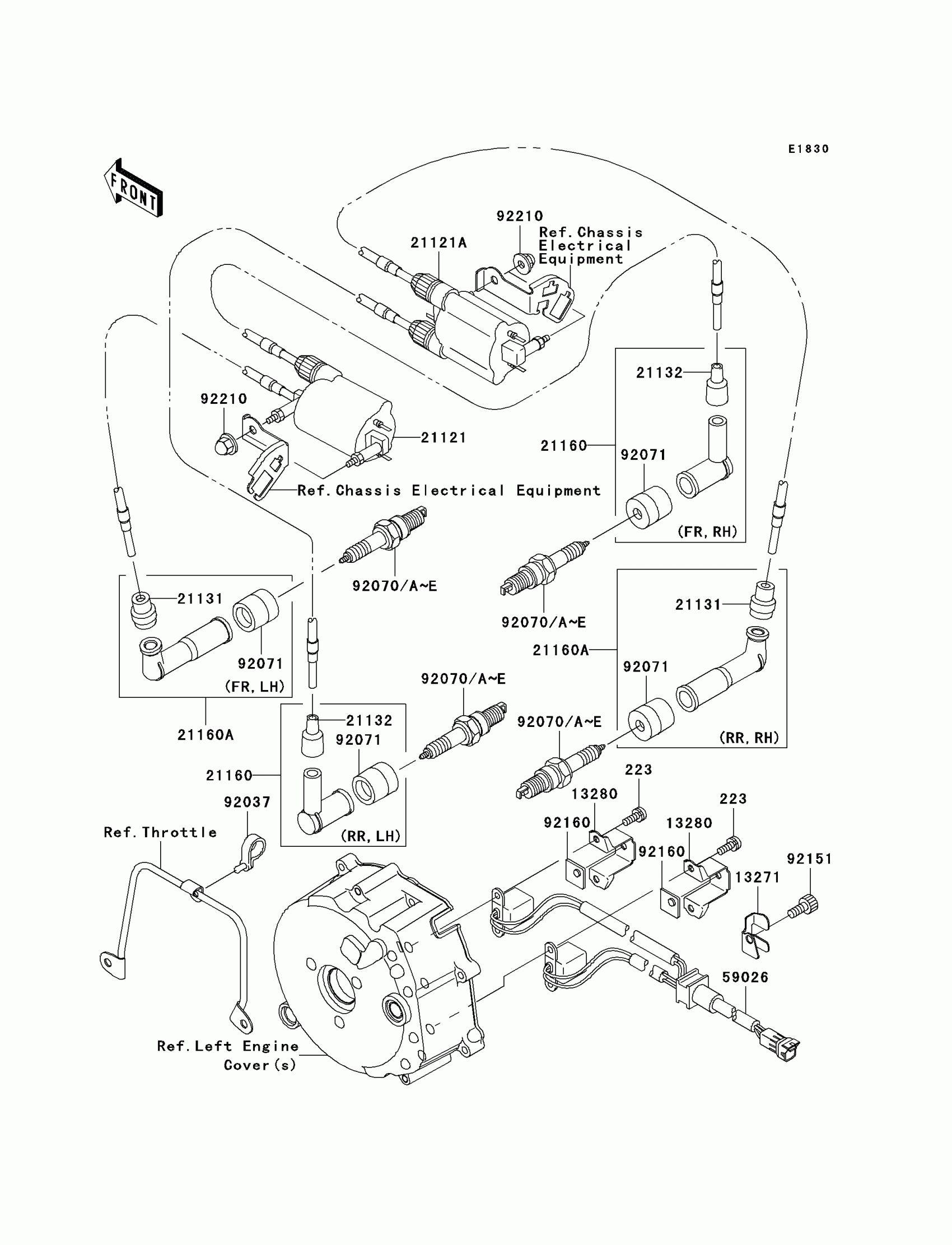

Find the part on the Ignition System diagram for your 2003 Kawasaki Vulcan 1500 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Vulcan 1500 Mean Streak Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

223

SCREW-PAN-WS-CROS,5X16

223B0516

1
Out of stock

13271

PLATE

13271-1339

1
Out of stock

13280

HOLDER

13280-1255

1
Out of stock

21121

COIL-IGNITION,FR

21121-1302

1
Out of stock

21121A

COIL-IGNITION,RR

21121-1303

1
Out of stock

21131

GROMMET,HIGH TENSION

21131-005

1
Out of stock

21132

GROMMET,HIGH TENSION

21132-005

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1085

1
Out of stock

21160A

CAP-ASSY-PLUG

21160-1091

1
Out of stock

59026

COIL-PULSING

59026-1158

1
Out of stock

92037

CLAMP,SPEED,L=43

92037-1290

1
Out of stock

92070

Not Available As Spare Part - Friction Washer

—
Out of stock

92070A

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

—
Out of stock

92070B

PLUG-SPARK,DPR6EA9(NGK)

92070-1138

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

—
Out of stock

92070D

PLUG-SPARK,DPR5EA9(NGK)

92070-1250

—
Out of stock

92070E

Not Available As Spare Part - Friction Washer

—
Out of stock

92071

GROMMET,PLUG CAP

92071-1184

1
Out of stock

92151

BOLT,6X10

92151-3704

1
Out of stock

92160

DAMPER

92160-1091

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock
