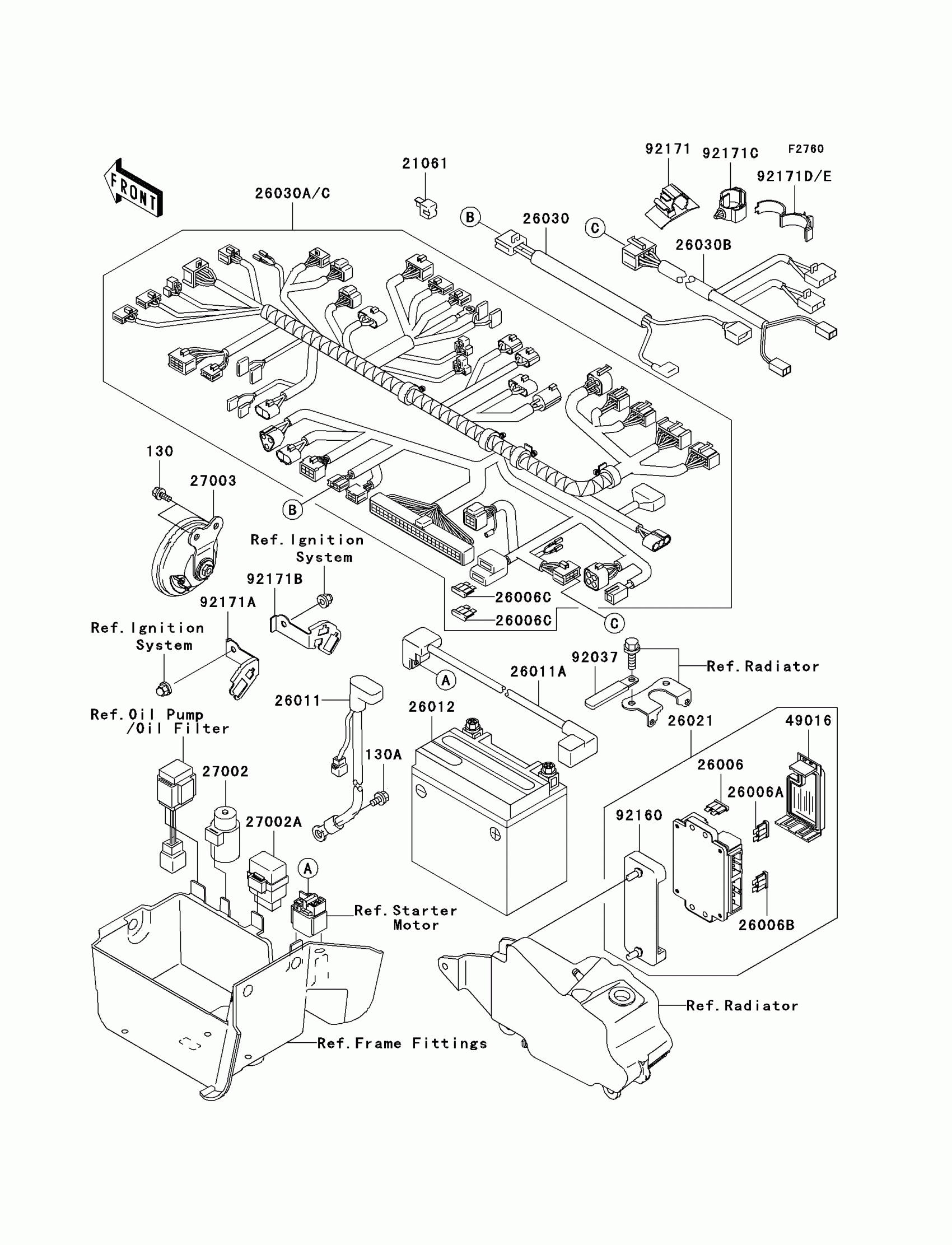

Kawasaki Vulcan 1500 Mean Streak Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X10

130V0610

Unavailable

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006A

FUSE,BLADE,10A,RED

26006-1007

$3.78

26006B

FUSE,BLADE,15A,BLUE

26006-1061

$4.80

26006C

FUSE,15A-B

26006-1069

$4.80

26011

WIRE-LEAD,BATTERY(-)

26011-1750

$61.63

26011A

WIRE-LEAD,BATTERY(+)

26011-1764

$48.80

26012

BATTERY,MF,FTZ16-BS,12V 18AH

26012-1371

$177.03

26021

JUNCTION BOX

26021-0002

Unavailable

26030

HARNESS,SUB

26030-1450

$20.51

26030B

HARNESS,RR

26030-1877

$115.26

26030C

HARNESS,MAIN

26030-1950

$594.53

27002

RELAY-ASSY

27002-1051

$48.39

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1113

$118.36

27003

HORN

27003-1431

$98.10

49016

COVER-SEAL,FUSE

49016-0005

Unavailable

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92160

DAMPER,JUNCTION BOX

92160-1650

$12.78

92171

CLAMP,HARNESS

92171-1269

$4.27

92171A

CLAMP,IGNITION COIL,LH

92171-1369

$11.20

92171B

CLAMP,IGNITION COIL,RH

92171-1370

$10.58

92171C

CLAMP,13MM DIA.

92171-1415

$1.69

92171D

CLAMP,10MM DIA.

92171-1423

$3.75

92171E

CLAMP,DIA=15

92171-1424

$3.19
