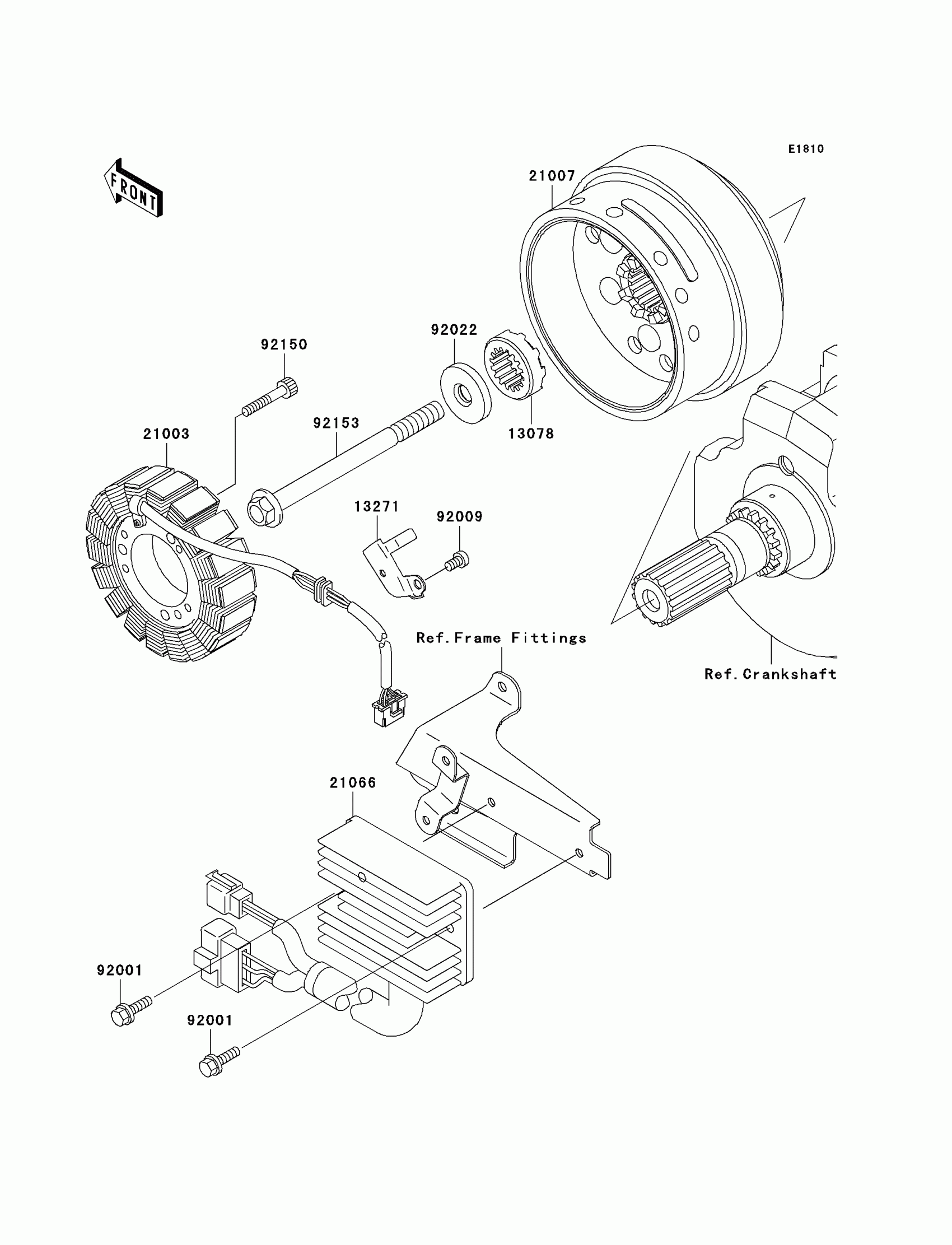

Find the part on the Generator diagram for your 2003 Kawasaki Vulcan 1500 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Kawasaki Vulcan 1500 Mean Streak Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13078

RATCHET

13078-1056

1

$67.67

In stock

13271

PLATE

13271-1328

1
Out of stock

21003

STATOR,OUTER

21003-1373

1

$687.75

In stock

21007

ROTOR

21007-1354

1

$1,100.51

In stock

21066

REGULATOR-VOLTAGE

21066-1126

1
Out of stock

92001

BOLT,6X20

92001-1947

1

$3.46

In stock

92009

SCREW

92009-1768

1
Out of stock

92022

WASHER,12X40X6

92022-1904

1
Out of stock

92150

BOLT,SOCKET,6X35

92150-1484

1

$4.93

In stock

92153

BOLT,12X154

92153-1105

1
Out of stock
