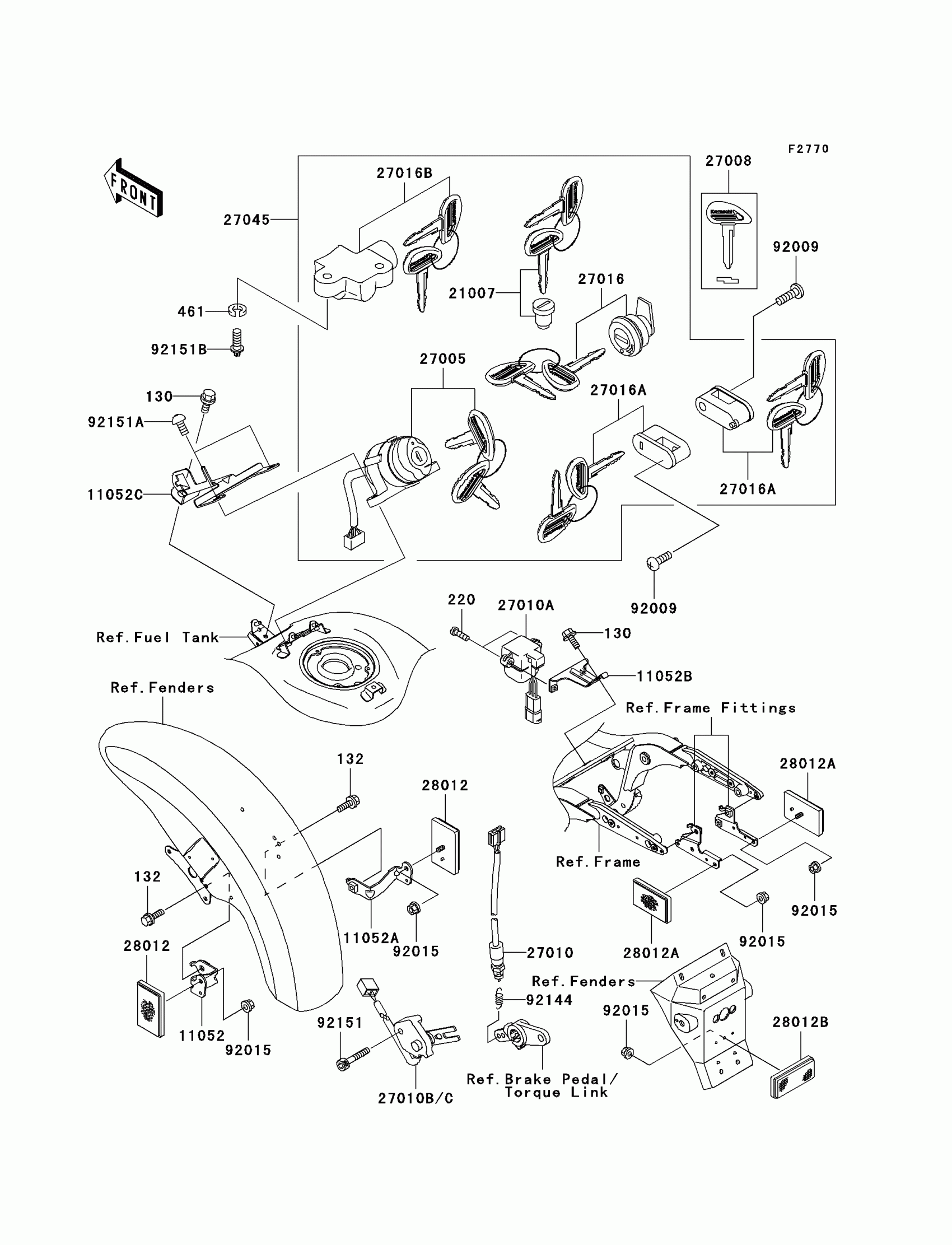

Kawasaki Vulcan 1500 Mean Streak Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED

130J0610

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

220

SCREW-PAN-CROS,4X20

220C0420

Unavailable

461

WASHER-SPRING

461L0600

$0.66

11052

BRACKET,REFLECTOR,FR,LH

11052-1284

$14.63

11052A

BRACKET,REFLECTOR,FR,RH

11052-1285

$14.63

11052B

BRACKET,DOWN SENSOR

11052-1302

$17.39

11052C

BRACKET,IGNITION SWITCH

11052-1494

$18.47

21007

ROTOR,LOCK,TANK CAP

21007-5049

$60.27

27005

SWITCH-ASSY-IGNITION

27005-1258

$181.99

27008

KEY-LOCK,BLANK

27008-1211

$28.56

27010

SWITCH,REAR BRAKE

27010-1412

Unavailable

27010A

SWITCH,DOWN SENSOR

27010-1416

Unavailable

27010C

SWITCH,SIDE STAND

27010-1470

$71.61

27016

LOCK-ASSY,LID

27016-5279

$74.62

27016A

LOCK-ASSY,HELMET

27016-5280

$69.10

27016B

LOCK-ASSY,STEERING

27016-5281

$72.85

27045

SWITCH-ASSY

27045-5136

$654.26

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

28012A

REFLECTOR-REFLEX,RR

28012-1051

$24.63

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

92009

SCREW,5X12

92009-1296

$3.53

92015

NUT,FLANGED,5MM

92015-1656

$2.00

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92151

BOLT,SOCKET,6X35

92151-1390

$2.03

92151A

BOLT,SOCKET,6X16

92151-1751

$1.76

92151B

BOLT,TORX,6X22

92151-1946

$3.01
