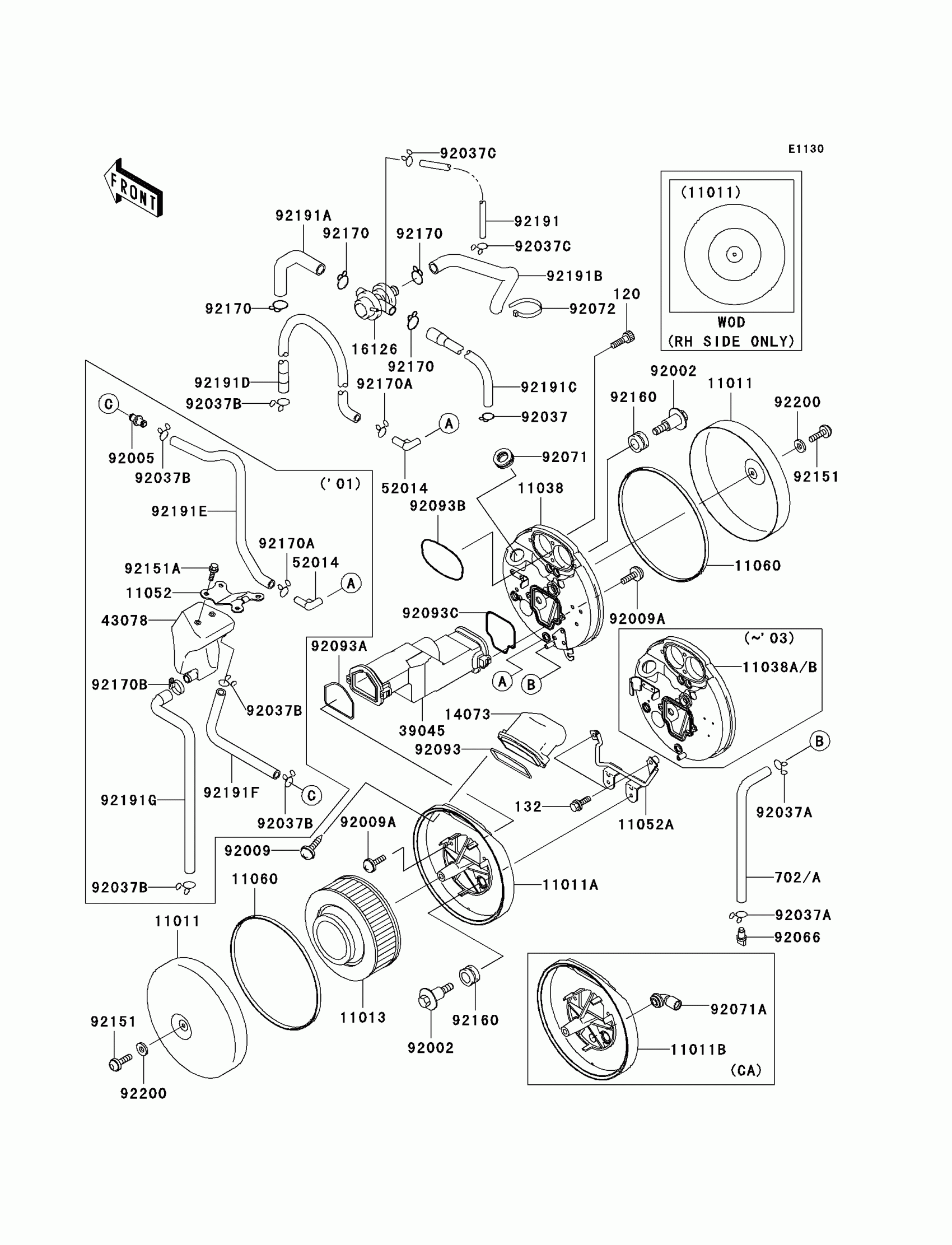

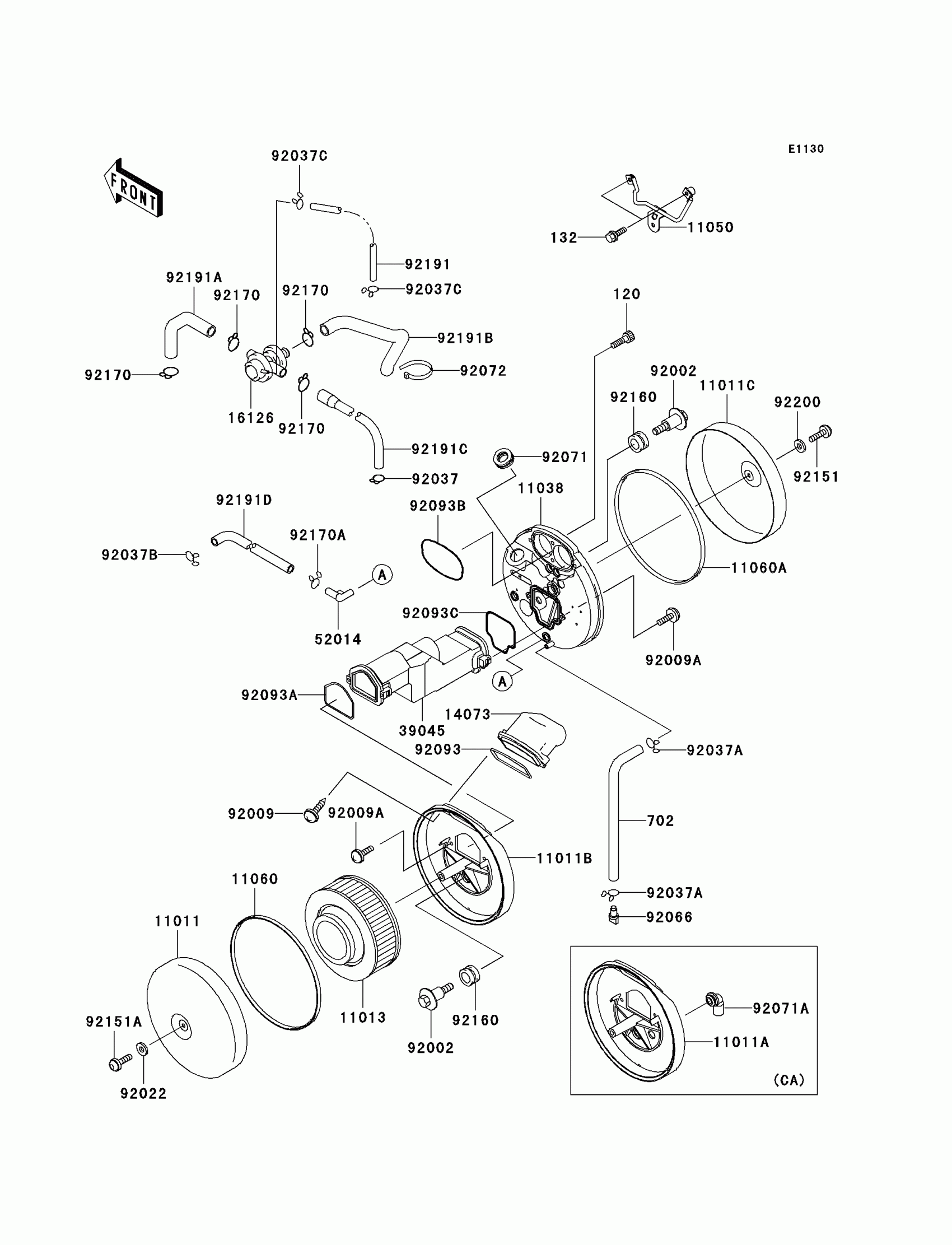

Kawasaki Vulcan 1500 Drifter Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,OUTSIDE

11011-1489

$94.31

11011C

CASE-AIR FILTER,OUTSIDE

11011-1576

Unavailable

11013

ELEMENT-AIR FILTER

11013-1248

$41.86

11038

CASE-ASSY-AIR FILTER,RH

11038-1121

Unavailable

11050

BRACKET,AIR FILTER,LH

11050-1510

$35.67

11060

GASKET,AIR FILTER CASE,LH

11060-1736

$14.75

11060A

GASKET,AIR FILTER CASE

11060-1968

$16.25

14073

DUCT,AIR FILTER

14073-1739

$36.31

16126

VALVE,AIR SWITCH

16126-1373

Unavailable

39045

DUCT-ASSY,CENTER

39045-1060

$142.51

52014

ELBOW

52014-1083

$7.71

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$9.94

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92009A

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.35

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$4.21

92037

CLAMP

92037-1468

$7.61

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1593

$5.42

92037C

CLAMP

92037-1712

$3.81

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET,AIR FILTER

92071-1028

$5.55

92072

BAND,L=202

92072-1195

$1.16

92093

SEAL,AIR FILTER CASE

92093-1408

$11.19

92093A

SEAL,DUCT,LH

92093-1459

$6.69

92093B

SEAL

92093-1485

Unavailable

92093C

SEAL,DUCT,RH

92093-1491

$6.69

92151

BOLT,8X14

92151-1438

$1.76

92151A

BOLT,6X14

92151-1503

$2.32

92160

DAMPER

92160-1594

$3.57

92170

CLAMP,TUBE

92170-1445

$4.34

92170A

CLAMP

92170-1695

$2.27

92191

TUBE,THROTTLE-VALVE

92191-1312

$10.54

92191A

TUBE,HEAD,FR-VALVE

92191-1359

$11.36

92191B

TUBE,VALVE-CLEANER

92191-1360

$22.90

120

BOLT-SOCKET,6X16

120S0616

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

702

TUBE-RUBBER

702A07260

$8.10

92191C

TUBE,HEAD,RR-VALVE

92191-1369

$24.39

92191D

TUBE,BREATHER

92191-1406

$28.47

92200

WASHER,8.5X20X1.6

92200-1463

$1.96

11011A

CASE-AIR FILTER,LH

11011-1533

$100.72

11011B

CASE-AIR FILTER,LH

11011-1570

$91.55

92071A

GROMMET,AIR FILTER

92071-1114

$23.73
