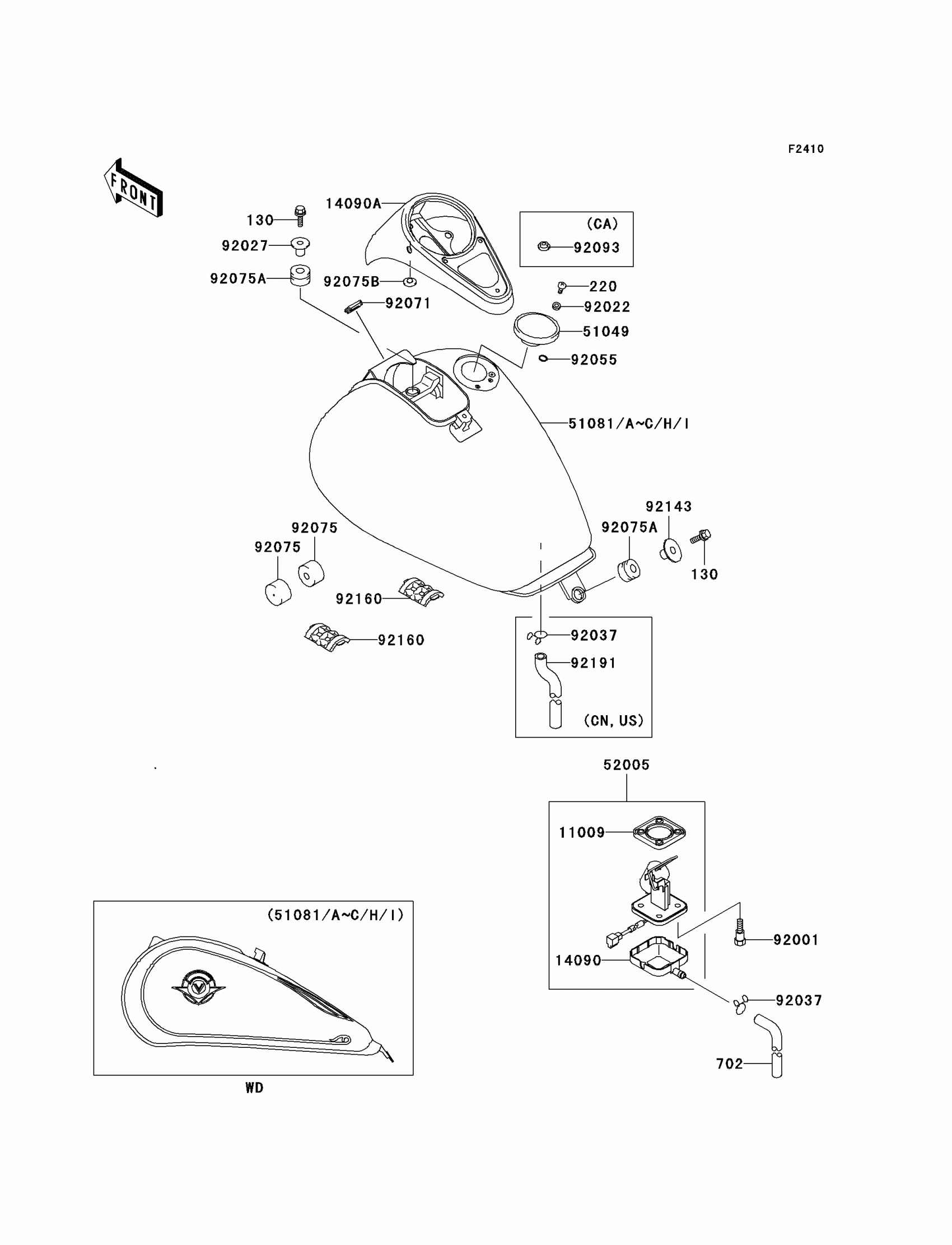

Kawasaki Vulcan 1500 Drifter Fuel Tank Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$16.00

14090A

COVER,METER

14090-1996

Unavailable

51049

CAP-TANK,FUEL

51049-1132

$112.77

52005

GAUGE,FUEL

52005-1129

$130.19

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER,5.1X10X1.0

92022-1977

$2.92

92027

COLLAR,L=19.3

92027-1780

$5.21

92055

RING-O

92055-1023

$3.12

92071

GROMMET

92071-1187

$3.94

92075

DAMPER,FUEL TANK

92075-125

$4.93

92075A

DAMPER

92075-1736

$5.21

92075B

DAMPER,RUBBER

92075-261

$3.85

130

BOLT-FLANGED,8X30

130H0830

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$10.53

92143

COLLAR

92143-1835

Unavailable

92160

DAMPER,FUEL TANK

92160-1907

$18.66

51081B

TANK-COMP-FUEL,P.B.BEIGE

51081-5207-X8

Unavailable

51081C

TANK-COMP-FUEL,D.T.GREEN

51081-5208-1M

Unavailable

51081H

TANK-COMP-FUEL,P.B.BEIGE

51081-5227-X8

Unavailable

51081I

TANK-COMP-FUEL,D.T.GREEN

51081-5228-1M

Unavailable

92037

CLAMP,TUBE

92037-147

$5.84

92037

CLAMP,TUBE

92037-147

$5.84

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92191

TUBE,DRAIN

92191-1272

$23.59
