2000 Kawasaki Vulcan 1500 Drifter Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

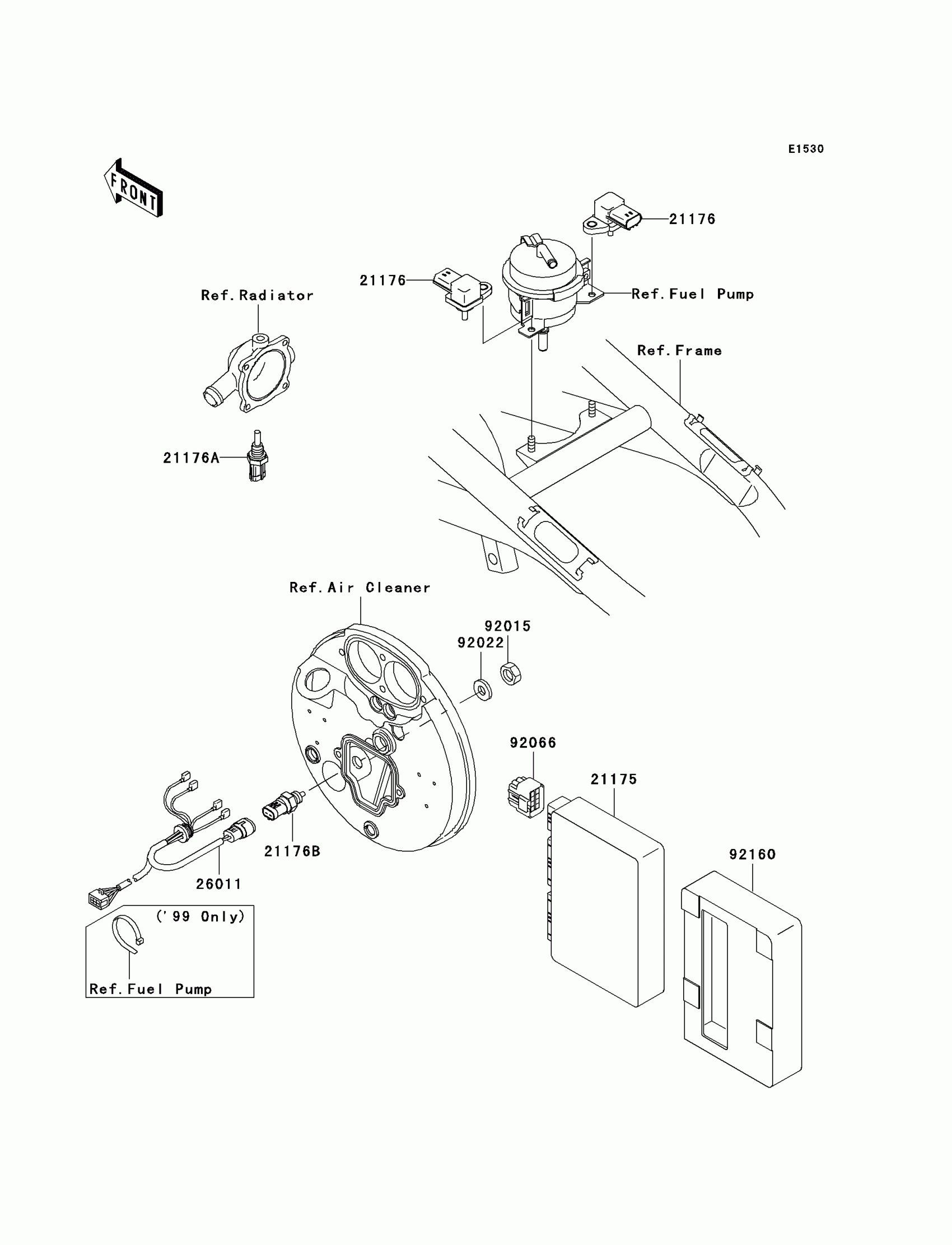

2000 Kawasaki Vulcan 1500 Drifter Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$1,289.82

In stock

21176

SENSOR,PRESSURE

21176-1084

1

$144.21

In stock

21176A

SENSOR,WATER TEMPERATURE

21176-1085

1
Out of stock

21176B

1

$71.58

In stock

26011

WIRE-LEAD

26011-1728

1
Out of stock

92015

NUT,12MM

92015-1395

1

$5.36

In stock

92022

WASHER,12.3X20X0.5

92022-269

1
Out of stock

92066

PLUG,COUPLER

92066-1521

1

$15.19

In stock

92160

DAMPER

92160-1965

1

$36.64

In stock
← Fuel Evaporative System Fuel Pump →
