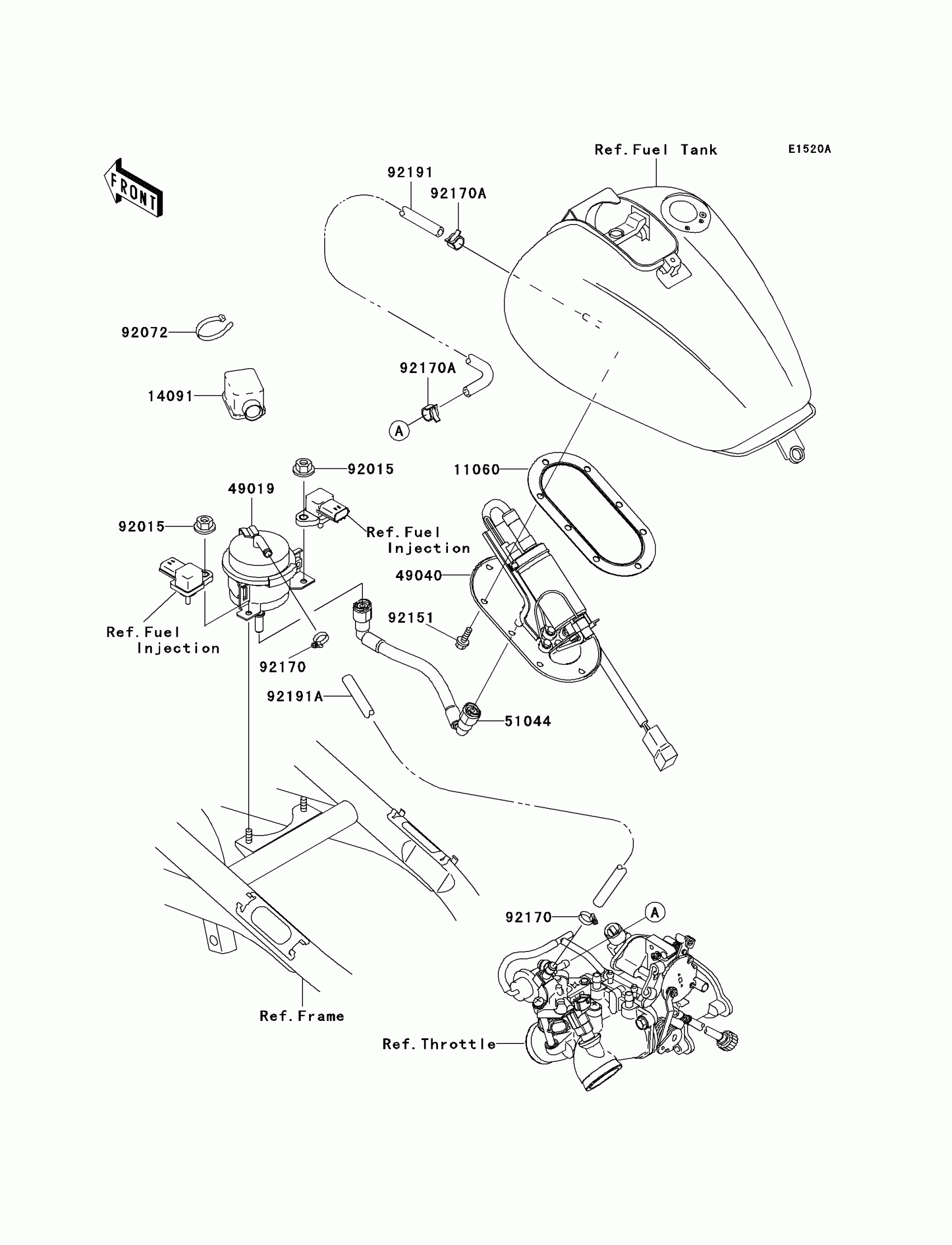

Kawasaki Vulcan 1500 Drifter Fuel Pump(VN1500-J2) Diagram

Description

Price

11060

GASKET

11060-1929

$50.54

14091

COVER

14091-1233

Unavailable

49019

FILTER-FUEL

49019-1089

Unavailable

49040

PUMP-FUEL

49040-1066

$745.07

51044

TUBE-ASSY

51044-1209

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92072

BAND,L=365

92072-1197

$7.71

92151

BOLT,5X12

92151-1599

$1.28

92170

CLAMP

92170-1278

$10.15

92170A

CLAMP

92170-1492

$3.97

92191

TUBE,RETURN

92191-1486

Unavailable

92191A

TUBE,7.5X13.5X190

92191-1504

Unavailable
