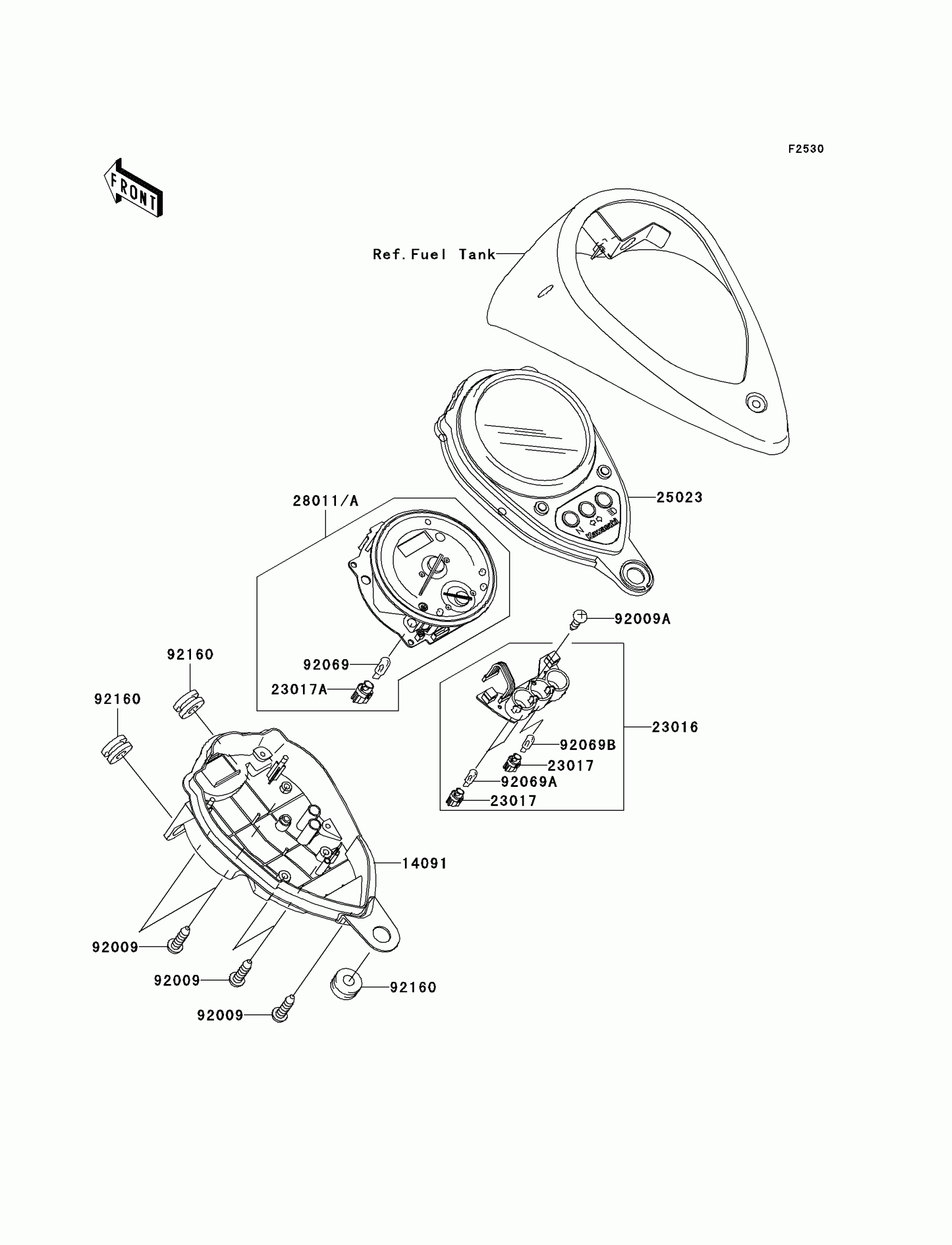

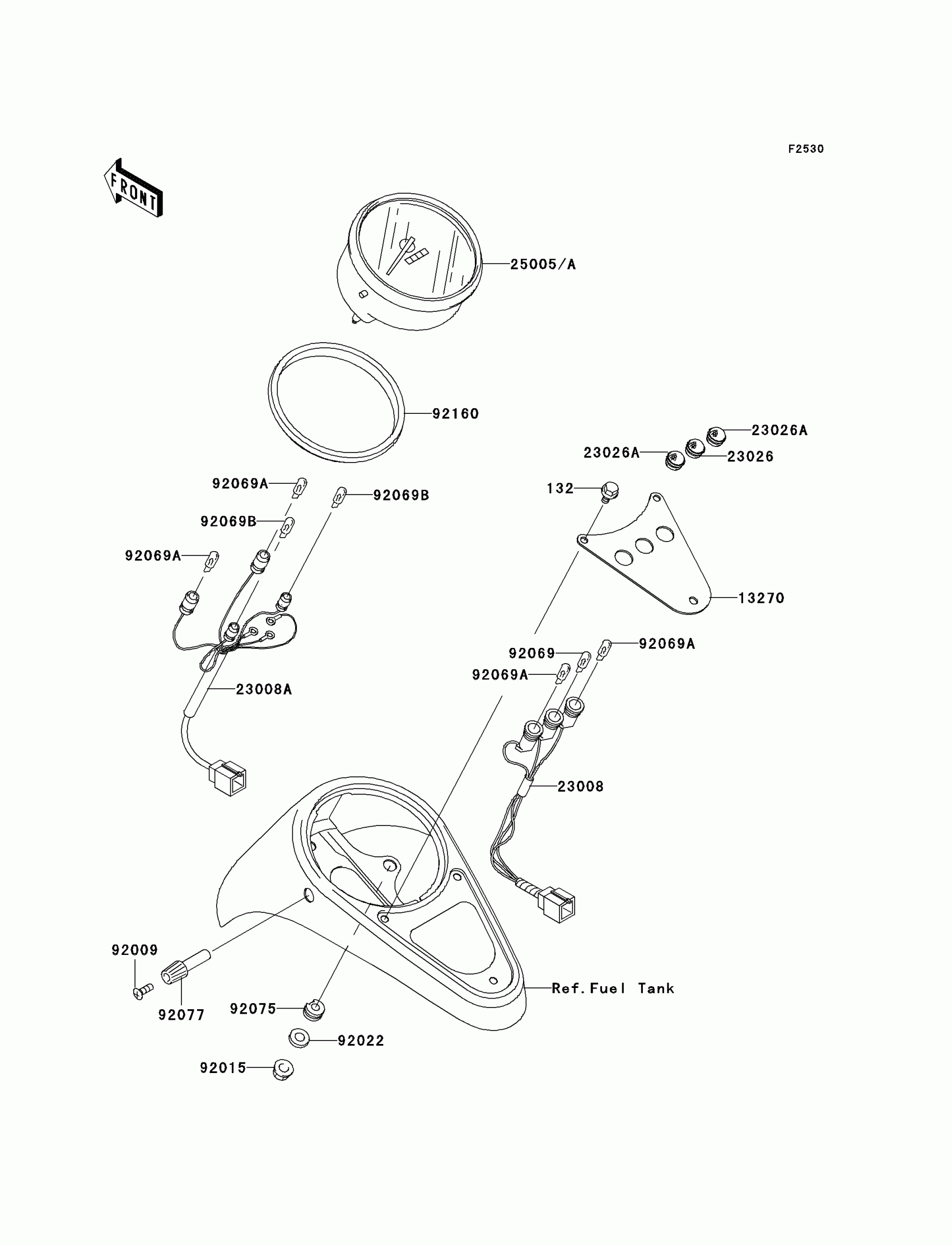

Find the part on the Meter diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki Vulcan 1500 Classic Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

13270

PLATE,PILOT LAMP

13270-1590

1
Out of stock

23008

1

$39.62

In stock

23008A

SOCKET-ASSY,METER

23008-1563

1
Out of stock

23026

LENS,GREEN

23026-1171

1

$5.11

In stock

23026A

LENS,RED

23026-1173

1

$5.88

In stock

92009

SCREW,3X8

92009-1799

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92069B

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92075

DAMPER,METER

92075-1209

1
Out of stock

92077

KNOB,TRIP

92077-1117

1

$33.79

In stock

92160

DAMPER,METER

92160-1713

1

$33.04

In stock

25005

SPEEDOMETER,MPH

25005-1603

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1604

1
Out of stock
