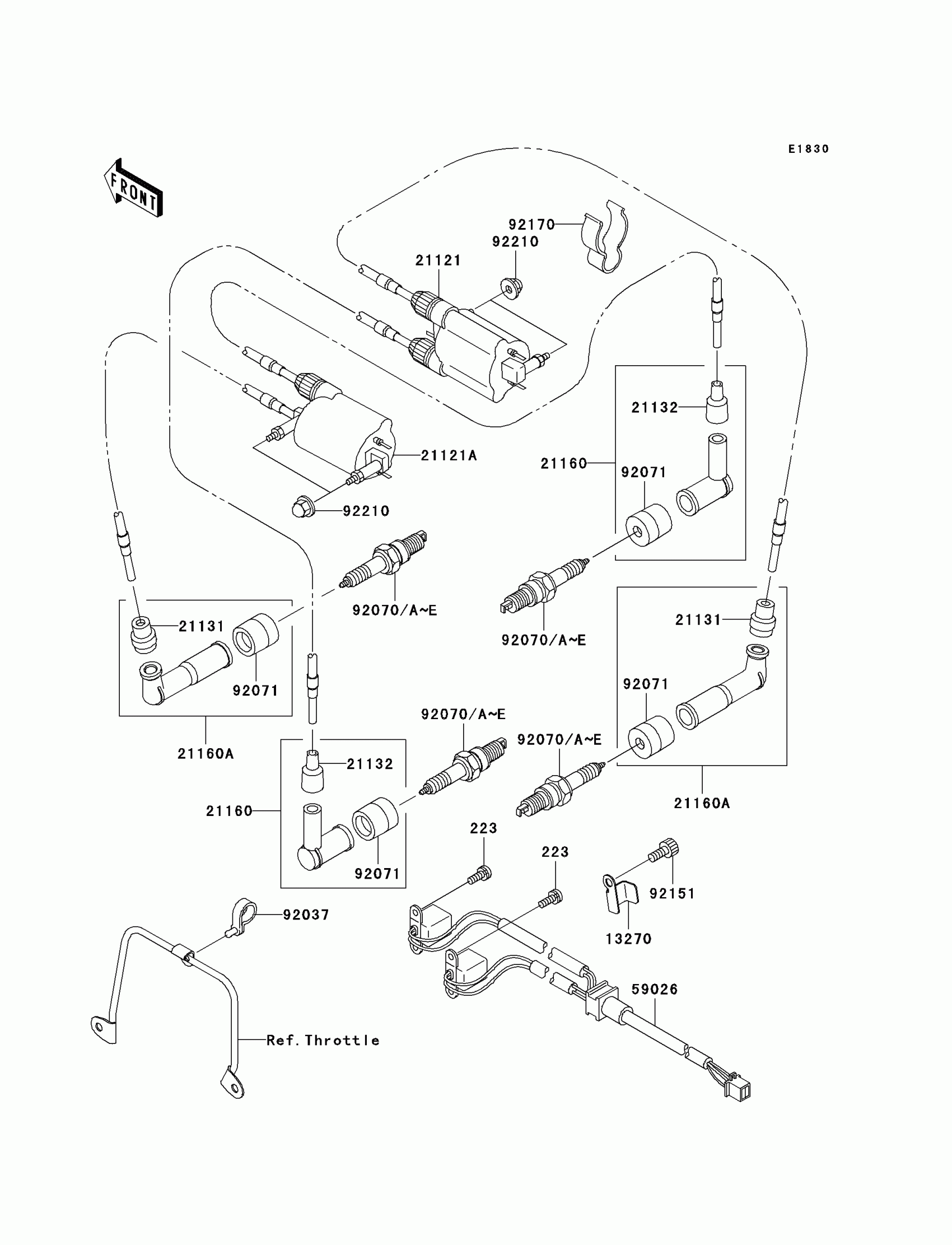

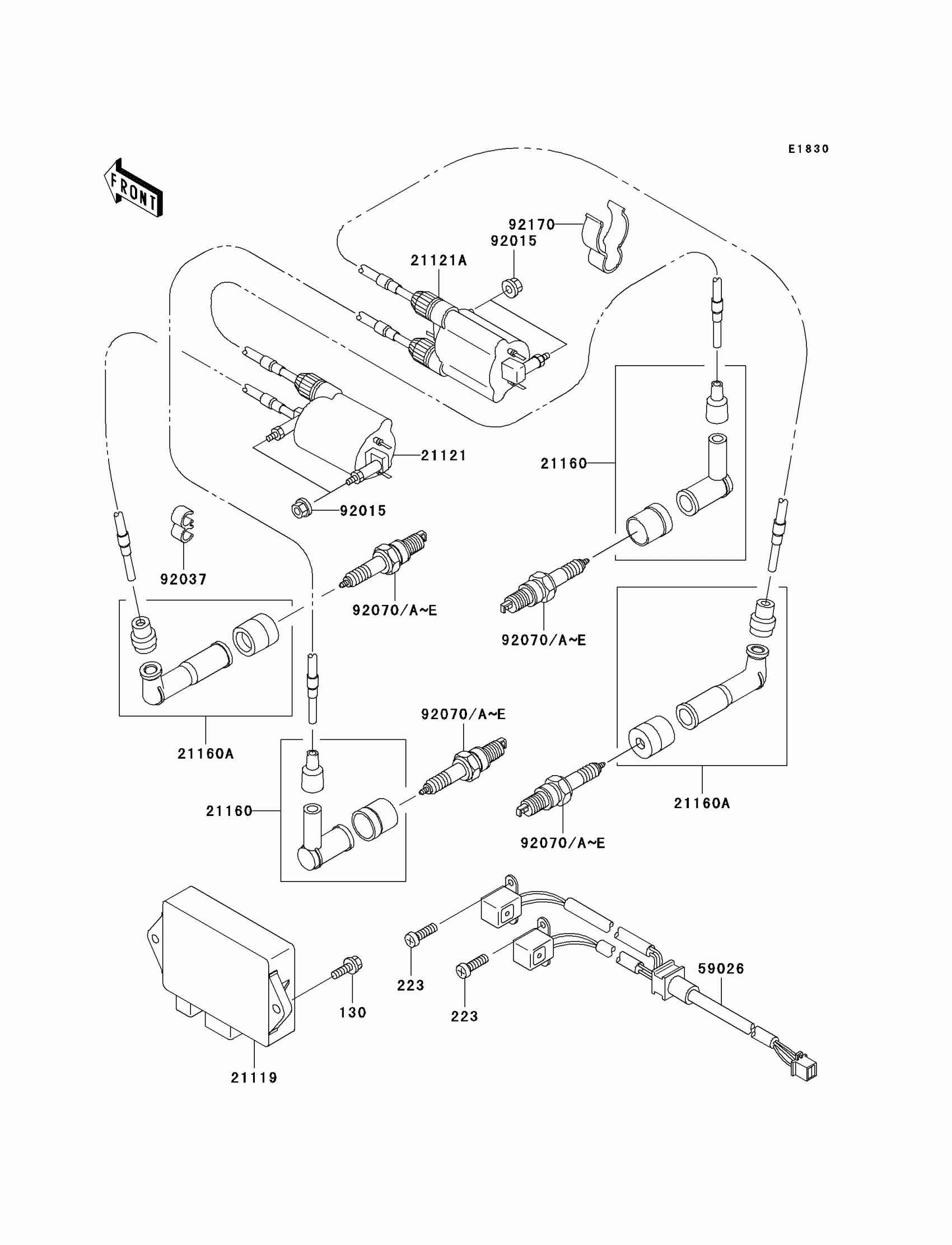

Kawasaki Vulcan 1500 Classic Ignition System Diagram

Description

Price

130

BOLT-FLANGED

130H0620

Unavailable

223

SCREW-PAN-WS-CROS,5X16

223B0516

Unavailable

21119

IGNITER

21119-1469

Unavailable

21121

COIL-IGNITION,FR

21121-1258

Unavailable

21121A

COIL-IGNITION,RR

21121-1259

$157.05

21160

CAP-ASSY-PLUG

21160-1085

$26.63

21160A

CAP-ASSY-PLUG

21160-1091

$28.00

59026

COIL-PULSING

59026-1138

$139.65

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,HOSE

92037-1603

$3.81

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

Unavailable

92070A

Not Available As Spare Part - Friction Washer

Unavailable

92070B

Not Available As Spare Part - Friction Washer

Unavailable

92070C

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

$2.63

92070D

PLUG-SPARK,DPR6EA9(NGK)

92070-1138

Unavailable

92070E

Not Available As Spare Part - Friction Washer

Unavailable

92170

CLAMP,HOSE

92170-1930

$9.56
