1997 Kawasaki Vulcan 1500 Classic Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

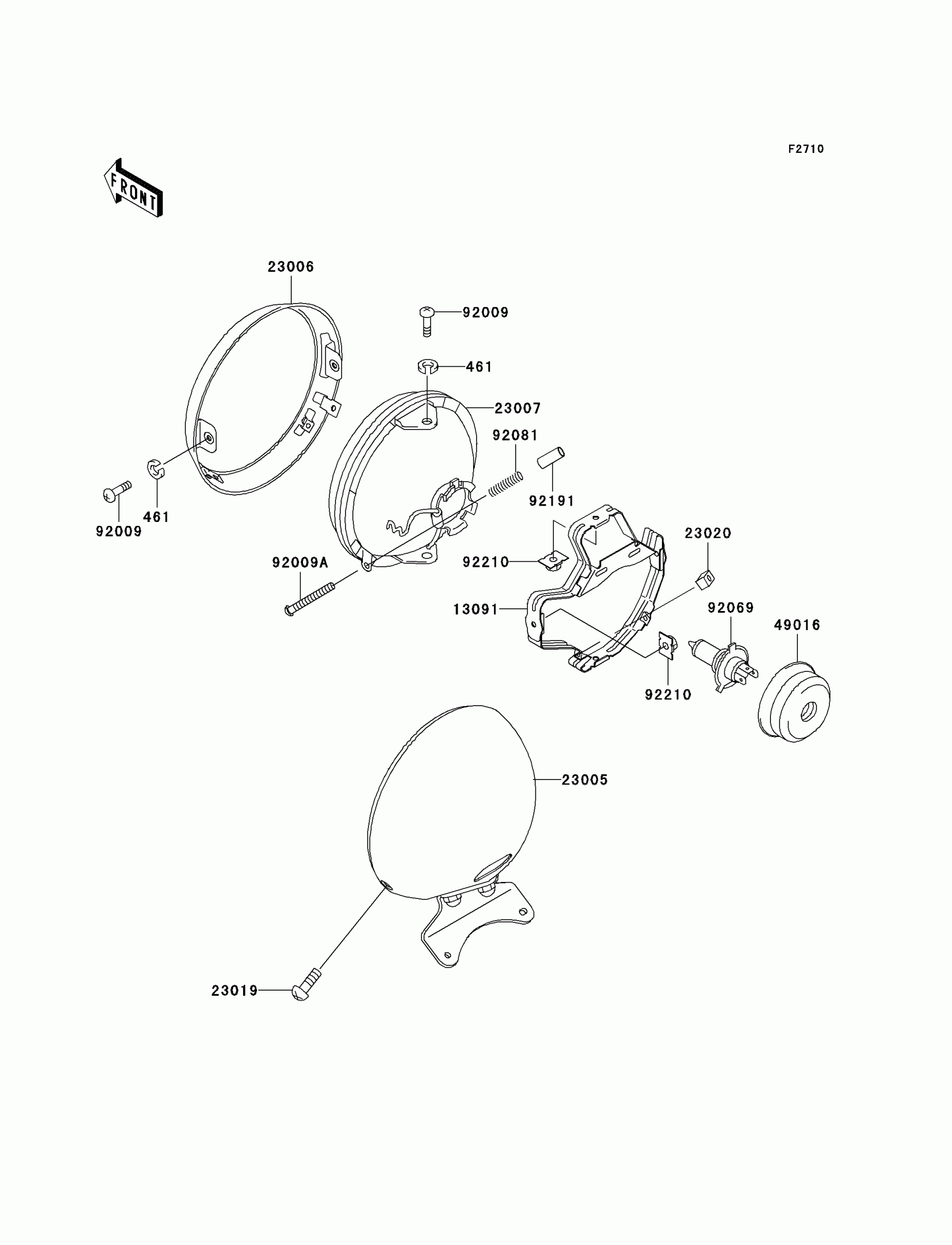

1997 Kawasaki Vulcan 1500 Classic Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

WASHER SPRING 5MM

461F0500

1
Out of stock

13091

HOLDER,HEAD LAMP

13091-1948

1

$57.25

In stock

23005

BODY-COMP-HEAD LAMP

23005-1152

1

$449.79

In stock

23006

RIM-LAMP

23006-1071

1

$93.26

In stock

23007

LENS-COMP,HEAD LAMP

23007-1338

1

$142.67

In stock

23019

SCREW,SPECIAL,5X14

23019-022

1

$1.78

In stock

23020

1

$3.69

In stock

49016

1

$11.85

In stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92009A

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92081

1

$4.10

In stock

92191

TUBE,3.5X5.5X19

92191-1217

1

$2.02

In stock

92210

NUT,SPECIAL,5MM

92210-1060

1
Out of stock
