1997 Kawasaki Vulcan 1500 Classic Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1997 Kawasaki Vulcan 1500 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

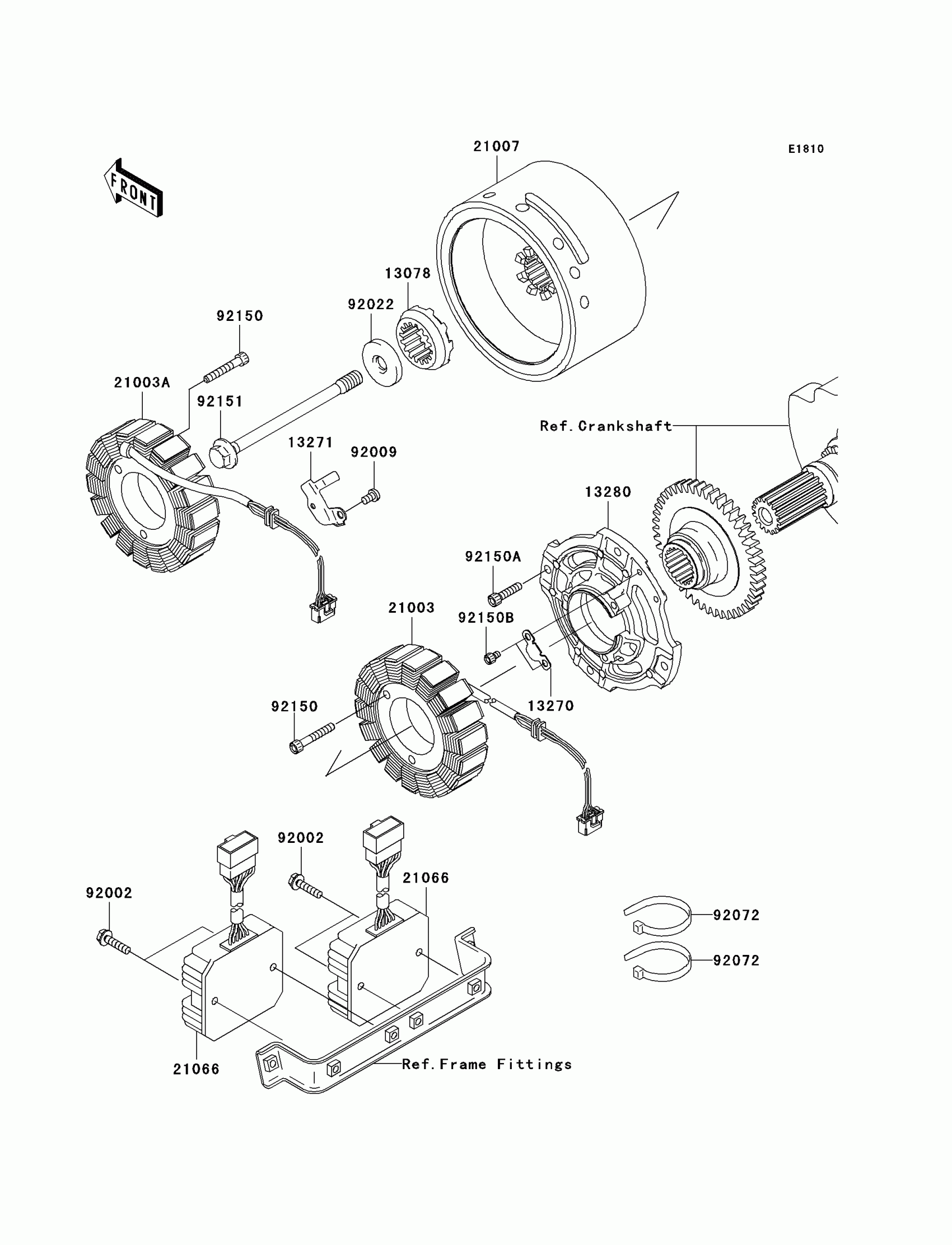

1997 Kawasaki Vulcan 1500 Classic Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13078

RATCHET

13078-1056

1

$67.67

In stock

13270

PLATE

13270-1727

1
Out of stock

21003

STATOR

21003-1301

1

$671.02

In stock

21007

ROTOR,GENERATOR

21007-1308

1

$572.42

In stock

21066

REGULATOR-VOLTAGE

21066-1106

1

$266.06

In stock

92002

BOLT,FLANGED,6X25

92002-1086

1

$4.37

In stock

92002A

BOLT,GENERATOR,12X112

92002-1901

1
Out of stock

92009

SCREW

92009-1768

1
Out of stock

92022

WASHER,12X40X6

92022-1904

1
Out of stock

92150

BOLT,SOCKET,6X35

92150-1484

1

$4.93

In stock
