2001 Yamaha VT500XLF 8DX3 Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

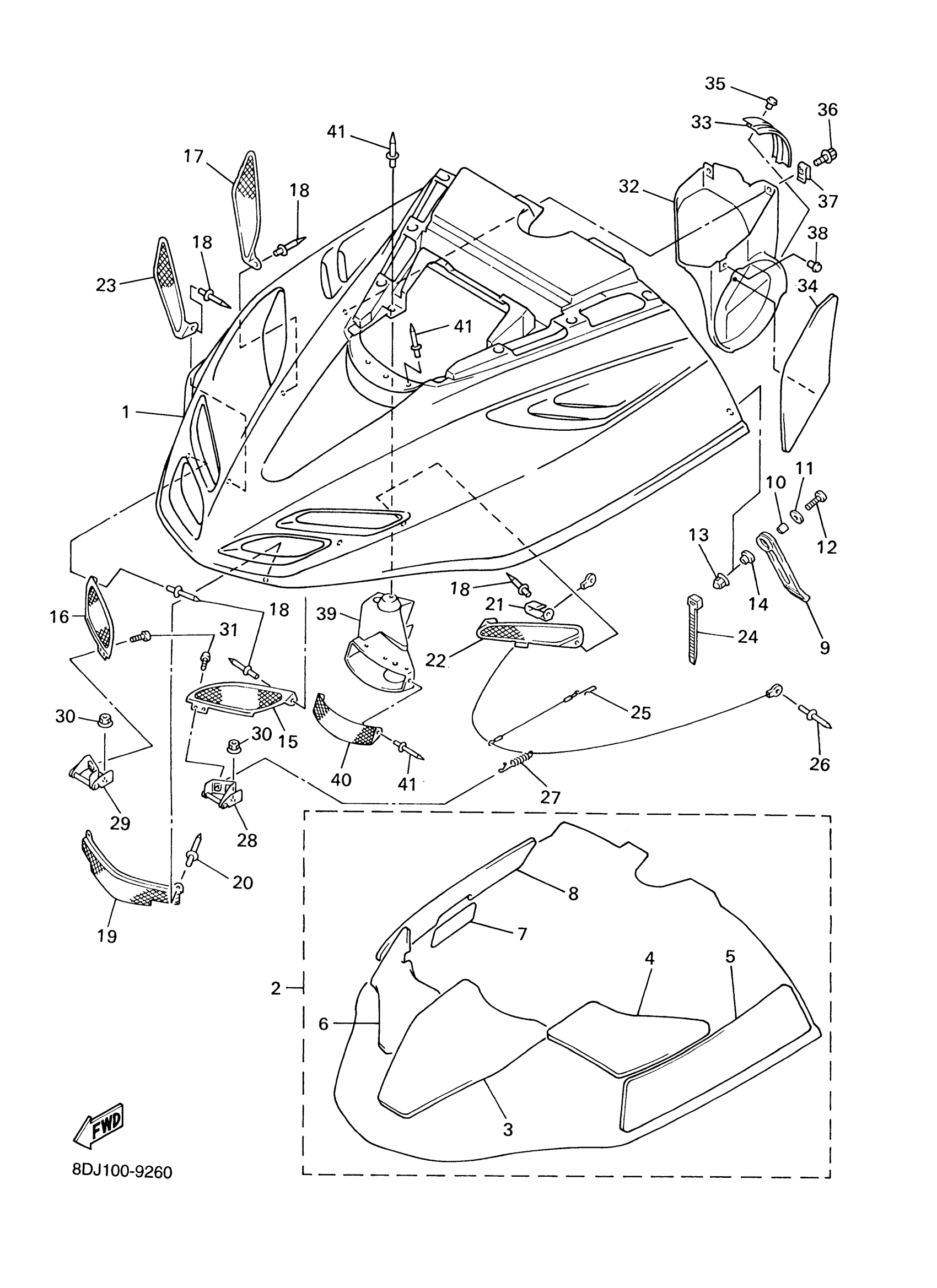

2001 Yamaha VT500XLF 8DX3 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

8DX-77111-10-00

1
Out of stock

2

LINING SET

8DJ-W7726-00-00

1
Out of stock

3

DAMPER, NOISE 12

8DJ-77272-00-00

—

$30.26

In stock

4

DAMPER, NOISE 15

8DJ-77275-00-00

—

$9.66

In stock

5

DAMPER, NOISE 16

8CR-77276-00-00

—

$14.71

In stock

6

DAMPER, NOISE 18

8DJ-77278-00-00

—

$37.03

In stock

7

TAPE 1

8DJ-7717E-00-00

—

$5.20

In stock

8

. SHIELD, HEAT

8DJ-2199H-00-00

1
Out of stock

9

BODY, LATCH 1

8V0-77171-00-00

1

$18.37

In stock

10

COLLAR (420)

90387-06241-00

1

$6.18

In stock

11

WASHER, PLATE

90201-06557-00

1

$2.75

In stock

12

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

13

NUT, CROWN(1FN)

90176-06055-00

1

$3.89

In stock

14

C0LLAR

90387-062M9-00

1
Out of stock

15

LOUVER 1

8CR-77131-00-00

1
Out of stock

16

LOUVER 2

8CR-77132-00-00

—
Out of stock

17

LOUVER 3

8DJ-77133-00-00

—

$29.80

In stock

18

RIVET, BLIND(8CJ)

90267-48182-00

—

$1.78

In stock

19

LOUVER 4

8CR-77134-00-00

—
Out of stock

20

RIVET, BLIND (8L0)

90267-48059-00

—

$2.46

In stock

21

CLAMP(51Y)

90465-08277-00

—
Out of stock

22

LOUVER 1

8DJ-77441-00-00

1
Out of stock

23

LOUVER 2

8DJ-77442-00-00

—

$26.85

In stock

24

CLAMP

90464-13077-00

—

$6.68

In stock

25

STOPPER, SHROUD

8DJ-77118-00-00

1
Out of stock

26

RIVET, BLIND

90267-48018-00

—

$7.35

In stock

27

CLAMP, ROD

89A-77159-00-00

—

$9.75

In stock

28

HINGE ASSY

8CR-77140-00-00

1
Out of stock

29

HINGE ASSY 2

8CR-7714A-00-00

—

$21.11

In stock

30

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

31

SCREW, BINDING

98907-06014-00

—

$5.60

In stock

32

DUCT

8DJ-77194-00-00

—
Out of stock

33

BUSH, RUBBER 1

8DJ-77515-00-00

1
Out of stock

34

DAMPER, NOISE 13

8DJ-77273-00-00

1
Out of stock

35

RIVET(81E)

90269-05055-00

—

$7.02

In stock

36

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

37

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

38

RIVET(4JH)

90269-07076-00

—

$6.00

In stock

39

DUCT

8CR-77194-00-00

—

$49.51

In stock

40

LOUVER 5

8CR-77109-00-00

1
Out of stock

41

RIVET, BLIND(8CJ)

90267-48182-00

—

$1.78

In stock
