2001 Yamaha VT500XLF 8DX3 Crankcase Diagram

← All diagrams

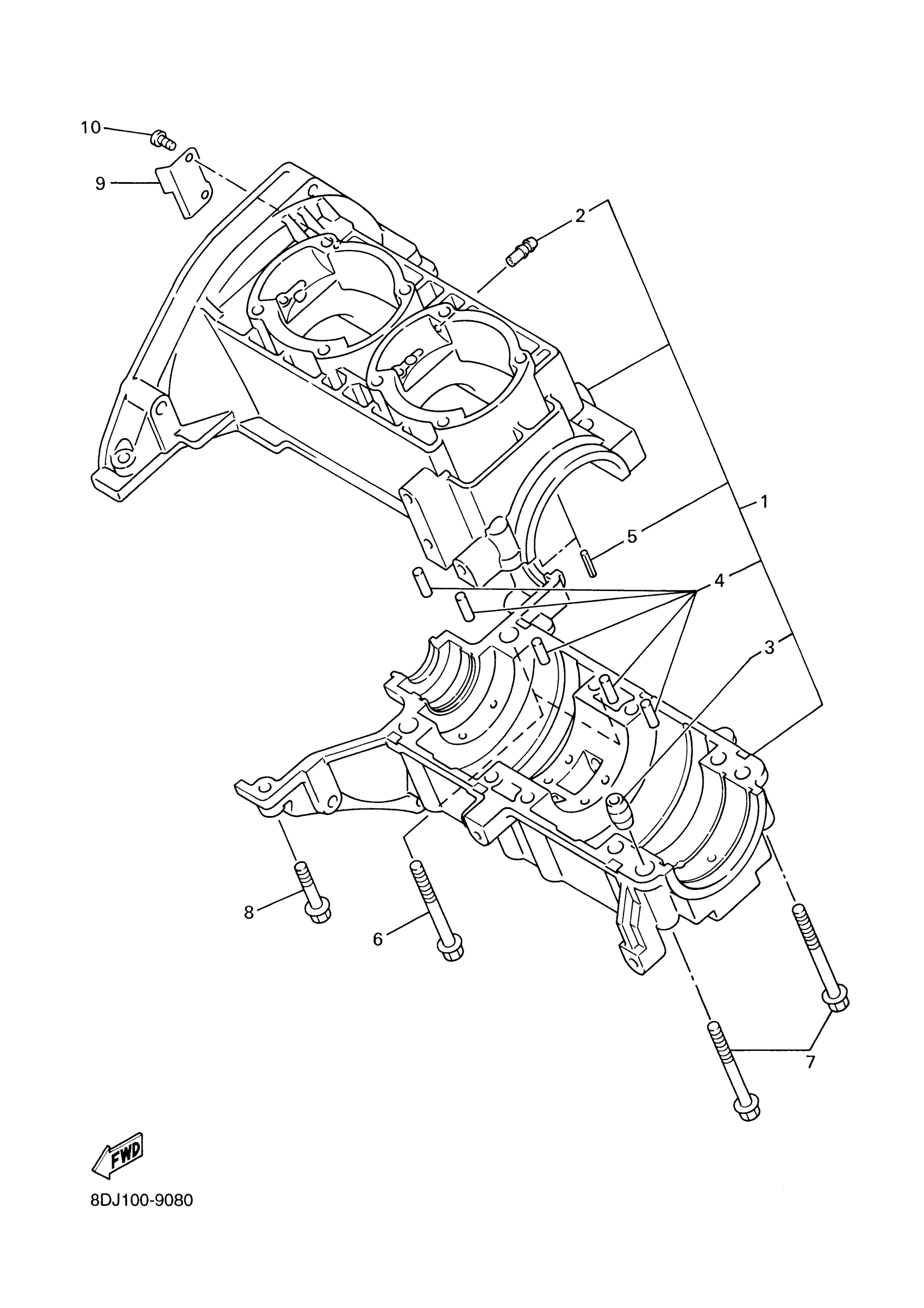

Find the part on the Crankcase diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VT500XLF 8DX3 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8DJ-15100-00-00

1
Out of stock

2

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock

5

PIN, SPRING(80K)

91609-30006-00

—

$0.17

In stock

6

BOLT, WASHER BASED

90105-08466-00

1
Out of stock

7

BOLT, WASHER BASED

90105-084A1-00

1

$9.38

In stock

8

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

9

CLAMP

90461-12145-00

—
Out of stock

10

SCREW, PAN

98517-06012-00

1

$3.14

In stock
