2001 Yamaha VT500XLF 8DX3 Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

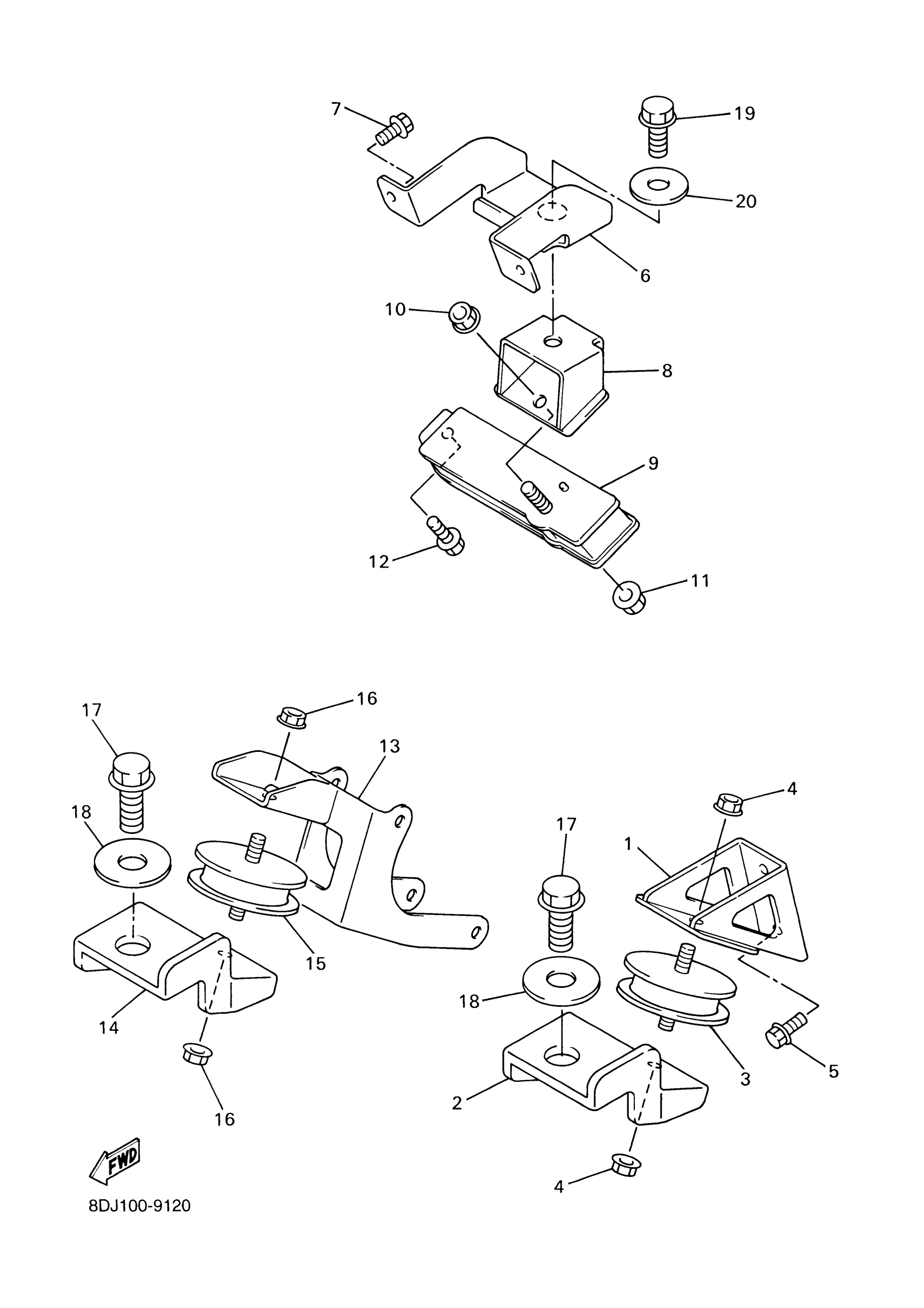

2001 Yamaha VT500XLF 8DX3 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

8DJ-21415-00-00

1
Out of stock

2

BRACKET, FRONT LOWER 1

8DJ-21417-00-00

—

$28.42

In stock

3

DAMPER 2

8DJ-21486-00-00

1

$31.89

In stock

4

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

5

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

6

BRACKET, REAR UPPER 1

8DJ-21425-00-00

—

$21.14

In stock

7

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

8

BRACKET, REAR LOWER 1

8DJ-21427-00-00

—

$22.69

In stock

9

DAMPER

8DJ-21488-00-00

1
Out of stock

10

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

11

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

12

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

13

BRACKET, FRONT UPPER 2

8DJ-21416-00-00

1

$107.42

In stock

14

BRACKET, FRONT LOWER 1

8DJ-21417-00-00

—

$28.42

In stock

15

DAMPER 2

8DJ-21486-00-00

1

$31.89

In stock

16

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

17

BOLT, FLANGE(JN5)

95817-12030-00

—

$7.02

In stock

18

WASHER, PLATE

90201-120U9-00

1
Out of stock

19

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

20

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock
