2001 Yamaha VT500XLF 8DX3 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

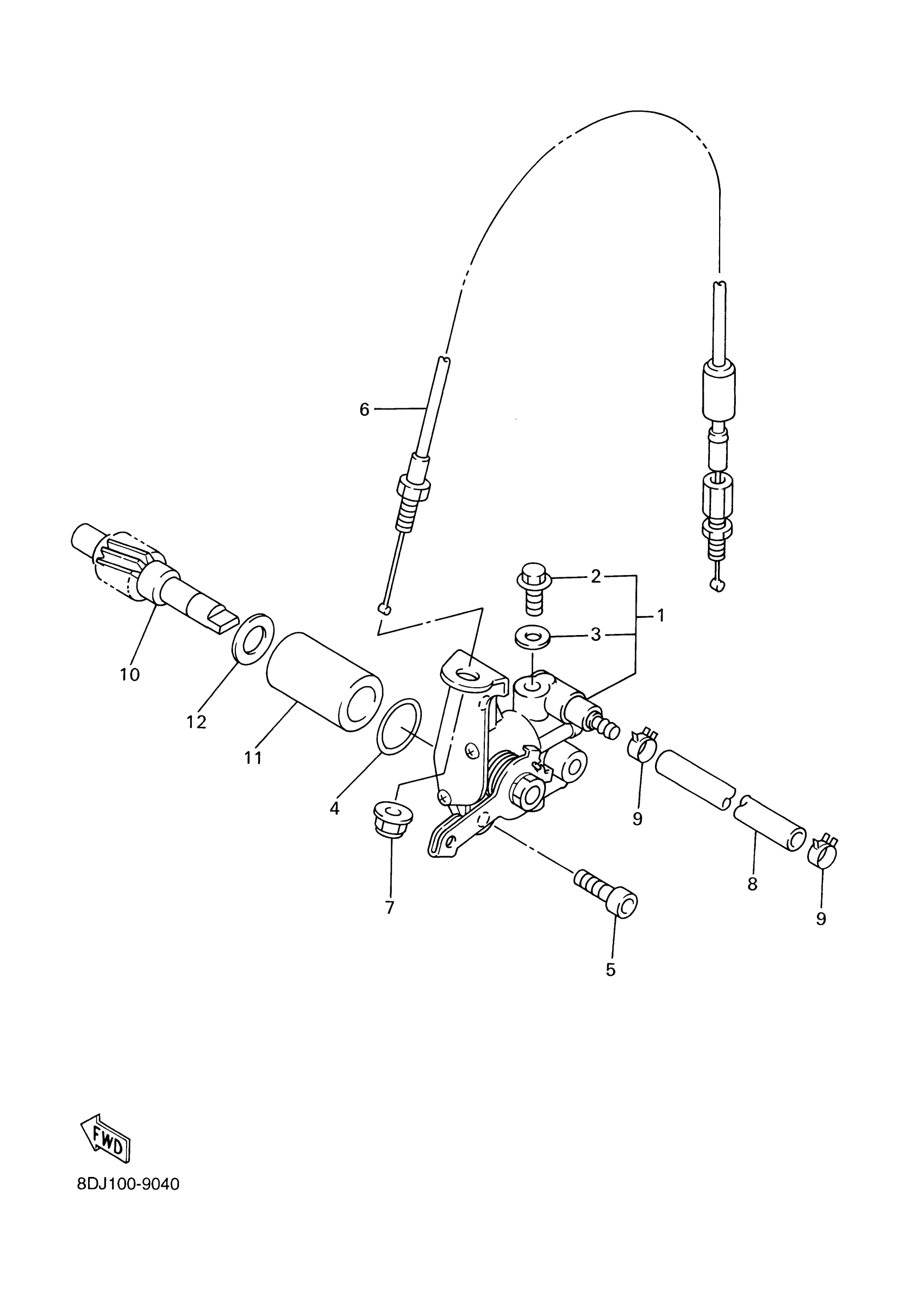

2001 Yamaha VT500XLF 8DX3 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

8DJ-13100-00-00

—
Out of stock

2

BOLT, BREATHER

89A-13185-00-00

—
Out of stock

3

. GASKET, BREATHER BOLT

89A-13187-00-00

1
Out of stock

4

O-RING(3SB)

93210-20712-00

1
Out of stock

5

BOLT,SOCKET

91317-05014-00

1
Out of stock

6

PUMP CABLE ASSY

8DJ-26320-01-00

1
Out of stock

7

NUT, NYLON

95717-08300-00

1
Out of stock

8

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1
Out of stock

9

CLIP (2A6)

90468-02025-00

1
Out of stock

10

GEAR, WORM WHEEL

8DJ-13124-00-00

1
Out of stock

11

METAL, WORM SHAFT OUTER

8DJ-13176-00-00

1
Out of stock

12

WASHER PLATE (3L6)

90201-08759-00

1
Out of stock
