1997 Suzuki VS800GLV Rear Combination Lamp Diagram

← All diagrams

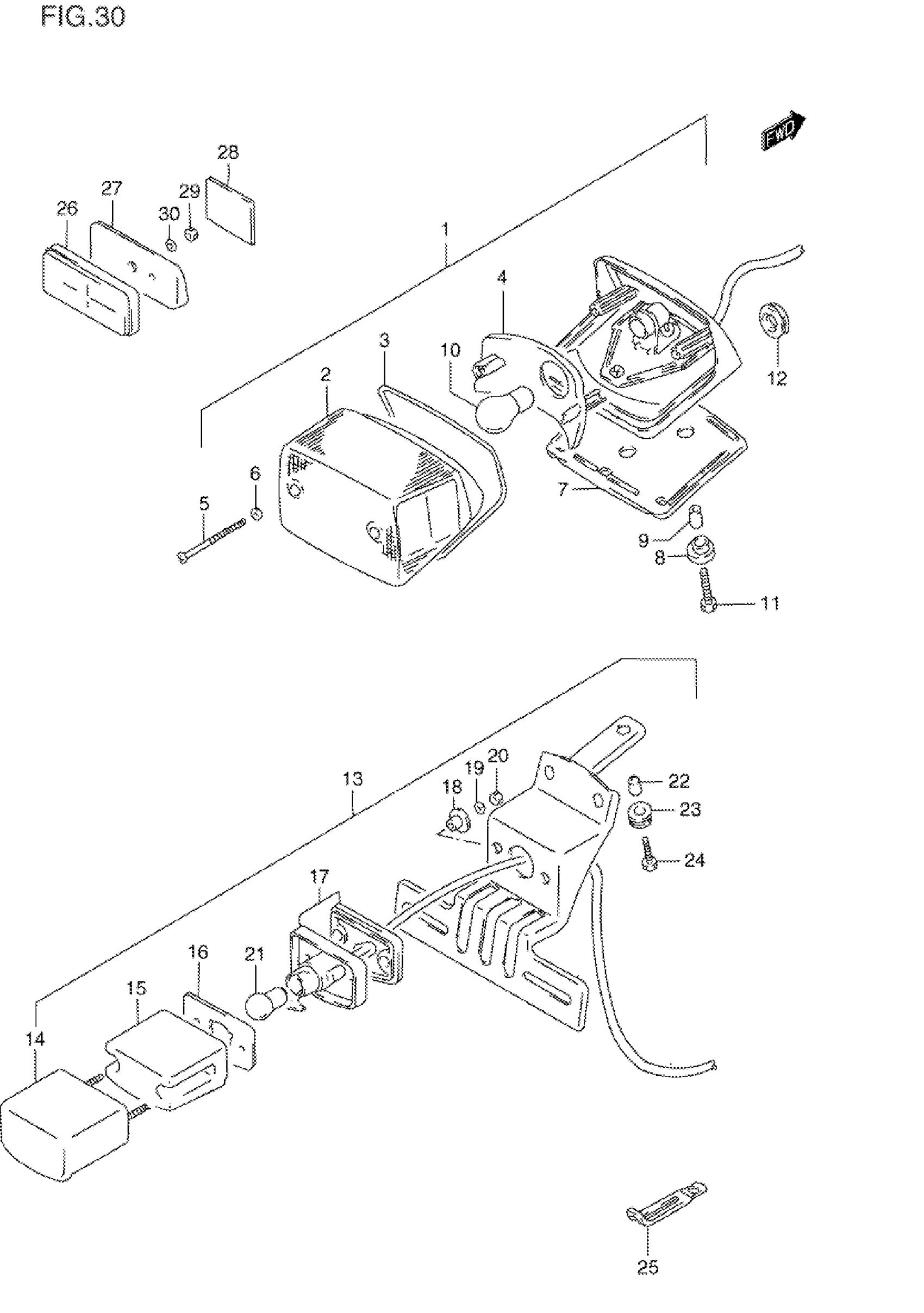

Find the part on the Rear Combination Lamp diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki VS800GLV Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-39A00-999

1
Out of stock

2

LENS

35712-38A30

1
Out of stock

3

GASKET This part replaces 35713-38A00.

35713-31D00

1
Out of stock

4

REFLECTOR

35714-38A00

1
Out of stock

5

SCREW

35723-44130

2
Out of stock

6

GASKET

35627-43010

2

$2.65

In stock

7

CUSHION

35765-38A00

1
Out of stock

8

CUSHION

35764-26470

3
Out of stock

9

SPACER

35766-37190

3
Out of stock

10

BULB (12V,21/5W)

09471-12128

1
Out of stock

11

BOLT (6X25) | MODEL N/P/R This part replaces 09116-06087.

09116-06047

3
Out of stock

11

BOLT | MODEL S/T/V

09116-06093

3
Out of stock

12

GROMMET

09308-09013

1
Out of stock

13

LAMP ASSY, LICENSE | Includes Item(s) 14 - 23

35910-38A33

1
Out of stock

14

COVER, LICENSE LAMP

35917-38A20

1
Out of stock

15

LENS

35912-38A30

1
Out of stock

16

GASKET

35913-38A30

1
Out of stock

17

HOUSING, LICENSE LAMP

35915-38A31

1
Out of stock

18

SPACER

35766-38A30

2
Out of stock

19

LOCK WASHER This part replaces 08321-01043.

08321-0104A

2
Out of stock

20

NUT

08310-00047

2
Out of stock

21

BULB (12V,8W)

09471-12141

1
Out of stock

22

SPACER

35766-38A00

3
Out of stock

23

CUSHION

35765-38A30

3
Out of stock

24

BOLT (6X20) | MODEL N/P/R This part replaces 09116-06065.

09116-06010

3
Out of stock

24

BOLT | MODEL S/T/V

09116-06010

3
Out of stock

25

CLAMP (L:60)

09404-06429

1
Out of stock

26

REFLEX REFLECTOR, REAR | MODEL N/P/R

35970-38B00

1
Out of stock

26

REFLEX REFLECTOR, REAR | MODEL S/T/V

35970-24D60

1
Out of stock

26

REFLEX REFLECTOR, REAR | CALIFORNIA ONLYMODEL N/P/R/S

35970-38A00

1
Out of stock

26

REFLEX REFLECTOR, REAR | CALIFORNIA ONLY,MODEL T/V

35970-44A00

1
Out of stock

27

SPACER | MODEL N/P/R/S/T This part replaces 35977-38B00.

35977-38B30

1
Out of stock

27

SPACER | MODEL V

35977-38B30

1
Out of stock

28

COVER

68262-38A00

1
Out of stock

29

NUT This part replaces 08310-00053.

08310-0005A

1
Out of stock

30

1

$1.97

In stock
