Partiron

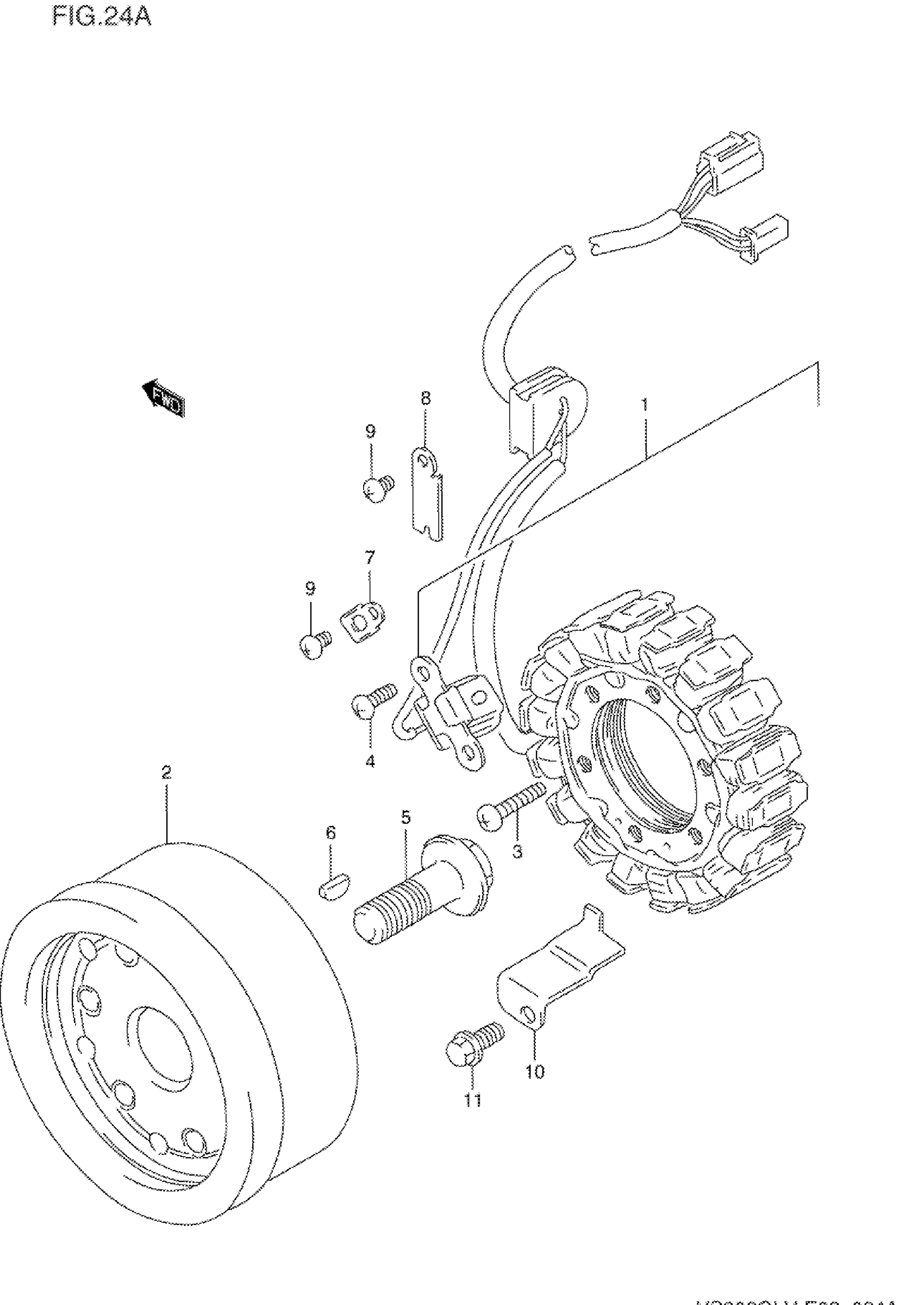

Suzuki VS800GLV (1997) MAGNETO (MODEL T/V) Diagram

#

Description
Price

1

STATOR

32101-45C00

$420.98

2

ROTOR

32102-38A30

Unavailable

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.80

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.46

5

BOLT

09103-14001

$12.85

6

KEY

09420-04008

$3.18

7

CLAMP

31497-45000

$2.17

8

CLAMP

32371-38A10

Unavailable

9

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.46

10

CLAMP

32371-45C00

$5.18

11

BOLT This part replaces 01547-06103.

01547-0610B

$2.56
