1997 Suzuki VS800GLV Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

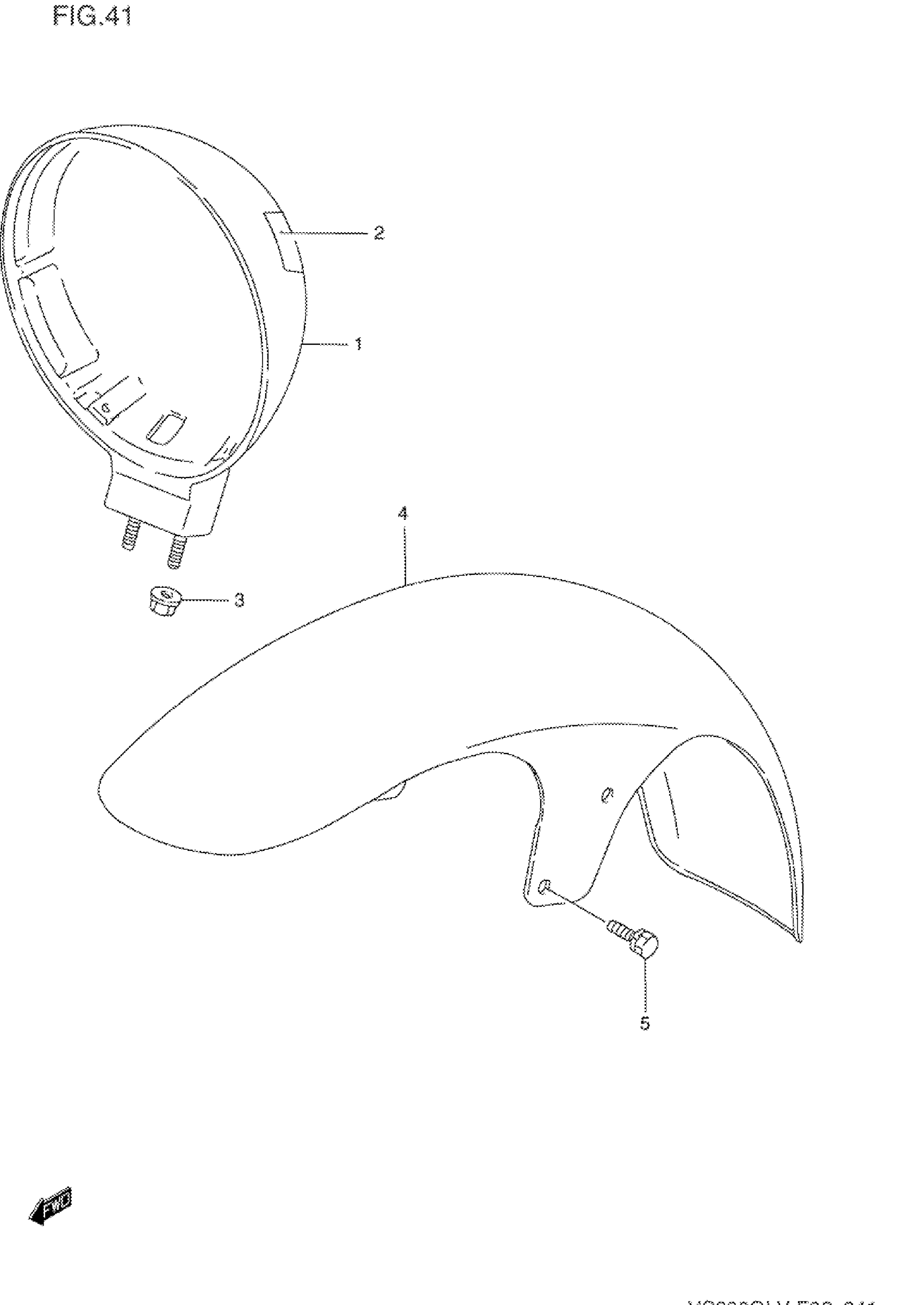

1997 Suzuki VS800GLV Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP | MODEL N/P/R This part replaces 51810-38A01.

51810-38A03

1
Out of stock

1

HOUSING, HEADLAMP | MODEL S/T/V This part replaces 51810-38A02.

51810-38A03

1
Out of stock

2

TAPE

47358-38A00

2
Out of stock

3

NUT | MODEL N/P/R

08319-31067

2
Out of stock

3

NUT | MODEL S/T/V This part replaces 08319-31063.

08319-3106A

2
Out of stock

4

FENDER,FR | MODEL N This part replaces 53110-38A00-03F.

53110-38A10-13L

1
Out of stock

4

FENDER,FR | MODEL N/P This part replaces 53110-38A00-19A.

53110-38A10-13L

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 53110-38A00-0CG.

53110-38A10-0CG

1
Out of stock

4

FENDER,FR | MODEL R/V This part replaces 53110-38A10-19A.

53110-38A10-13L

1
Out of stock

4

FENDER, FRONT (BLACK) | MODEL R/S/V This part replaces 53110-38A10-33J.

53110-38A10-YAY

1
Out of stock

4

FENDER,FR | MODEL S/T This part replaces 53110-38A10-20F.

53110-38A10-13L

1
Out of stock

4

FENDER, FRONT (GREEN) | MODEL T

53110-38A10-1ZV

1
Out of stock

5

BOLT | MODEL N/P

01570-06167

4
Out of stock

5

BOLT | MODEL R/S/T/V This part replaces 01570-06163.

01570-0616A

4
Out of stock
