1997 Suzuki VS800GLV Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

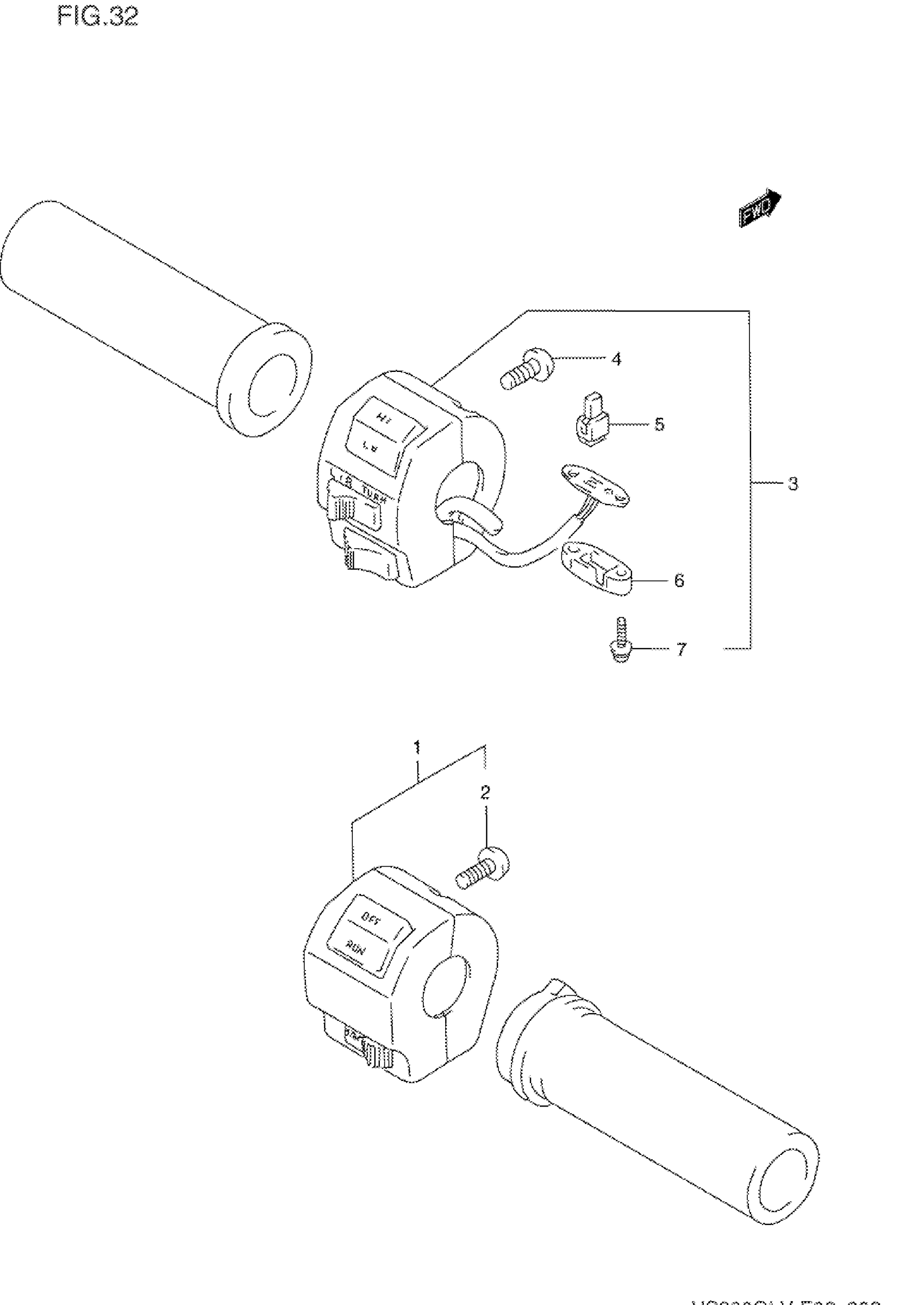

1997 Suzuki VS800GLV Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-39A70

1
Out of stock

2

SCREW This part replaces 37391-38A00.

02112-05167

2
Out of stock

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 - 7

37400-39A80

1
Out of stock

4

SCREW This part replaces 37391-38A00.

02112-05167

1
Out of stock

5

CONTACT

57465-18601

1
Out of stock

6

COVER

57481-38A10

1
Out of stock

7

SCREW

57484-38A00

2
Out of stock

8

REFER TO FIG.32A(E-16) FOR

SPECIAL NOTE

—
Out of stock
